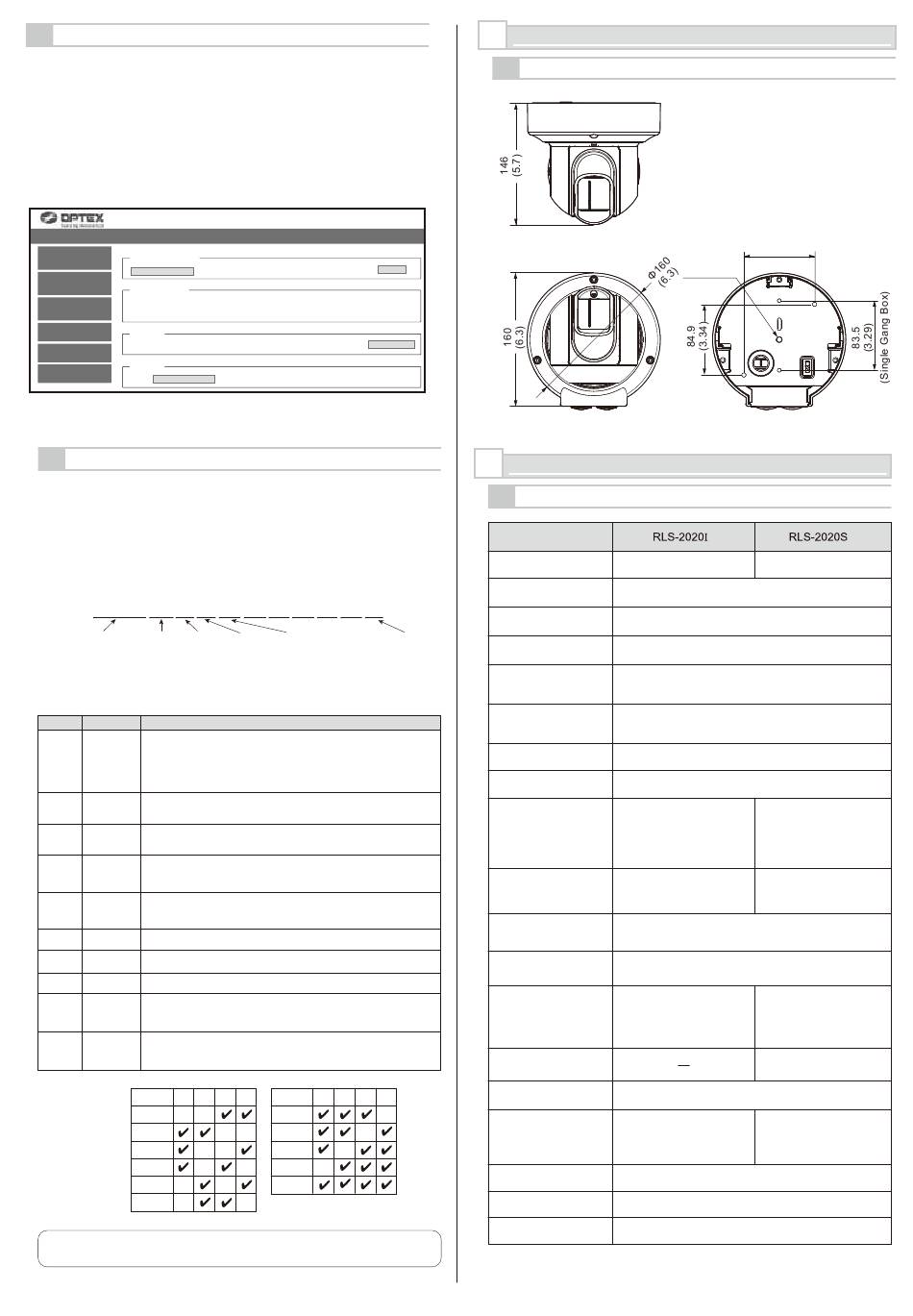

6-6

MAINTENANCE

• Update software
Can update the firmware of the unit. If necessary, click Choose File button to
select the firmware file, and push Update button.
• MAC address
Shows MAC addresses for Main Ethernet Port and Maintenance Port.
• License
Click to show licenses of free open source software.
• Reboot
Can reboot the unit.
REDSCAN mini Configuration Page
Output/Input
Update Software
Status
Select File Not Selected
Detection
Configuration
MAC Address
Main Ethernet Port
Network
Configuration
Maintenance Port
Network Options
License
Licence
Authentication
Reboot
Maintenance
Reboot
6-7 REDWALL EVENT CODE (R.E.C.)
< Purpose >
RLS-2020 generates original ASCII event codes which can be used by an NVR or
VMS software to control PTZ cameras and other devices.
< Communication methods >
REDWALL EVENT CODE can be sent to the assigned port using UDP or TCP
protocol. The default port number is "1234".
< Code format >
"RLS126 MO A1 AA CC DQ AR AM TR SO TA"
ID number of
Y1 Y2
the RLS-2020
Master Latest
alarm alarm
ID number of the RLS-2020 unit consist 6 bytes as follows.
RLS + 3 bytes number (Default number is the last group of the host IP address.)
Position Command
Any alarm zone are triggered, Master alarm code, "MO"
Y1 MO/CL
code is generated. And, "CL" code is generated 10
seconds after master alarm was cleared.
The time can be changed by setting software.
A1/A2
Y2 Latest alarm.
/B1/B2
AA-BB,
Y3 It shows detected areas by 11 patterns. *
EA-EB,AL
Multiple alarm.
Y4 CC
CC means that there are multiple detected areas.
Environmental disqualification circuit activates
Y5 DQ/dq
/ Environmental disqualification circuit status is restored.
Y6 AR/ar Anti-rotation function activates / Anti-rotation status is resotred.
Y7 AM/am Anti-masking function activates / Anti-masking status is restored.
Y8 TR/tr Trouble condition / Trouble condition restored.
Soiling on the laser window (Self checking function) /
Y9 SO/so
Soiling on the laser window status is restored.
Tamper circuit activates/ Tamper circuit status is restored
Y10 TA/ta/DM
/ "Heart beats" for device monitoring.
* Multiple alarm
R.E.C. B2 B1 A1 A2
AA
BB
BA
Ba
bA
ba
Note >>
Contact to OPTEX to get more detailed specifications of REDWALL Event Code.
RLS-2020 Version. 2.1.0 (07 aug2018)
Update
00:1f:d1:1d:00:b3
00:1f:d1:1d:00:b4
Show License
Y3 Y4 ......... Y10
Multiple Multiple Tamper
alarm alarm
Description
R.E.C. B2 B1 A1 A2
EA
Ea
Eb
EB
AL
7

DIMENSIONS

7-1 DIMENSIONS
8

SPECIFICATIONS

8-1 SPECIFICATIONS
Model
Installation location
Detection method
Laser protection class
Power input
Current draw
Mounting method
Detection area
Detection range
Detection resolution/
Response time
Mounting height
(Vertical mode)
Communication port
Protocol
Output
Input
Alarm period
Operating temperature
IP rating
Dimensions (H× W× D)
Weight
* Specifications and design are subject to change without prior notice.
EN-11
84.9
(3.34)
(4' Electrical Box)
1/4 -20UNC
Indoor Indoor/Outdoor
Infrared Laser Scan
Class 1
10.5-30 VDC, PoE (IEEE 802.3af/at compliant)
500 mA max. (12 VDC), 250 mA max. (24 VDC),
6 W max. (PoE)
Ceiling mount, Wall mount, Tripod mount,
Pole mount (Option), Recess mount (Option)
20 × 20 m (approx. 65 × 65 ft.), 95 degree
Radius 1 to 21 m (approx. 3.3 to 68 ft.) at 10% reflectivity
0.25 degrees
/ within 25 ms to 1 minute
0.25 degrees
0.125 degrees
/ within 75 ms to 1 minute
/ within 100 ms to 1 minute
(for indoor high resolution mode)
Indoor: 2 m (6.7 ft.) or higher
2 m (6.7 ft.) or higher
Outdoor: 4 m (13 ft.) or higher
(Recommended)
Ethernet RJ-45
10BASE-T/100BASE-TX (Auto negotiation)
TCP/IP, UDP/IP, DHCP, DNS, HTTP, HTTPS,
FTP, SNMPv1/v2c/v3, ICMP, ARP
3 outputs, 28 VDC 0.2 A 3 outputs, 28 VDC 0.2 A
max. N.O./N.C. Selectable max. N.O./N.C. Selectable
(3 from Master alarm, Zone (3 from Master alarm, Zone
alarm, Trouble, Tamper) alarm, Trouble, Tamper, DQ)
1 Non-voltage contact input
Approx. 2 second delay timer
-40°C to 50°C degree -40°C to 60°C degree
(-40°F to 122°F degree) (-40°F to 140°F degree)
* Refer to UL statement on
* Refer to UL statement on
the end of page 11.
the end of page 11.
IP66
146 × 160 × 160 mm (5.8 × 6.3 × 6.3 inch)
1.0 kg (2.2 Lbs)
Unit: mm (inch)
