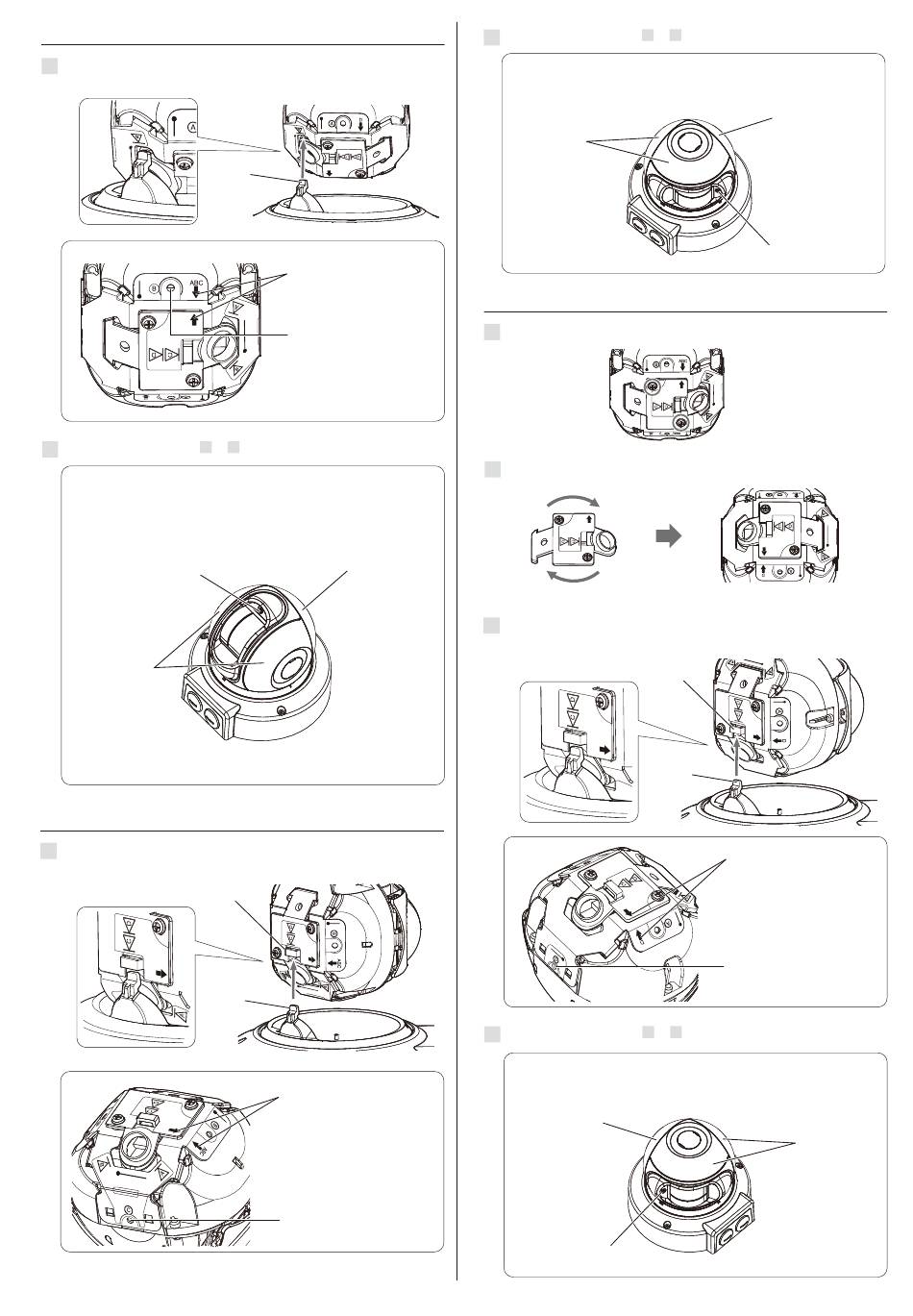

Optex Redscan Mini Installation Instructions Manual page 5

-Type B
Rotate the main unit and insert the hook of the base cover into the position
1
where the letter "B" is written on the wiring cover.
Note >>
Assemble parts just as step 2 to 3 for type A.
2
Note >>
The positions of the fixing screw and side cover are shown
below.
Fixing screw
Side cover S
-Type C
Rotate the main unit and insert the hook of the base cover into the slot of the
1
wiring cover.
Slot of the wiring cover
Hook
Note >>
Hook
Before assembling, confirm
the arrow mark on the wiring
cover and the same with
ABC on the main unit face
each other.
Then, place the main unit on
the base unit, so as to match
the screw hole of the main unit
and the one at the center of
the base cover as indicated.
Side cover L
Before assembling, confirm
the arrow mark on the wiring
cover and the same with
ABC on the main unit face
each other.
Then, place the main unit on
the base unit, so as to match
the screw hole of the main unit
and the one at the center of
the base cover as indicated.
2 Assemble parts just as step 2 to 3 for type A.
Note >>
The positions of the fixing screw and side cover are shown
below.
Side cover S
-Type D
Loosen 2 screws and remove the wiring cover.
1
Rotate the wiring cover by 180 degrees and replace it.
2
Rotate the main unit and insert the hook of the base cover into the slot of the
3
wiring cover.
Slot of the wiring cover
Note >>
4 Assemble parts just as step 2 to 3 for type A.
Note >>
The positions of the fixing screw and side cover are shown
below.
Side cover L
Fixing screw
EN-5
Side cover L
Fixing screw
Hook
Before assembling, confirm
the arrow mark on the wiring
cover and the same with D
on the main unit face each
other.
Then, place the main unit on
the base unit, so as to match
the screw hole of the main unit
and the one at the center of
the base cover as indicated.
Side cover S
