3

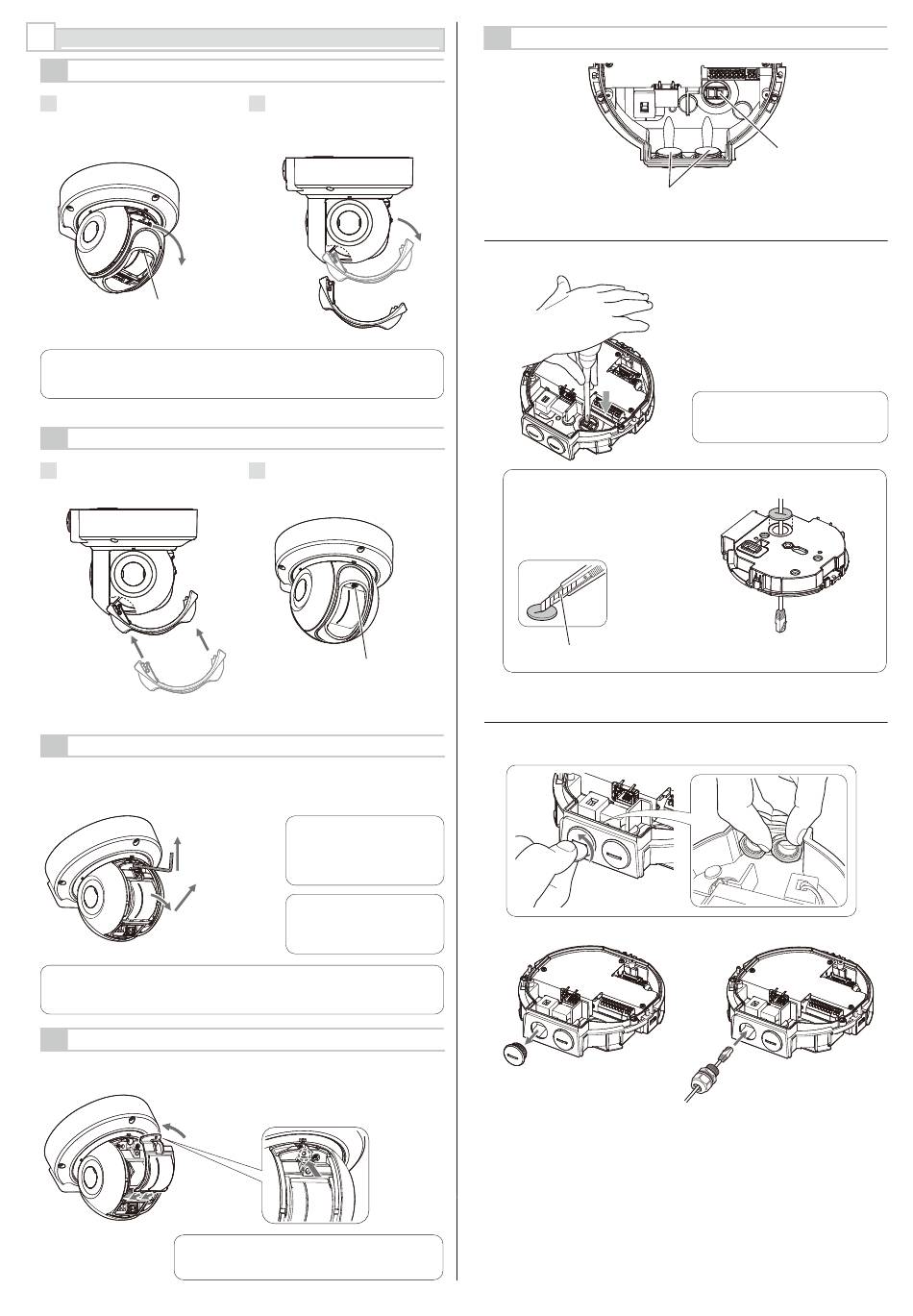

BEFORE INSTALLATION
3-1
REMOVING THE FRONT COVER
Loosen the screw on the front
1
cover and pull the front cover
forward with a snap.
2. Pull the cover
forward.
1. Loosen the screw.
Note >>
The procedure to open the front cover is required when connecting the LAN cable to
the maintenance port. (refer to 5-6)
3-2
MOUNTING THE FRONT COVER
Snap the front cover into the main
1
unit.
3-3
REMOVING THE LASER WINDOW
As shown in the figure below, use the supplied allen key to put out the hook
upward in a leverage motion.
1. Use the allen key
to remove the
hook.
2. Open it slightly
and then pull
out upward.
Caution >>
Do not touch the laser window exept it's frame.
Do not touch inside.
3-4
MOUNTING THE LASER WINDOW
As shown in the figure below, insert the foot of the laser window until it clicks.
2. Push the unit until it clicks.
1. Insert the hook.
Caution >>
Be sure to turn OFF the power supply when mounting
or removing the laser window.
Rotate the front cover at opposite
2
side of the screw upward and
remove the hooks (x2).
Tighten the screw.
2
Tighten the screw.
Note >>
The laser window needs to be
removed when pressing the
reset button or replacing it.
Caution >>
Be sure to turn OFF the
power supply when mounting
or removing the laser window.
3-5
WIRING CABLE ENTRY
-Wiring hole on the back side
Use a screwdriver to open a knockout.
Note >>
When performing wiring on the
back side, Apply the supplied
packing on the depression on
the back side of base.
Make a slit with a cutter.
-Wiring hole on the side
Remove the blanking caps of the wiring holes on the side using a tool such as a
coin.
1.
EN-6
1 knockout
2 wiring holes
Caution >>
Be sure to open a knockout to the
downward direction.
Pass the wiring through the slit of
the packing.
2.
