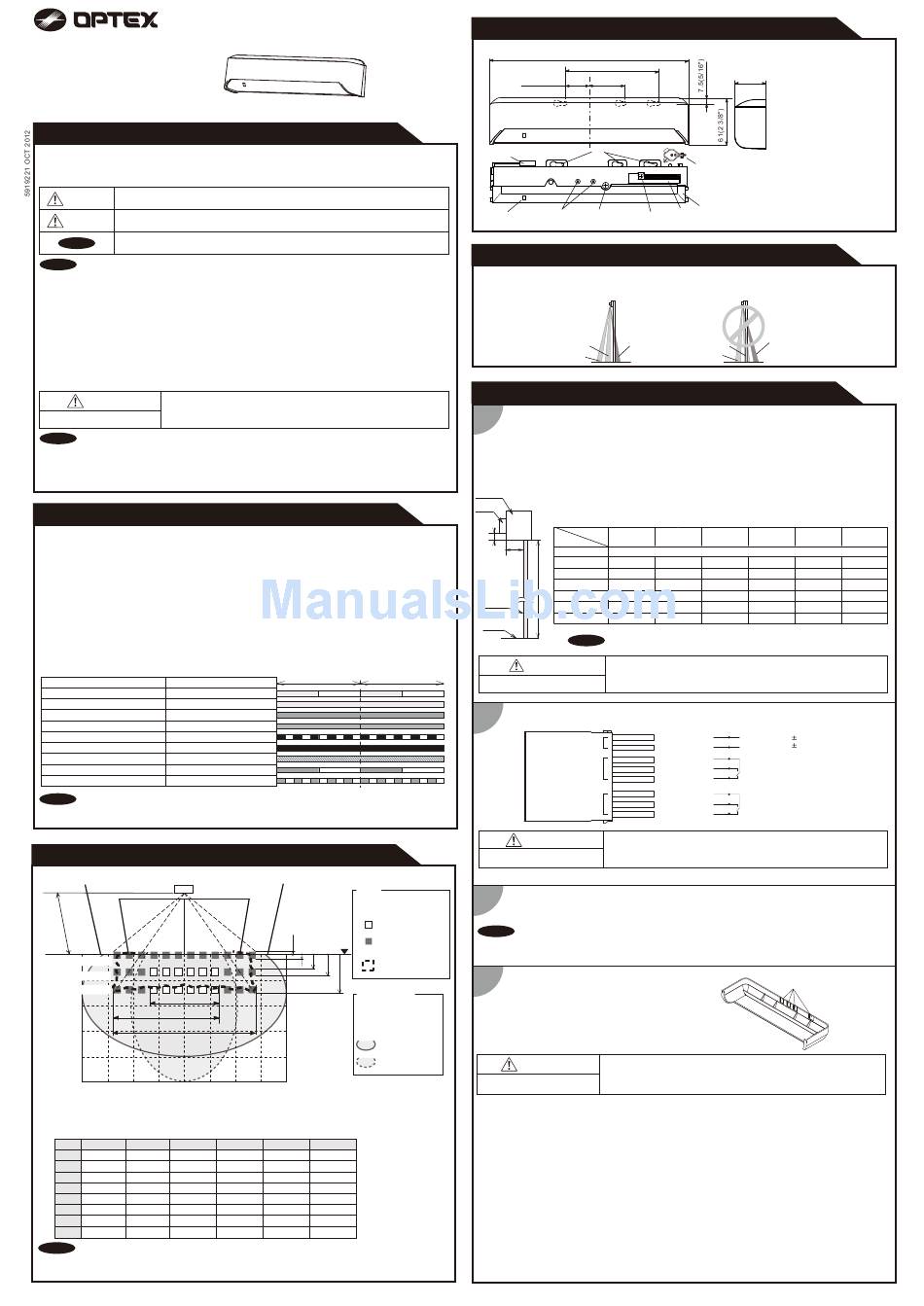

X-ZONE

MANUFACTURER'S STATEMENT

MANUFACTURER'S STATEMENT
Read this operation manual carefully before use to ensure proper operation of this product.
Failure to read this operation manual may cause improper operation and may result in serious injury or death of
a person.The meanings of the symbols are as follows.
Disregard of the warning symbol can cause improper operation which may cause death
WARNING
or serious injury.
Disregard of the caution symbol can cause improper operation which may cause injury of a
CAUTION
person or damage the object.
NOTE Special attention is required to the section of this symbol.
NOTE
1. This product is a non-contact switch intended for header mount or wall mount for use on an automatic sliding door.
Do not use for any other applications.
2. When setting the sensor's detection area, make sure that there is no traffic around the installation site.
3. Before turning the power ON, check the wiring to prevent damage or malfunction of equipment connected to
the product.
4. Only use the product as specified in the operation manual provided.
5. Be sure to install and adjust the sensor in accordance with the local laws and standards of the country in which
the product is installed.
6. Before leaving the installation site make sure that the product is operating properly and instruct the building
owner/operator on proper operation of the door and the product.
7.The product settings can only be changed by an installer or service engineer. When changed, the
changed settings and the date shall be registered in the maintenance logbook accompanying the door.
WARNING
Do not wash, disassemble, rebuild or repair the sensor, otherwise
it may cause electric shock or breakdown of the equipment.
Danger of electric shock
NOTE
The following conditions are not suitable for sensor installation.
-Fog or exhaust emission around the door
-Wet floor
-Vibrating header or mounting surface
-Moving objects, steel plate, emergency lights or illumination in the detection area or in vicinity
-Highly reflecting floor or highly reflecting objects around the door

SPECIFICATIONS

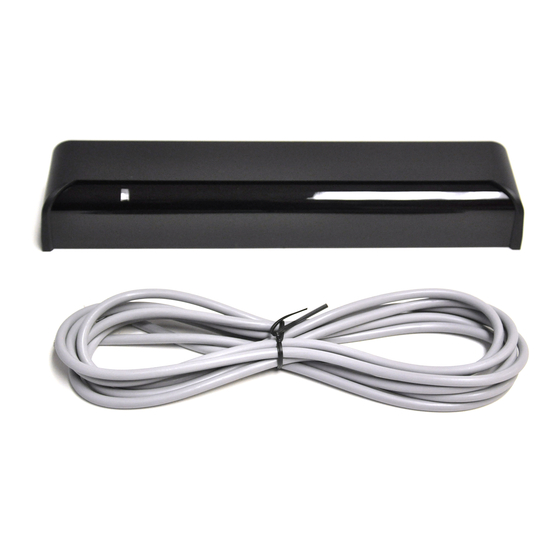

Model : X-ZONE
Cover color : Black
Mounting height : 2.0 (6'6") to 3.5m (11'6")

Detection area

: See DETECTION AREA
Detection method : Active infrared reflection*1
Microwave doppler effect
Depth angle : AIR area -6 to +6°
adjustment Microwave area +25 to +45°
Power supply : 12 to 24VAC ±10% (50 / 60 Hz)
12 to 30VDC ±10%
Power consumption : < 2.5W (< 4VA at AC)
Operation indicator : See Operation indicator table
Activation output
: Form C relay
50V 0.3A Max.(Resistance load)
Operation indicator table
Status Operation indicator color
Set-up Yellow blinking
Stand-by (installation mode)
Stand-by (operation mode)
*2
Blue-zone (1st row) detection
2nd row detection Red blinking
3rd row detection
Microwave detection
Signal saturation Slow green blinking
Sensor failure Fast green blinking
NOTE
The specifications herein are subject to change without prior notice due to improvements.
*1 : Active infrared reflection has a presence detection function.
*2 : See BLUE-ZONE
DETECTION AREA
A
Blue-zone(1st row)
2nd row
3rd row
G
1000(3'3")
H
I
2000(6'6")
2000 1000 0
(6'6") (3'3")
AIR emitting area
The chart shows the values at depth angle +6°
A 2.00 (6'6") 2.20 (7'2") 2.50 (8'2")
B 0.05(2") 0.06 (2") 0.07 (3")
C 0.07(3") 0.08 (3") 0.09 (4")
D
0.23 (9") 0.25 (10") 0.28 (11")
E 0.35 (1'2") 0.39 (1'3") 0.44 (1'5")
F 0.59 (1'11") 0.65 (2'2") 0.74 (2'5")
G 1.21 (3'12") 1.33 (4'4") 1.51(4'11")
H 1.86 (6'1") 2.05 (6'9") 2.32 (7'7")
I 2.52(8'3") 2.78 (9'1") 3.15 (10'4")
NOTE
The actual detection area may become smaller depending on the ambient light, the color / material of
the object or the floor as well as the entry speed of the object.
The sensor may not be activated when the entering speed of the object or a person is slower than
50mm / sec. or faster than 1500mm / sec.
Safety output
: Form C relay
50V 0.3A Max.(Resistance load)
Output hold time : <1.0 sec.
Response time : <0.3 sec.
Opetating temperature : -35 to +55°C (-31 to 131°F)
Operating humidity : <80%
IP rate : IP54
Weight : 320g (11.2oz )
Accessories : 1 Operation manual
2 Mounting screws
1 Mounting template
1 Area adjustment tool
1 Cable 3m (9'10")
1 Narrow lens
1sec.
Yellow
Green
Blue
Red
Orange
[mm(feet,inch)]
AIR
Mounting height : 2.2m(7'2")
Angle adjustment : +6°
Sensitivity : M
: Emitting spots
Mounting
: Emitting spots
surface
B
(can be eliminated)
D
C
: Detection area
E
F
Microwave
Mounting height : 2.2m(7'2")
Vertical adjustment : +35°
Sensitivity : H
Speed of detection object
: Detection area
(Wide area)
: Detection area
(Narrow area)
1000 2000
(3'3") (6'6")
[m(feet,inch)]
2.70 (8'10") 3.00 (9'10") 3.50 (11'6")
0.074(3") 0.08 (3") 0.09 (4")
0.10 (4") 0.11 (4") 0.12 (5")
0.31 (1') 0.34 (1'1") 0.39 (1'4")
0.48(1'7") 0.53 (1'9") 0.61 (2')
0.80 (2'8") 0.89 (2'11") 1.38 (3'5")
1.63 (5'4") 1.81 (5'11") 2.11 (5'11")
2.51 (8'3") 2.79 (9'2") 3.25 (10'8")
3.40 (11'2") 3.79 (12'5") 4.42 (14'6")
OUTER DIMENSIONS AND PART NAMES
36(1 7/16")
(1)
(3) (4)
BLUE-ZONE
When dipswitch 15 is set to ON, the blue-zone area, that provides extra safety over the threshold, is activated.
In case the blue-zone function is not required, set dipswitch 15 to OFF.
Do not set the 2nd row overlapping the threshold regardless of the setting of dipswitch 15.
3rd row

INSTALLATION

1
1. Affix the mounting template at the desired mounting position.
Refer to the chart in below.
2. Drill two mounting holes of ø3.4mm (ø1/8").
3. To pass the cable through the header, drill a wiring hole of ø8mm (ø5/16").
4. Remove the mounting template.
5. Remove the housing cover. Fix the sensor to the mounting surface with the two mounting screws.
Header
Sensor
Maximum distance (Y)
Y
X
X
H
Door
Floor
CAUTION
1sec.
Risk of getting caught
2
Wire the cable to the door controller as shown below.
Power supply
Activation output 2
Safety output
4
WARNING
Danger of electric shock
3
1.Plug the connector.
2.Supply power to the sensor. Adjust the detection area and set the dipswitches.
(See ADJUSTMENTS 4. Dipswitch settings)
NOTE Make sure to connect the cable correctly to the door controller before turning the power ON.
When turning the power ON or after adjusting the settings, do not enter the detection area for more
than 10 seconds in order to enable the presence detection.
4
Place the housing cover.
If wiring is to be exposed, break the knockout.
: 50mm / sec.
WARNING
Danger of electric shock
267(10 1/2")
[mm (inch)]
125(4 15/16")
38(1 1/2")
43(1 11/16")
(2)
(9)
(8)
(5)
(7)
(6)
2nd row
Blue-zone
2nd row
(1st row)
3rd row
H : Height from the floor to the bottom of the header
Y : Distance between the bottom of the header and the sensor
X : Distance between the door and the mounting surface
H
2.00 (6' 6") 2.30 (7' 6") 2.50 (8' 2")
No limit
0
0.13 (5") 0.13 (5")
0.05 (2") 0.13 (5")
0.10 (4") 0.11 (4") 0.12 (5") 0.12 (5")
0.10 (4") 0.11 (4")
0.15 (6") 0.10 (4")
0.20 (8") - 0.09 (4") 0.10 (4")
- - 0.09 (4")
0.25 (10")
0.30 (1') - - -
NOTE Make sure not to mount the sensor lower than the bottom of header.
Make sure to affix the mounting template as described in the above chart,
otherwise it can be dangerous since there may be no detection area around
the threshold. Install the sensor as low as possible on the header.
1.Grey
1
2.Grey
3.White
4.Yellow
5.Green
6.White stripe
3
7.Yellow stripe
8.Green stripe
Before starting the procedure, make sure that the power is turned OFF.
When passing the cable through the hole, do not tear the shield
otherwise it may cause electric shock or breakdown of the sensor.
Do not use the sensor without the cover.
When using the cable knockout, install the sensor indoors or use the rain cover
(separately available) otherwise electric shock or breakdown of
the sensor may occur.
(1) Connector
(2) Mounting holes
(3) Operation indicator
(4) Width adjustment screws
(5) Depth angle adjustment screw
(6) Microwave sensitivity potentiometer
(7) Dipswitches
(8) Detection window
(9) Area adjustment tool
Blue-zone
(1st row)
[m (feet,inch)]
2.80 (9' 2") 3.00 (9'10") 3.50 (11'6")
0.14 (6")
0.14 (6") 0
0.12 (5") 0.12 (5") 0
0.11 (4") 0.11 (4") 0
0.10 (4") 0.10 (4") 0
0.09 (4")
0.09 (4") 0
- - 0
}
12 to 24VAC 10％
12 to 30VDC 10%
Common (COM.)
Normally open (N.O.)
Normally closed (N.C.)
Common (COM.)
Normally open (N.O.)
Normally closed (N.C.)
Knockout Knockout
