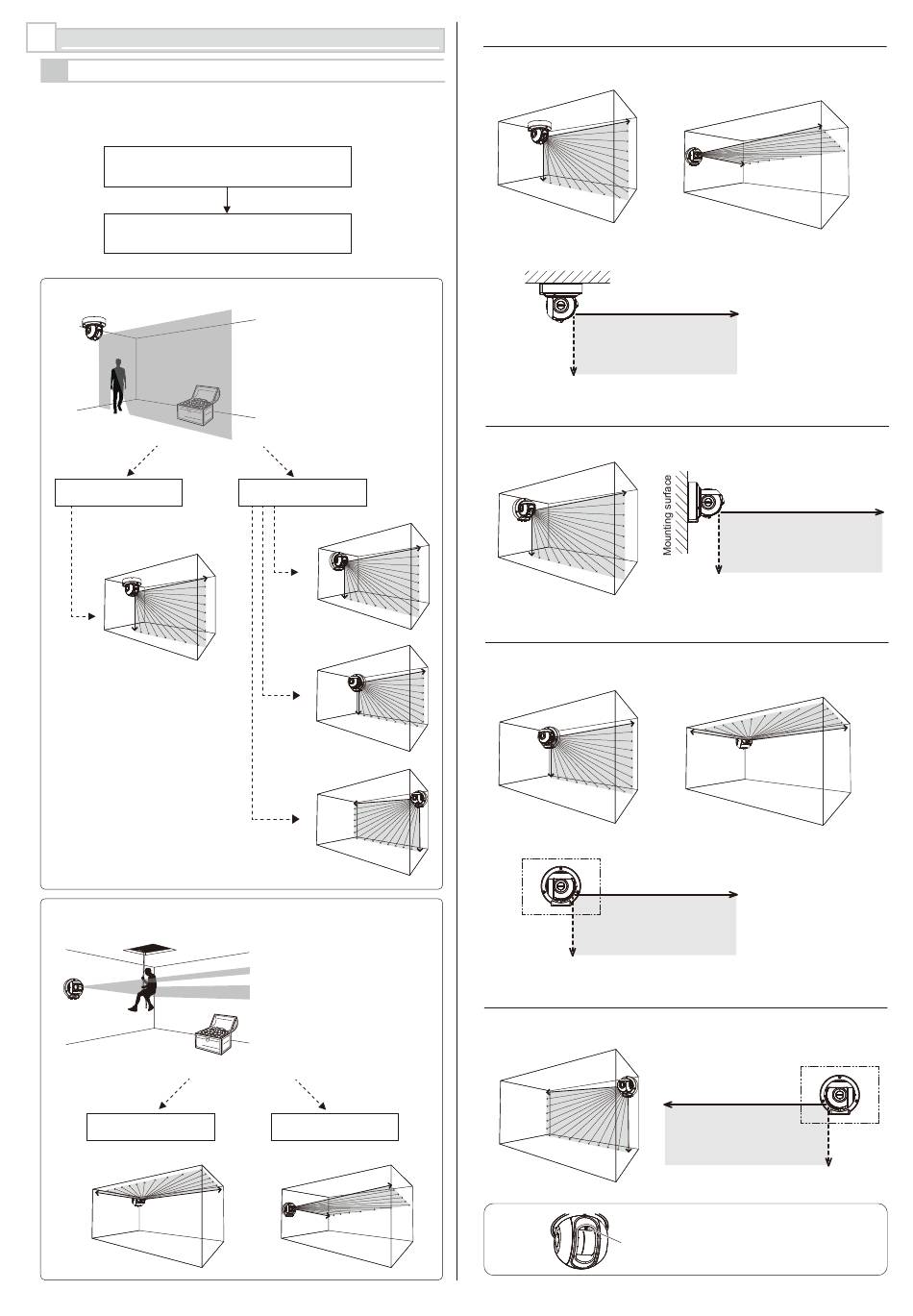

MOUNTING TYPE AND ASSEMBLY OPTIONS

2-1

MOUNTING TYPE

RLS-2020 has type A, B, C, and D to be installed.
Select the correct type of assembly to match the installation.
The detection area should cover the
intruders approach.
Which detection area is appropriate,
Vertical or Horizonrtal?
Vertical Detection Area
Detect!
CEILING MOUNT
Type A
Horizontal Detection Area
Detect!
CEILING MOUNT
Type C
The detector can create vertical
detection area.
Protect the asset from intruder who
across the detection area.
WALL MOUNT
Type B
Type C
Type D
The detector can create horizontal
detection area.
Protect the asset from intruder who
across the detection area.
WALL MOUNT
Type A
-Type A
• Vertical area for ceiling mount
Mounting surface
Y
-Type B
• Vertical area for wall mount
-Type C
• Vertical area for wall mount
at the left corner
Mounting surface
Y
-Type D
• Vertical area for wall mount at the right corner
Caution >>
EN-3
• Horizontal area for wall mount
X
Y
• Horizontal area for ceiling mount
X
Mounting surface
X
For the vertical detection area to
the mounting surface, be sure that
Fixing screw of
the fixing screw of the front cover is
the front cover
placed on top.
X
Y
