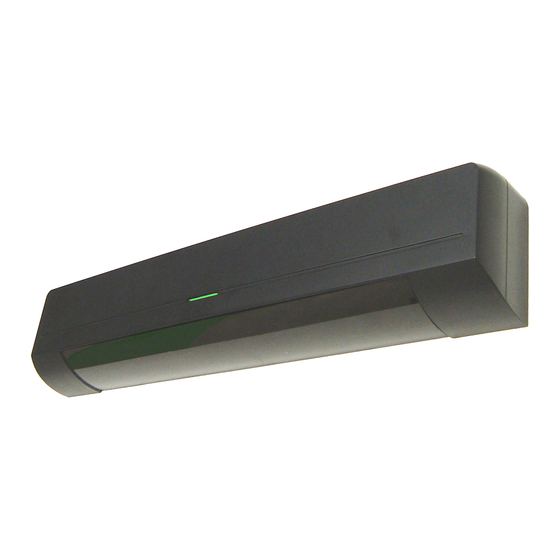

Optex Elite OA-603 Installation Instructions Manual

ELITE
Swing Door
Door Mounting Sensor
5913001 2008.3
MANUFACTURER'S STATEMENT
For ease of installation and proper operation read thru this manual (especially
Failure to read and follow the instructions in this manual may cause improper sensor operation resulting in serious injury or death.
This product is a non-contact activating switch intended for door mounted of an automatic door.
Do not use it for any other applications; otherwise proper operation and safety cannot be guaranteed.
WARNING
Disregard of warning may cause the improper use causing death or serious injury of person.
CAUTION Disregard of caution may cause the improper use causing injury of person or damage to object.
NOTE
Special attention for the setting and adjustment of section of this symbol is required.
1.Set door speeds and verify proper operation of door manufacturer's equipment prior to applying power to the sensor system.
2.Do not install the sensor where it might be directly sprayed with rainwater.
3.Verify proper wiring prior to applying power to the sensor system to prevent damage to equipment.
4.When setting the sensor's area pattern, make sure there is no traffic around the installation site.
5.Do not attempt to rebuild or repair sensor heads or control unit. Contact an address in this manual for replacement products.
6.Only use the sensor as specified in the supplied instructions.
7.Walk test the installation to verify operation is in compliance with all local laws, codes and standards of your country.
8.Upon completion of installation and adjustments, instruct the owner/operator on proper operation of the door and sensor system.
Identify any switches/breakers that will place the door out of service when unsafe or improper operation is identified.
SPECIFICATIONS
Model
Cover color type
Mounting Height
Detection Area
Detection Method
Detection Angle
Adjustments
Operation Indicator
Insure proper setting of Mode switch #8 indicating Approach side or Swing side sensor.
OUTER DIMENSIONS
: OA-603
: Black , Slilver
: 2.0m (6'7") to 2.5m (8'2")
: See the chart in "ADJUSTMENT".
: Active Infrared Reflection
(Presence Detection Type)
: Threshold Area ±5 (Inside & outside)
:Swing Area ±5 (Inside & Outside)
:Green : Stand-by
Blinking Red : Threshold Area Detection Active
Red : Swing Area Detection Active
Blinking Yellow :Learning
275(10 3/4")
Operation Indicator
NOTE
WARNING CAUTION
Current Draw
Response Time
Operating Temperature
Weight
Accessories
(1) (3)
FREQUENCY SWITCH AUTO LEARNING TIMER
1 2 15SEC. 30SEC. 60SEC.120SEC.
3 3 1 2 1 2 1 2 1 2
SNOW MODE RAIN MODE
NORMAL SNOW NORMAL RAIN
5 5 4 4
(9)
THRESHOLD AREA DEPTH ADJUSTMENT
DEEP AREA DEPTH
+5deg DEEP SHALLOW RIGHT SIDE
0deg
SHALLOW ‑5deg
6 6
SHALLOW
DEEP SHALLOW
PATTERN PATTERN
DEEP
These DipSW(7,8) are only for door mount.
(5) (6)
(1) Connector
(2) Sensitivity Potentiometer
(3) Mode Setting Switches
( Area Depth Adjustment, Auto Learning Timer,
Frequency, Rain Mode, Snow Mode )
(4) Area Width Switch
1-1
) prior to installing and adjusting the sensor system.
: 120mA Max
: < 0.3 second
: -20 C to +55 C (-4 F to +131 F)
: 230g (8.2oz.)
: 1 Sensor Cable 0.2m(7")
9 Mounting screws
1 Operation Manual
3 Mounting Template
248 (9 3/4")
(2)
(4)
THRESHOLD AREA SWING AREA AREA WIDTH SWITCH
SENSITIVITY SENSITIVITY
POTENTIOMETER POTENTIOMETER
1 2 3 4 5 6 7 8
Each number of Area
can be eliminated
by using each dip‑SW.
Min Max Min Max Active Inactive
OA-603 SWING AREA DEPTH ADJUSTMENT
HINGE SIDE SENSOR SIDE OPERATION INDICATOR
DEEP
LEFT SIDE SWING SIDE APPROACH SIDE 5728770 :Stand‑by
Green +5deg
0deg
7 7 8 8 Red Blink :Doorside Det. DEEP
‑5deg
Red :Presence Det.
SHALLOW
Yellow Blink:Teaching
DEEP SHALLOW
OPERATION INDICATOR PATTERN PATTERN
SHALLOW
(10) (7) (8)
(5) Threshold Area Angle Screw
(6) Threshold Area Angle Gauge
(7) Swing Area Angle Gauge
(8) Swing Area Angle Screw
(9) Mounting Holes
(10) Operation Indicator
(1)
(9)
[mm (inch)]
