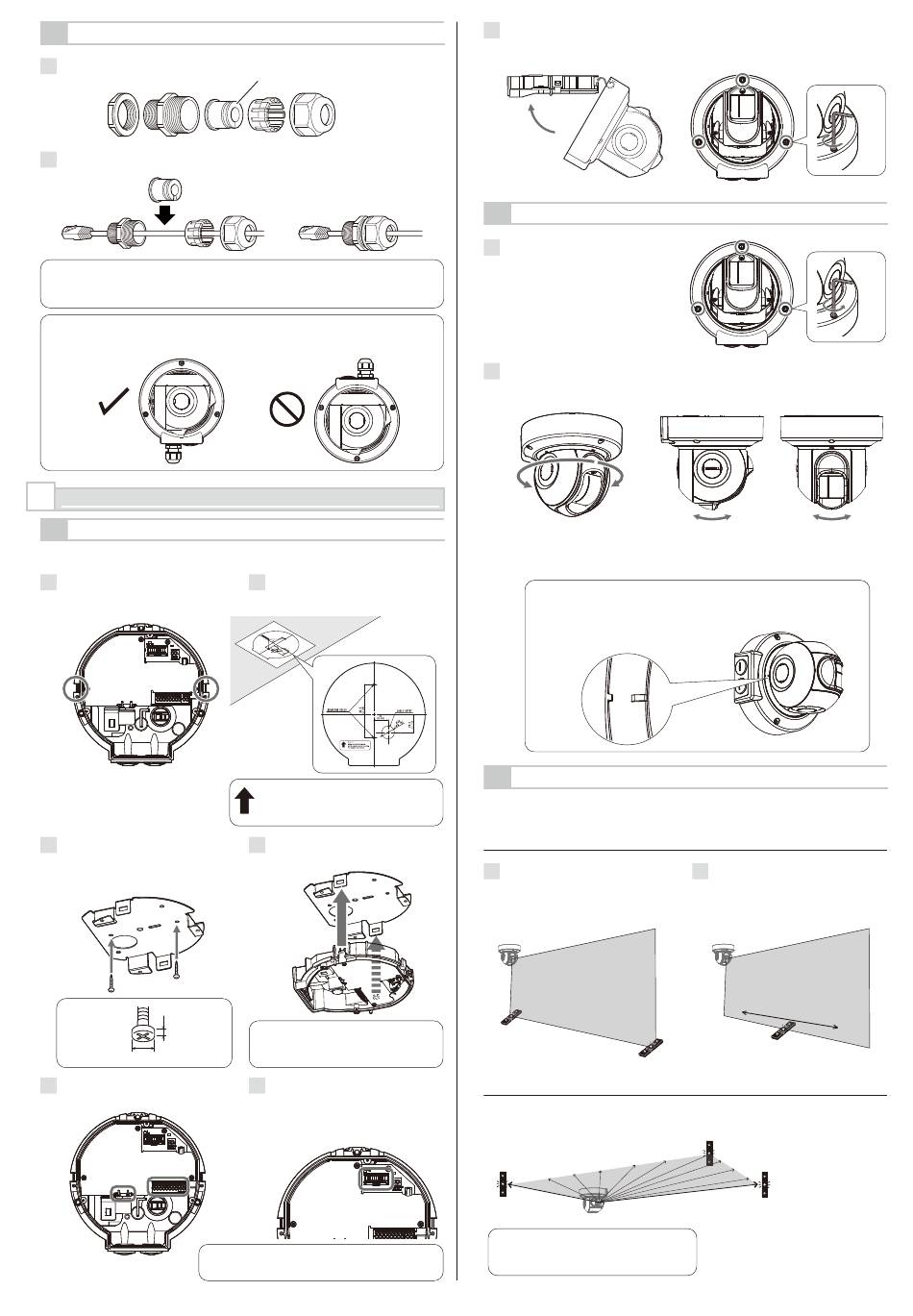

INSTALLING NETWORK CABLE

Disassemble the cable gland.
1
Pass the Ethernet plug with the correct order and direction. Put the seal from
2
the side.
Sensor side
Caution >>
The LAN cable with the cover on cannot passes through the cable gland.
Be sure to remove the cover before use.
Caution >>
Do not install the cable gland upward than horizontal line. Doing so may reduce the
waterproof performance.
4

INSTALLATION AND ANGLE ADJUSTMENT

4-1

WALL OR CEILING MOUNTED

Methods for ceiling mounting and wall mounting are the same.
Remove the mounting bracket
1
from the base, using a tool such
as flathead screwdriver.
Mount the mounting bracket to the
3
mounting surface.
Screws to fix the mounting bracket
are not included.
Note >>
3.5 mm max.
4 mm
/ No.8
Φ9.5 mm max.
Perform wiring. (See 5-1.)
5
Caution >>
Seal
Place the supplied paper template
2
on the mounting surface and open
2 mounting holes.
Note >>
Make sure that the arrow points upward
when mounting the detector on the wall.
Attach the base into the mounting
4
bracket until it clicks.
Note >>
Pull the base to make sure that the
base is completely attached.
Connect the base and main unit
6
with wiring. When the LED at the
side of the relay connecter is ON,
turn OFF the power supply before
connecting them.
Relay connector
Do not supply the power for this unit during wiring.
Insert the base hook in to the base cover and ensure that the fixing screw
7
does not jam against the cover.
Close the base cover, and then tighten the 3 screws to fix it.
2.
4-2

ANGLE ADJUSTMENT

Slightly loosen 3 fixing screws.
1
Use the laser area checker to adjust the angle and then tighten
2
3 fixing screws.
180°
±180° horizontally
Note >>
Align the markings of the base unit and main unit to be the guideline
for the direction of the detection area.
4-3

LASER AREA CONFIRMATION

It is recommended that the optional Laser Area Checker(LAC-1) is used to
confirm the location of the laser plane.
-Vertical Detection Area
Adjust the detector's angle so that
1
the laser beam hits the farthest
position of the required area and
just the bottom of the detector.
-Horizontal Detection Area
Check that the laser beams are targeted to the desired areas.
Tips: Two units of LAC-1 (option) can make it easier to confirm
the detection area.
Note >>
For detailed instructions refer to the
LAC-1 instruction manual.
EN-7
1.
180°
Approx. 4° virtically and horizontally
Check that the entire area is
2
covered properly with laser area
checker (option: LAC-1).
