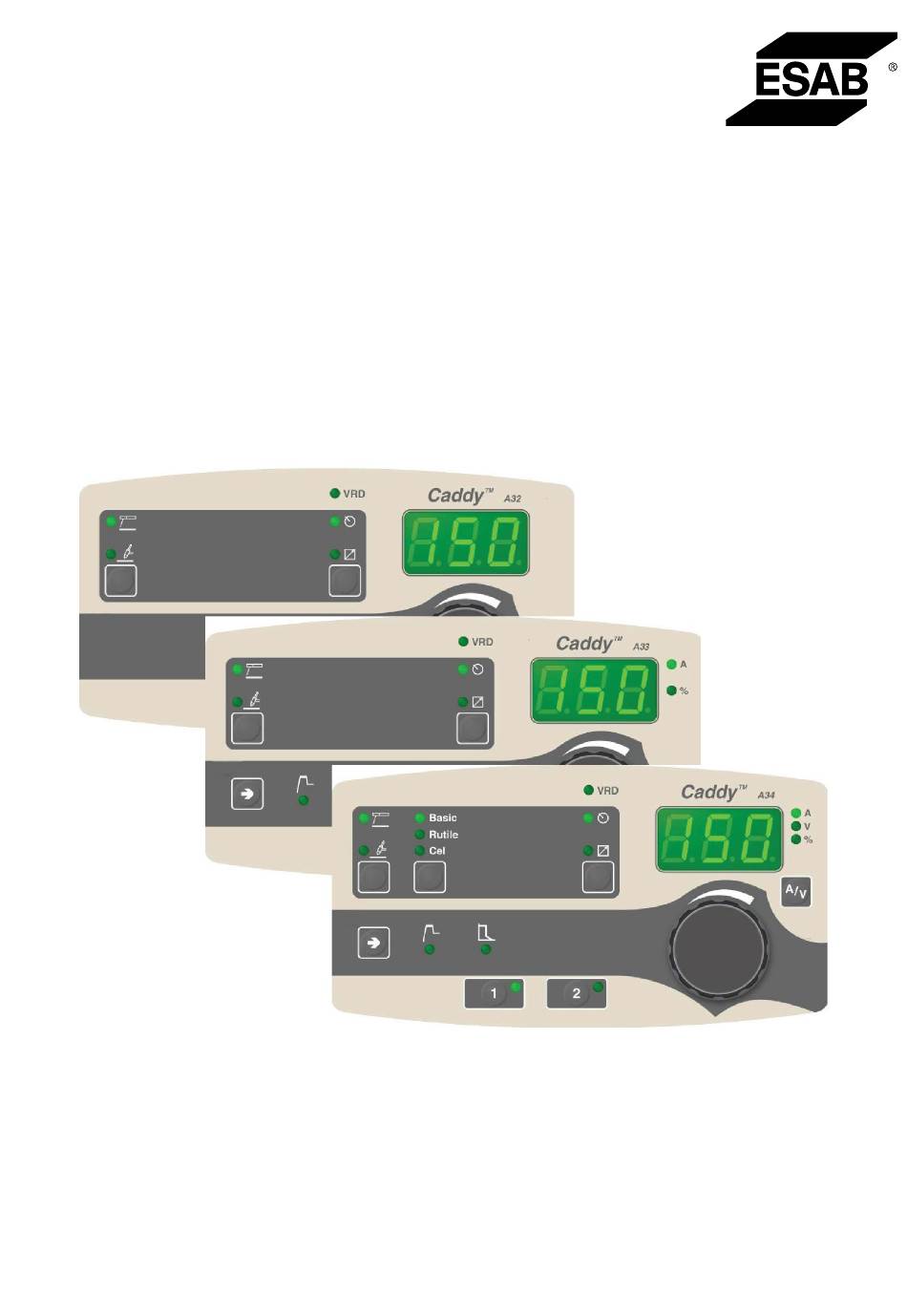

- Page 1 Caddy® A32, A33, A34 Instruction manual 0460 449 274 GB 20130703 Valid for: from program version 1.35P...
-
Page 2: Table Of Contents
Hidden TIG functions................... 9 WELDING DATA MEMORY ................11 FAULT CODES ....................12 General........................ 12 List of fault codes ....................12 Fault code descriptions..................12 ORDERING NUMBERS .....................13 Rights reserved to alter specifications without notice. 0460 449 274 © ESAB AB 2013... -
Page 3: Introduction

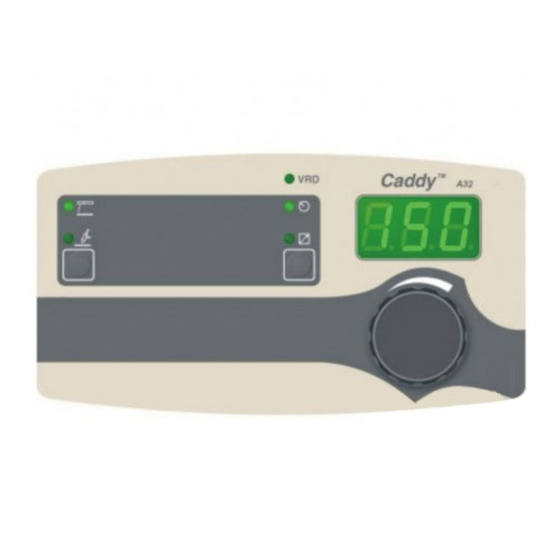

0.18. NOTE! Differencies in the panel function may occur, depending on in which product it is installed. Instruction manuals in other languages can be downloaded from the website, www.esab.com Control panel A32 Display Knob for setting the current... -
Page 4: Control Panel A33
Setting from panel or connecting remote control unit Display of VRD function (reduced open-circuit voltage) Measured value in the display for welding current A, is arithmetic average value = rectified average value. 0460 449 274 - 4 - © ESAB AB 2013... -
Page 5: Control Panel A34
Display of VRD function (reduced open-circuit voltage) Measured value in the display for arc voltage (V) and welding current (A), is arithmetic average value = rectified average value. 0460 449 274 - 5 - © ESAB AB 2013... -
Page 6: Mma Welding
The arc force is important in determining how the current changes in response to a change in the arc length. A lower value gives a calmer arc with less spatter. 0460 449 274 - 6 - © ESAB AB 2013... -
Page 7: Hidden Functions Mma Welding
(16) appearing in the display and welding cannot be started whilst the error message is displayed. Contact an authorised ESAB service technician to activate the function. Hidden functions MMA welding There are hidden functions in the control panel. -
Page 8: Tig Welding
Settings are made from the remote control unit. The remote control unit must be connected to the remote control unit socket on the equipment before activation. When the remote control unit is activated the panel is inactive. 0460 449 274 - 8 - © ESAB AB 2013... -
Page 9: Hidden Tig Functions
(16) appearing in the display and welding cannot be started whilst the error message is displayed. Contact an authorised ESAB service technician to activate the function. Hidden TIG functions There are hidden functions in the control panel. - Page 10 In a system without a trigger signal, the "S" parameter can be used to automatically start pre-heating. WARNING! When the "S" parameter is in position "1", there is a constant voltage on the welding outlet. This is indicated by a flashing VRD indicator. 0460 449 274 - 10 - © ESAB AB 2013...
-
Page 11: Welding Data Memory
To switch between the different welding data memories press button The welding data memory has a back-up battery so that the settings remain even if the unit has been switched off. 0460 449 274 - 11 - © ESAB AB 2013... -
Page 12: Fault Codes
Content of existing memory is incorrect. Basic data will be used. Action:Turn off the mains power supply to reset the unit. Send for a service technician if the fault persists. 0460 449 274 - 12 - © ESAB AB 2013... -
Page 13: Ordering Numbers
ORDERING NUMBERS ORDERING NUMBERS Ordering no. Denomination 0460 250 883 Control Panel Caddy™ A32 0460 250 888 Control Panel Caddy™ A33 0460 250 885 Control Panel Caddy™ A34 0460 449 274 - 13 - © ESAB AB 2013... -
Page 14: Esab Ab
0460 449 291 Instruction manual SI 0460 449 292 Instruction manual LT 0460 449 293 Instruction manual CN Instruction manuals and the spare parts list are available on the Internet at www.esab.com 0460 449 274 - 14 - © ESAB AB 2013... - Page 15 ORDERING NUMBERS 0460 449 274 - 15 - © ESAB AB 2013...
- Page 16 ESAB subsidiaries and representative offices Europe NORWAY North and South America SOUTH KOREA AS ESAB ESAB SeAH Corporation Larvik Kyungnam AUSTRIA ARGENTINA Tel: +47 33 12 10 00 Tel: +82 55 269 8170 ESAB Ges.m.b.H CONARCO Vienna-Liesing Fax: +47 33 11 52 03...
