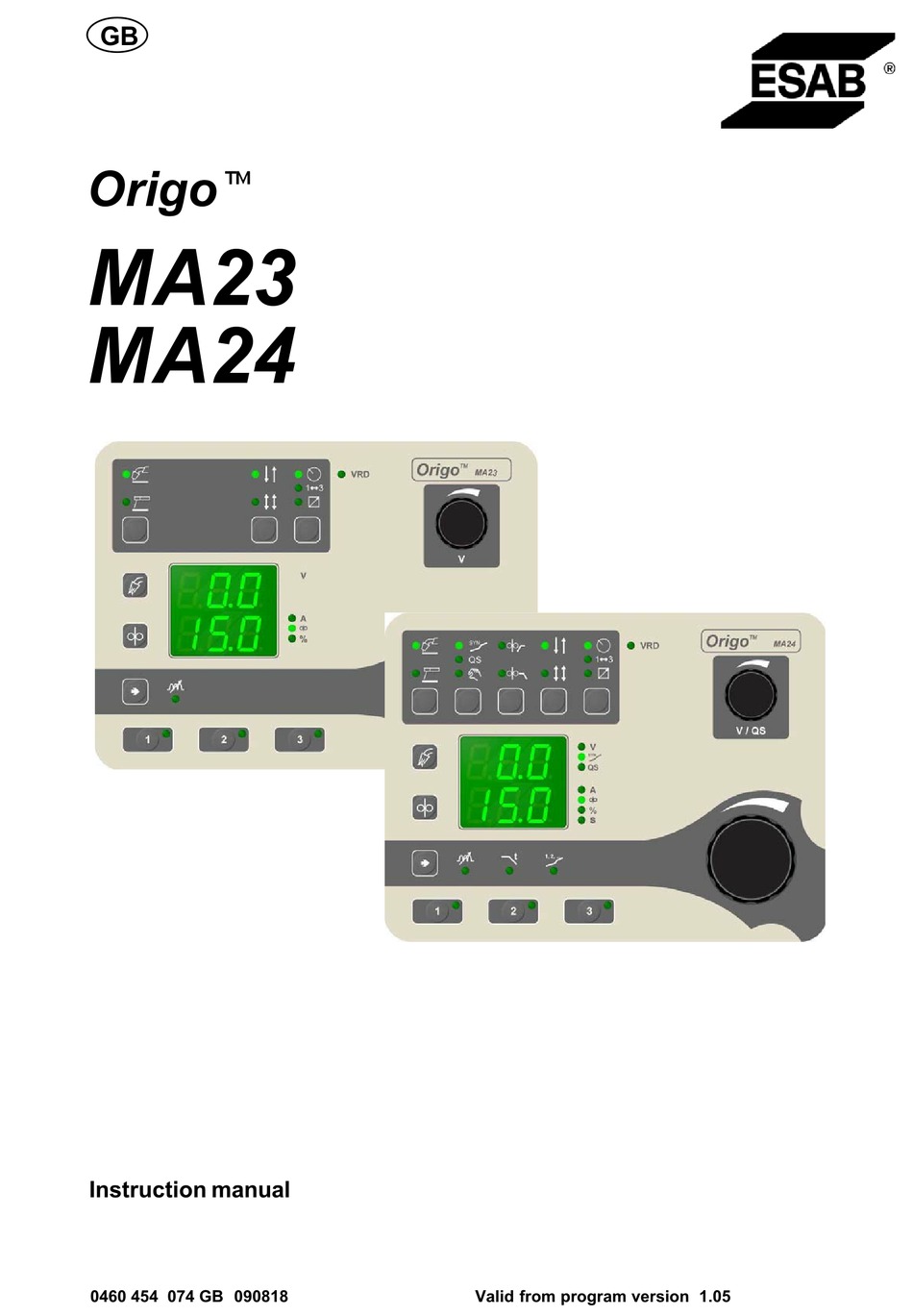

- Page 1 Origot MA23 MA24 Instruction manual 0460 454 074 GB 090818 Valid from program version 1.05...
-
Page 2: Table Of Contents
1 INTRODUCTION ........... 1.1 Control panel MA23 . -
Page 3: Introduction

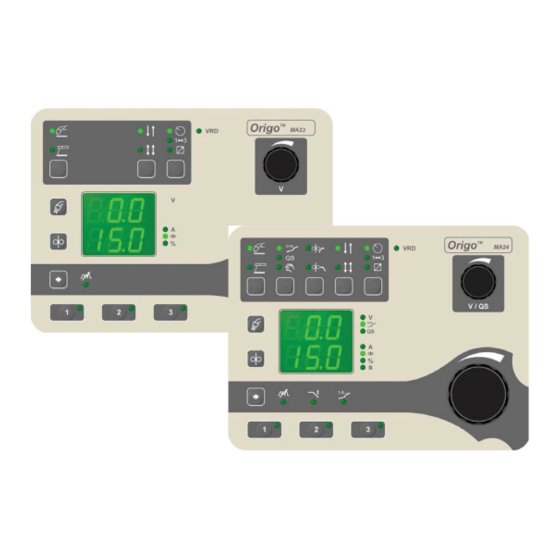

LEDs and the display, the program version is displayed and in this example the program version is 0.17A Instruction manuals in other languages can be downloaded from the website, www.esab.com. Control panel MA23 Setting voltage Setting the wire feed speed,... -
Page 4: Control Panel Ma24
Control panel MA24 Setting voltage / QSett Setting the wire feed speed, current, (ampere, m/minute percent or seconds) Display Choice of welding method MIG/MAG or MMA Choice of QSett , manual setting or synergy Selection of creep start or crater filling Choice of 2-stroke or 4-stroke Setting from panel... -
Page 5: Mig/Mag Welding
MIG/MAG WELDING Settings Functions Setting range MA23 MA24 Voltage 8 - 60 V Wire feed speed 0.8 - 25 m/min Synergy OFF or ON Synergic lines 15 pcs QSett OFF or ON Manual setting OFF or ON Creep start OFF or ON Creep start 0=OFF or 1=ON Crater filling... - Page 6 See the different synergic lines on page 14. It is also possible to order other synergy lines, but these must be installed by an authorised ESAB service engineer. When activating synergy also select synergy option using the setting knob.
- Page 7 Crater filling Crater filling time Crater filling helps to avoid pores, thermal cracking and crater formation in the weld when welding stops. When activating crater filling also select crater filling time using the setting knob. This function cannot be used with QSett. 2-stroke With 2-stroke gas pre-flow (if used) starts when the welding gun trigger switch is pressed.
-
Page 8: Hidden Mig/Mag Functions
Remote control unit Settings are made from the remote control unit. The remote control unit must be connected to the remote control unit socket on the machine before activation. When the remote control unit is activated the panel is inactive. With the remote control unit function activated one can change between different welding data memories using a welding gun with program selector (RS3). - Page 9 MA23 Function letter Function Gas pre-flow Burnback time Gas post-flow Creep start MA24 Function letter Function Gas pre-flow Unit of measurement Burnback time Gas post-flow To leave the function hold the button depressed for 5 seconds. Gas pre-flow This controls the time during which shielding gas flows before the arc is struck. Unit of measurement 0 = inch, 1 = mm, Default value = 1 Burnback time...
-
Page 10: Mma Welding
MMA WELDING Settings Functions Setting range MA23 MA24 Current 16- max A Active panel OFF or ON Remote control unit OFF or ON Arc force 0 - 99 Drop welding 0=OFF or 1=ON Hotstart 0 - 99 Weld regulator 1=ArcPlust II or 0=ArcPlust These functions are hidden functions, see description point 3.3. -
Page 11: Hidden Mma Functions
Hidden MMA functions There are hidden functions in the control panel. To access these hidden functions hold the button depressed for 5 seconds. The display will show a letter and a value. The knob for voltage is used to change the value of the selected function. -
Page 12: Welding Data Memory
WELDING DATA MEMORY Three different welding data programs can be stored in the control panel memory. Hold button pressed in for 5 seconds to store welding data in the memory. The welding data is stored when the green indicator lamp starts to flash. -
Page 13: Fault Code Descriptions
The control panel has lost contact with the cooling unit. Switch off the power source! Action: Check the wiring. If the fault persists, send for a service technician. ORDERING SPARE PARTS Spare parts may be ordered through your nearest ESAB dealer, see the last page of this publication. - 13 -... -
Page 14: Wire And Gas Dimensions
Wire and gas dimensions Syn no Material ESAB designation Shielding gas Wire diameter (mm) OK AristoRod 12.50 82% Ar+18%CO OK AristoRod 12.50 82% Ar+18%CO Al 4043 OK Autrod 4043 100% Ar Al 4043 OK Autrod 4043 100% Ar Al 5356... -
Page 15: Ordering Number
0460 454 090 Instruction manual LV 0460 454 091 Instruction manual SL 0460 454 092 Instruction manual LT 0459 839 024 Spare parts list Instruction manuals and the spare parts list are available on the Internet at www.esab.com - 15 - Edition 090818 bi21o... - Page 16 ESAB subsidiaries and representative offices Europe NORWAY Asia/Pacific Representative offices AS ESAB AUSTRIA BULGARIA CHINA Larvik ESAB Ges.m.b.H ESAB Representative Office Shanghai ESAB A/P Tel: +47 33 12 10 00 Vienna-Liesing Sofia Shanghai Fax: +47 33 11 52 03 Tel: +43 1 888 25 11...
