Summary of Contents for ESAB Caddy A32
- Page 1 A32, A33, A34 Caddyt Instruction manual 0460 449 074 GB 08- -02- -27 Valid from program version 1.03...
-
Page 2: Table Of Contents

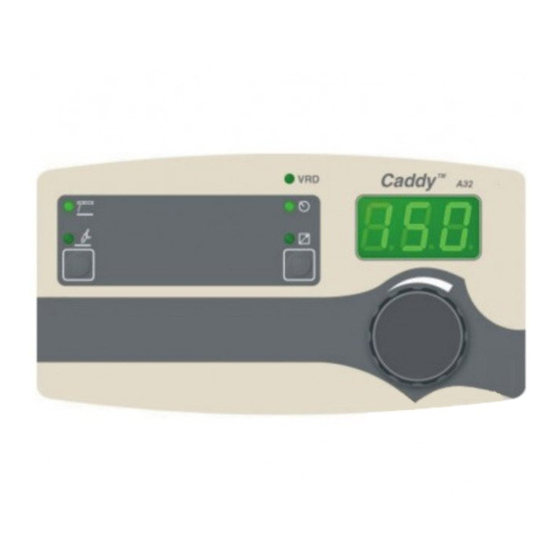

1 INTRODUCTION ........... 1.1 Control panel A32 . -
Page 3: Introduction
INTRODUCTION The manual describes use of A32, A33 and A34 control panels. For general information about operation see user’s instructions for the power source. When mains power is supplied the unit runs a self diagnosis of the LEDs and the display, the program version is displayed and in this example the program version is 0.18. -
Page 4: Control Panel A33
Control panel A33 Display Indication of which parameter is shown in the display (current or percent) Knob for setting data (current or percent) Buttons for weld data memory settings. See title 4 . Button for choosing parameters ”Hot start” or arc pressure ”Arc force” when MMA welding Choice of welding method MMA or TIG... -
Page 5: Control Panel A34
Control panel A34 Display Indication of which parameter is shown in the display (current, voltage or percent) Choice of current indication (A) or voltage indication (V) during welding, in the display Knob for setting data (current or percent) Buttons for settings in welding data memory. See title 4 . Button for choosing parameters ”Hot start”... -
Page 6: Mma Welding
MMA WELDING Settings Function Setting range Current 4 max Active panel OFF or ON Remote control unit OFF or ON Hot start 0 -- 99% Arc force 0 -- 99% Drop welding OFF or ON The setting range is dependent on the power source used. Concealed function Symbol and Function explanations MMA welding... -
Page 7: Hidden Functions Mma Welding
VRD (Voltage Reduction Device) This function is not yet fully supported. Hidden functions MMA welding There are hidden functions in the control panel. To access the functions in A32, use the method button, To access the functions in A33 and A34, hold button depressed for 5 seconds. -
Page 8: Tig Welding
TIG WELDING Settings Function Setting range Current 4 max Active panel OFF or ON Remote control unit OFF or ON The setting range is dependent on the power source used. Symbol and Function explanations TIG welding TIG welding melts the metal of the workpiece, using an arc struck from a tungsten elec- trode, which does not itself melt. -
Page 9: Welding Data Memory
WELDING DATA MEMORY Two different welding data programs can be stored in the control panel memory. Press button for 5 seconds to store the welding data in the memory. The welding data is stored when the green indicator lamp starts to flash. To switch between the different welding data memories press button The welding data memory has a back--up so that the settings remain even if the machine has been switched off. -
Page 10: Fault Code Descriptions
Fault code descriptions The fault codes that the user can correct themselves are given below. If a different code appears, call a service technician. Fault Description code High temperature The thermal overload cut--out has tripped. The current welding process is stopped and cannot be restarted until the temperature has fallen. -
Page 11: Ordering Number
Instruction manual HU 0460 449 084 Instruction manual CZ 0460 449 027 Instruction manual RU, GB Instruction manuals and the spare parts list are available on the Internet at www.esab.com - - 11 - - Edition 08- -02- -27 bi20o... - Page 12 ESAB subsidiaries and representative offices Europe Asia/Pacific Representative offices NORWAY AS ESAB AUSTRIA BULGARIA CHINA Larvik ESAB Ges.m.b.H ESAB Representative Office Shanghai ESAB A/P Tel: +47 33 12 10 00 Vienna- -Liesing Sofia Shanghai Fax: +47 33 11 52 03...
