4. Connect the RJ-45 network cable to the TH-Module port labeled
"010101" (see Figure 4).
5. Connect the other end of the RJ-45 network cable to the ERM (see
Figure 5).
ERM
NETWORK
To LAN port

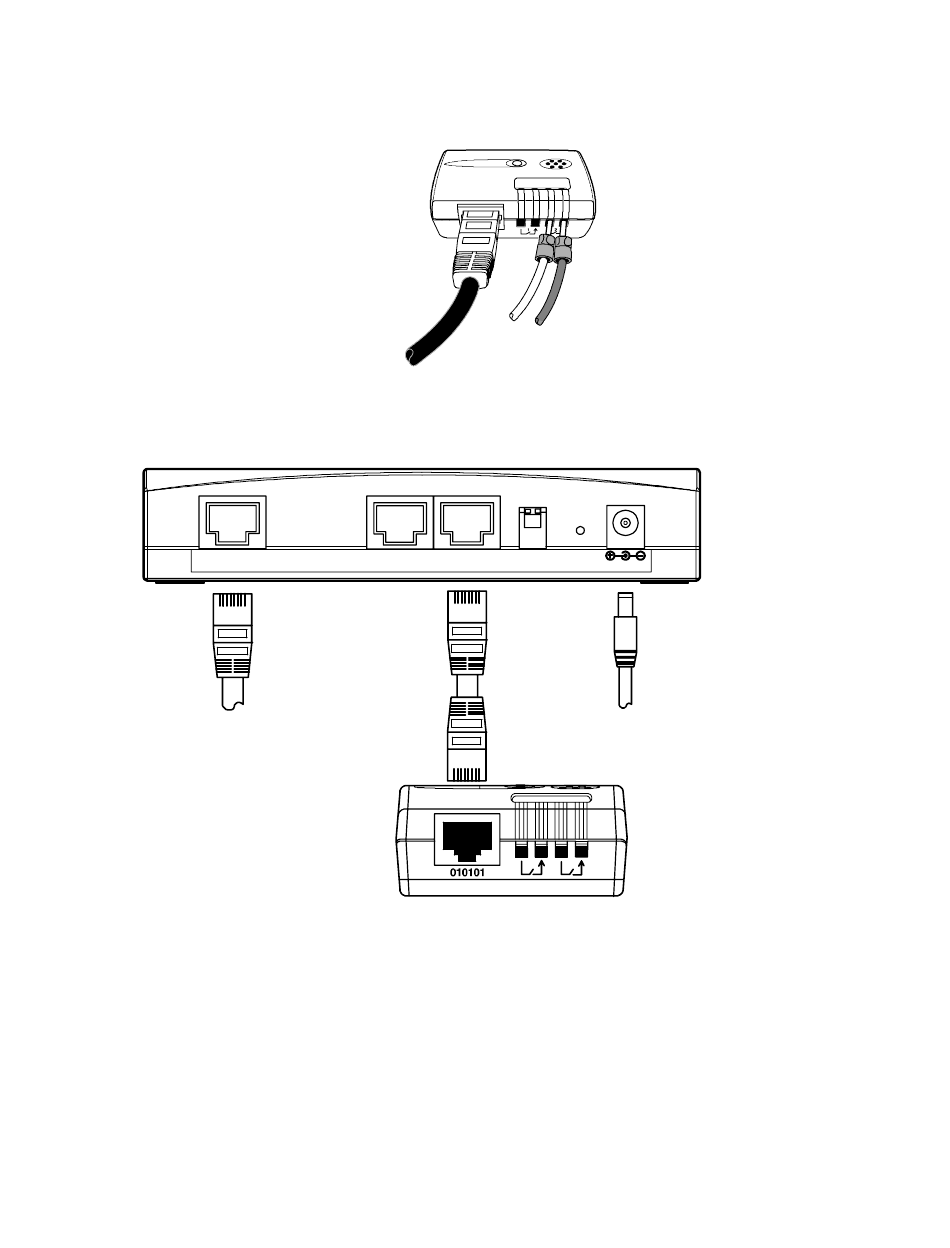

Figure 4. Connecting the RJ-45 Network Cable
TH-Module-1 TH-Module-2
TH-Module
Figure 5. ERM and TH-Module
