- Page 1 Powerware Security Detector ® User’s Guide...
- Page 2 Powerware is a registered trademark of Eaton Electrical Inc. ECopyright 2007 Eaton Corporation, Raleigh, NC, USA. All rights reserved. No part of this document may be reproduced in any way without the express written approval of Eaton Corporation.

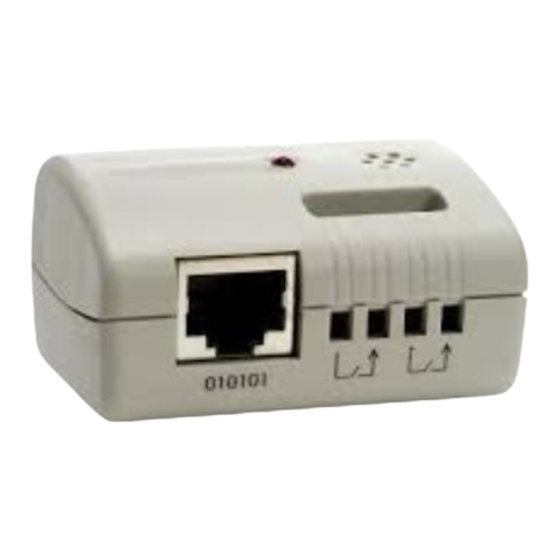

- Page 3 Please read all instructions before operating the equipment and save this manual for future reference. The security detector is a device that works with the Eaton Powerware Environmental Rack Monitor (ERM) and connects to the TH-Module.
- Page 4 4. If you are installing additional security detectors, repeat Steps 1 through 3. 5. Connect the RJ-45 network cable to the TH-Module port labeled “010101“ (see Figure 3). Figure 3. Connecting the RJ-45 Network Cable EATON Powerware ® Security Detector User’s Guide 164201679 Rev 1...
- Page 5 (Power/Status) is flashing. 9. Set the status of alarm 1 and/or alarm 2 to “Normal Close” and select “Door Contact.” 10. Select to confirm the security detector setup. Set Value EATON Powerware ® Security Detector User’s Guide 164201679 Rev 1...
- Page 6 Figure 8. Alarm Table NOTE For more detailed information that is not included in this manual, first register your product at warranty.powerware.com, then visit our Web site: www.powerware.com/rackmonitor. You can also download firmware upgrades, the latest manuals, and other documentation. EATON Powerware ®...
