Powerware Series
®
®

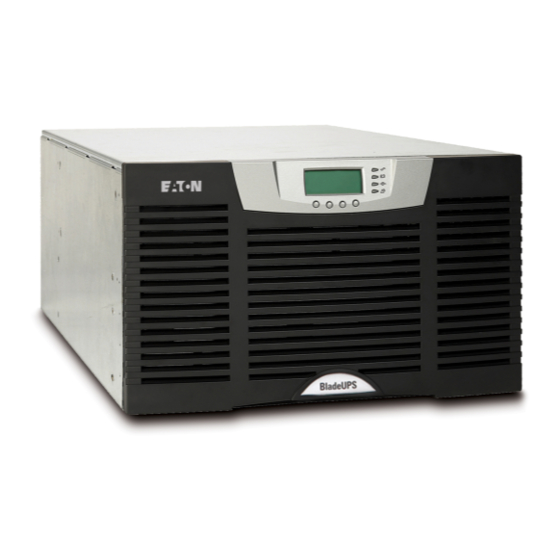

Eaton BladeUPS
External Battery Interconnect
User's Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Powerware Series and is the answer not in the manual?

Questions and answers

Related Manuals for Eaton Powerware Series

Summary of Contents for Eaton Powerware Series

  • Page 1 Powerware Series ® ® Eaton BladeUPS External Battery Interconnect User's Guide...
  • Page 2 Phillips is a registered trademark of Phillips Screw Company. All other trademarks are properties of their respective companies. ECopyright 2009–2010 Eaton Corporation, Raleigh, NC, USA. All rights reserved. No part of this document may be reproduced in any way without the express written approval of Eaton Corporation.
  • Page 3 92/31/EEC, Amending Directive 89/336/EEC relating to EMC The EC Declaration of Conformity is available upon request for products with a CE mark. For copies of the EC Declaration of Conformity, contact: Eaton Power Quality Oy Koskelontie 13 FIN-02920 Espoo Finland...
  • Page 4 Special Symbols The following are examples of symbols used on the UPS or accessories to alert you to important information: RISK OF ELECTRIC SHOCK - Observe the warning associated with the electric shock symbol. CAUTION: REFER TO OPERATOR'S MANUAL - Refer to your operator's manual for additional information, such as important operating and maintenance instructions.

  • Page 5: Table Of Contents

    ..............164201794 Rev 3 www.eaton.com/powerquality Eaton ®...
  • Page 6 TABLE OF CONTENTS 164201794 Rev 3 www.eaton.com/powerquality Eaton ® BladeUPS ® External Battery Interconnect User's Guide...

  • Page 7: Introduction

    The External Battery Interconnect converts external battery input wires to a plug that is compatible with the Eaton BladeUPS 12i module (see Figure 1). Figure 1. External Battery Interconnect 164201794 Rev 3 www.eaton.com/powerquality Eaton ®...
  • Page 8 BladeUPS 12i module, you cannot use a combination of customer-supplied external batteries and Eaton-supplied Extended Battery Modules (EBMs) with the same BladeUPS 12i module. Never connect the External Battery Interconnect plug to an EBM.

  • Page 9: Safety Warnings

    F A R E Denne UPS indeholder LIVSFARLIG HØJSPÆNDING. Alle reparationer og vedligeholdelse bør kun udføres af en AUTORISERET SERVICETEKNIKER. Ingen af UPS'ens indvendige dele kan repareres af brugeren. 164201794 Rev 3 www.eaton.com/powerquality Eaton ® BladeUPS ®...
  • Page 10 V A A R A Tämä UPS sisältää HENGENVAARALLISIA JÄNNITTEITÄ. Kaikki korjaukset ja huollot on jätettävä VAIN VALTUUTETUN HUOLTOHENKILÖN TOIMEKSI. UPS ei sisällä MITÄÄN KÄYTTÄJÄN HUOLLETTAVIA OSIA. 164201794 Rev 3 www.eaton.com/powerquality Eaton ® BladeUPS ® External Battery Interconnect User's Guide...
  • Page 11 Gerät arbeiten. Bewaren Sie das Handbuch zum Nachlesen auf. W A R N U N G Die USV führt lebensgefährliche Spannungen. Alle Reparatur- und Wartungsarbeiten sollten nur von Kundendienstfachleuten durchgeführt werden. Die USV enthält keine vom Benutzer zu wartenden Komponenten. 164201794 Rev 3 www.eaton.com/powerquality Eaton ® BladeUPS ®...
  • Page 12 F A R L I G Denne UPS'en inneholder LIVSFARLIGE SPENNINGER. All reparasjon og service må kun utføres av AUTORISERT SERVICEPERSONALE. BRUKERE KAN IKKE UTFØRE SERVICE PÅ NOEN AV DELENE i UPS'en. 164201794 Rev 3 www.eaton.com/powerquality Eaton ® BladeUPS ®...
  • Page 13 Î Ï À Ñ Í Î Â äàííîì ÈÁÏ èìåþòñÿ ÑÌÅÐÒÅËÜÍÎ ÎÏÀÑÍÛÅ ÍÀÏÐßÆÅÍÈß. Âñå ðàáîòû ïî ðåìîíòó è îáñëóæèâàíèþ äîëæíû âûïîëíÿòüñÿ ÒÎËÜÊÎ ÓÏÎËÍÎÌÎ×ÅÍÍÛÌ ÎÁÑËÓÆÈÂÀÞÙÈÌ ÏÅÐÑÎÍÀËÎÌ. Âíóòðè ÈÁÏ íåò óçëîâ, ÎÁÑËÓÆÈÂÀÅÌÛÕ ÏÎËÜÇÎÂÀÒÅËÅÌ. 164201794 Rev 3 www.eaton.com/powerquality Eaton ® BladeUPS ® External Battery Interconnect User's Guide...
  • Page 14 F A R A Denna UPS-enhet innehåller LIVSFARLIG SPÄNNING. ENDAST AUKTORISERAD SERVICEPERSONAL får utföra reparationer eller service. Det finns inga delar som ANVÄNDAREN KAN UTFÖRA SERVICE PÅ inuti UPS-enheten. 164201794 Rev 3 www.eaton.com/powerquality Eaton ® BladeUPS ®...

  • Page 15: Installation

    Choosing a mounting option Attaching the mounting bracket Attaching the External Battery Interconnect Wiring the External Battery Interconnect Connecting the External Battery Interconnect to the Eaton BladeUPS 12i Customer-Supplied External Battery When configuring a BladeUPS 12i module with external batteries, use either Eaton-supplied EBMs only or customer-supplied external batteries only.

  • Page 16: Choosing A Mounting Option

    The vertical spacing of the External Battery Interconnects Whether the conduits are rigid or flexible For an example of a rack with three External Battery Interconnect devices installed, see Figure 13 on page 25. 164201794 Rev 3 www.eaton.com/powerquality Eaton ® BladeUPS ®...
  • Page 17 Figure 3. Use this figure to locate the proper rail for attaching the External Battery Interconnect. Attach External Battery Interconnect to this Rail Rack Rear Figure 3. Locating the External Battery Interconnect 164201794 Rev 3 www.eaton.com/powerquality Eaton ® BladeUPS ® External Battery Interconnect User's Guide...

  • Page 18: Attaching The Mounting Bracket To The Vertical Rail

    Left Figure 4. Positioning, Left-to-Right NOTE Eaton recommends left or far left mounting to minimize restriction of the UPS exhaust air flow. When using right or far right mounting options, locate the External Battery Interconnect toward the back of the rack, away from the UPS. Note that you can attach the External Battery Interconnect on either side of the mounting bracket.
  • Page 19 (supplied) and two M5 hex nuts with captured star washers (supplied). See Figure 6. Figure 6. Secure Mounting Bracket to Rail 5. Continue to the following section, “Attaching the External Battery Interconnect to the Mounting Bracket.” 164201794 Rev 3 www.eaton.com/powerquality Eaton ® BladeUPS ®...

  • Page 20: Attaching The External Battery Interconnect To The Mounting Bracket

    Figure 7. Positioning, Front-to-Back 2. Remove the two M4 hex nuts with captured star washers that are shipped already attached to the threaded studs on the back of the External Battery Interconnect (see Figure 8). 164201794 Rev 3 www.eaton.com/powerquality Eaton ® BladeUPS ®...
  • Page 21 4. Secure the External Battery Interconnect to the long flange of the mounting bracket using the two M4 hex nuts with captured star washers that were removed from the threaded studs earlier (see Figure 9 and Figure 10). 164201794 Rev 3 www.eaton.com/powerquality Eaton ® BladeUPS ®...

  • Page 22: Wiring The External Battery Interconnect

    Interconnect.” Wiring the External Battery Interconnect NOTE Eaton recommends that the external batteries be supplied with overcurrent protection and a disconnect device at their source. If this protection is not provided, do not connect the wiring to the external battery source until all other wiring is complete.
  • Page 23 (see Figure 11). Breaker Figure 11. Access Customer Landing Section with Breaker Open (OFF) 5. Remove the protective cover from the front of the External Battery Interconnect. 164201794 Rev 3 www.eaton.com/powerquality Eaton ® BladeUPS ® External Battery Interconnect User's Guide...
  • Page 24 7. Torque the slotted screws of the wire terminals as follows: Positive and negative: 61.0 Nm (45 lb in) Ground: 47.5 ± 2.7 Nm (35 ± 2 lb in) Positive Negative Ground Figure 12. Landing Sites 164201794 Rev 3 www.eaton.com/powerquality Eaton ® BladeUPS ® External Battery Interconnect User's Guide...
  • Page 25 C A U T I O N Do not connect the External Battery Interconnect to the BladeUPS module at this time. 9. Continue to the following section, “Connecting the External Battery Interconnect to the BladeUPS 12i Module.” 164201794 Rev 3 www.eaton.com/powerquality Eaton ® BladeUPS ®...

  • Page 26: Connecting The External Battery Interconnect To The Bladeups 12I Module

    Figure 14. Breaker Figure 14. External Battery Interconnect with Breaker Open (OFF) 2. Verify that the BladeUPS battery breaker is open (O), as shown in Figure 15. 164201794 Rev 3 www.eaton.com/powerquality Eaton ® BladeUPS ® External Battery Interconnect User's Guide...
  • Page 27 5. Close the External Battery Interconnect breaker (ON), as shown in Figure 16. Breaker Figure 16. External Battery Interconnect with Breaker Closed (ON) | ) (see Figure 15). 6. Close the BladeUPS battery breaker ( 164201794 Rev 3 www.eaton.com/powerquality Eaton ® BladeUPS ® External Battery Interconnect User's Guide...
  • Page 28 INSTALLATION 164201794 Rev 3 www.eaton.com/powerquality Eaton ® BladeUPS ® External Battery Interconnect User's Guide...

  • Page 29: Specifications

    Current Rating Connection Compression Lug Nominal Voltage 240 Vdc Table 3. Electrical Output Voltage Rating 250 Vdc Current Rating Connection Anderson Connector Nominal Output Voltage 240 Vdc 164201794 Rev 3 www.eaton.com/powerquality Eaton ® BladeUPS ® External Battery Interconnect User's Guide...
  • Page 30 Battery Type 280 W/Cell (with 5 Ah Internal Battery)* 12000 73.2 11000 80.8 10000 90.0 9000 8000 7000 6000 5000 * Average discharge times are shown in Figure 17. 164201794 Rev 3 www.eaton.com/powerquality Eaton ® BladeUPS ® External Battery Interconnect User's Guide...
  • Page 31 SPECIFICATIONS Figure 17. Average Discharge Times (in Minutes) with a Wye Connected, Constant Power, and Linear Load 164201794 Rev 3 www.eaton.com/powerquality Eaton ® BladeUPS ® External Battery Interconnect User's Guide...
  • Page 32 SPECIFICATIONS 164201794 Rev 3 www.eaton.com/powerquality Eaton ® BladeUPS ® External Battery Interconnect User's Guide...

  • Page 33: Warranty

    If the Warranted Item is to be replaced by Eaton, but the End-User is unwilling or unable to supply a credit card number or purchase order for the value of the replacement product, Eaton will use commercially reasonable business efforts to ship (via standard ground shipment and at no cost to the End-User) the replacement Warranted Item to the End-User within one (1) business day after Eaton receives the defective product from the End-User.
  • Page 34 The remedies of the End-User set forth herein are exclusive and are the sole remedies for any failure of Eaton to comply with its obligations hereunder. In no event shall Eaton be liable for any indirect, incidental, special, or consequential damages of any kind or type whatsoever, resulting from, or in connection with, any claim or cause of action, whether brought in contract or in tort (including negligence or strict liability).
  • Page 35 Product, in accordance with the contract terms under which the Product is sold, Eaton shall have no obligation under this Warranty. Also during such time, the period of this Warranty shall continue to run and the expiration of this Warranty shall not be extended upon payment of any overdue or unpaid amounts.
  • Page 36 WARRANTY 164201794 Rev 3 www.eaton.com/powerquality Eaton ® BladeUPS ® External Battery Interconnect User's Guide...
