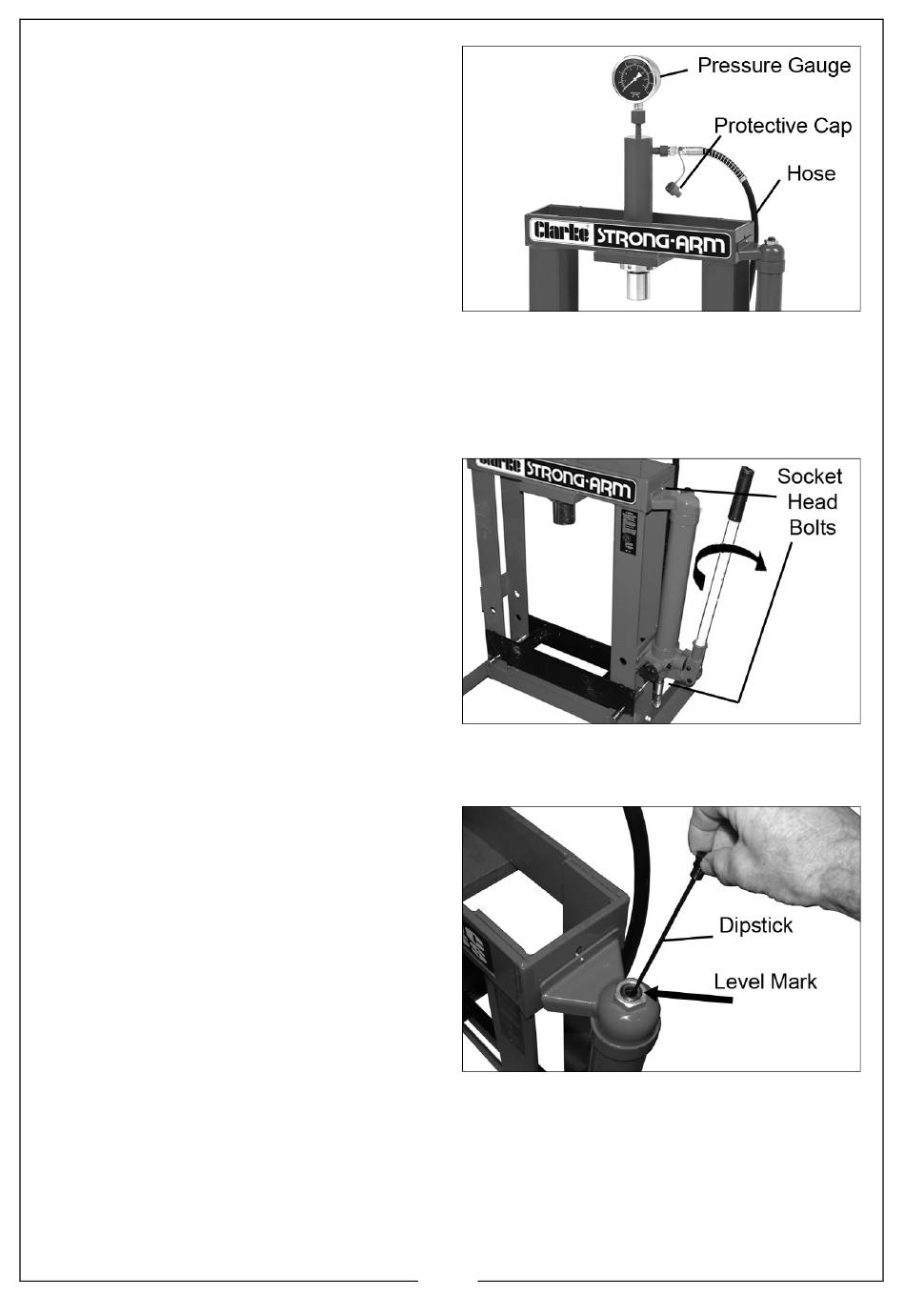

4. Unfasten the protective end cap
and screw the hose to the
threaded connection of the
hydraulic ram.
• We recommend sealing the thread
with PTFE tape. Take care not to let
any oil escape while connecting
the hose.
5. Screw the pressure gauge to the
connecting nut on top of the ram
cylinder.
• Seal the thread with PTFE tape,
ensuring it is tight when the gauge is
facing the front of the press.
6. Attach the pump assembly to the
frame using the fixing bolts and
washers. Fit one bolt first to bear
the weight and use the
adjustment provided by the
upper bolt.
• The pump can be installed on
either side of the frame but will
usually be assembled for a right-
handed press operator.
7. Screw the pump handle into the
pump actuating lever.
8. Unscrew the filler plug and
withdraw the dipstick. Check that
the pump is filled with hydraulic oil
up to the level shown on the
dipstick.
