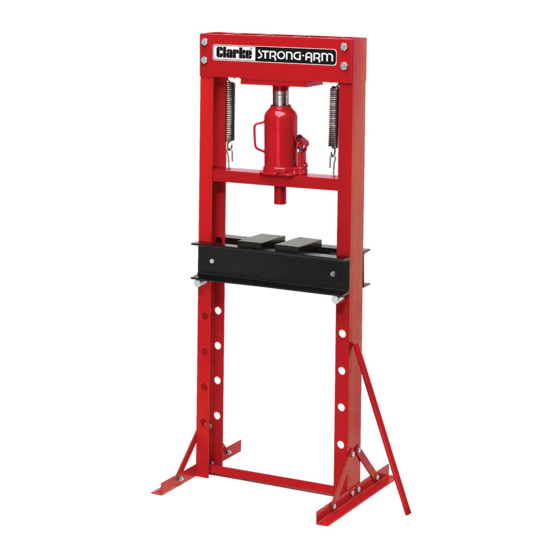

- Page 1 WARNING: Read these instructions before using the press 20 TONNE HYDRAULIC PRESS MODEL NO: CSA20EP PART NO: 7614052 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC07/22...
-
Page 2: Product Specifications
INTRODUCTION Thank you for purchasing this CLARKE 20 Tonne Hydraulic Press. Before attempting to operate the press it is essential that you read this manual thoroughly and carefully follow all instructions given. In doing so you will ensure the safety of yourself and that of others around you, and you can also look forward to the press giving you long and satisfactory service. -
Page 3: Safety Precautions
SAFETY PRECAUTIONS Due to the weight of the press, the help of an assistant will be beneficial during assembly and installation. ALWAYS operate the press with adequate light. Before starting work, check for signs of cracked welds, loose or missing bolts, or any other structural damage. - Page 4 UNPACKING Ensure the press components suffered no damage during transit and that all components are present. Should any loss or damage become apparent, please contact your CLARKE dealer immediately. DESCRIPTION DESCRIPTION Foot Bottle Jack Bottom Cross Member Spring Side Support...
- Page 5 ASSEMBLY The press must be firmly secured to a solid level floor such as concrete, using expansion bolts (not supplied). Holes are provided in the foot sections for this purpose. Do not locate your press where it will be open to the elements, as harsh weather conditions will damage the hydraulic parts.
- Page 6 6. Take the bottle jack unit, and by pressing down on the moving cross beam against the resistance of the springs, manoeuvre the jack so that the jack ram sits in the socket below the cross beam. 7. Using the small hex bolt and nut, secure the jack to the beam.
-
Page 7: Positioning The Bed
PREPARATION 1. Before using the press, purge any air from the jack by using the crimped end of the handle to open the release valve (turning it anti-clockwise) and pumping the jack several full strokes to eliminate any air bubbles. 2. -
Page 8: Operation
OPERATION WARNING: FAILURE TO HEED THE WARNINGS ON PAGE 3 MAY RESULT IN DAMAGE TO THE EQUIPMENT OR COMPONENT FAILURE RESULTING IN PROPERTY DAMAGE, PERSONAL, OR EVEN INJURY. NEVER USE EXTENSIONS TO THE RAM PUMPING HANDLE 1. The press is now ready for use. Place the workpiece on the bed. It must be completely stable and supported by packing or shims where required. -
Page 9: Maintenance
Oil should be level with the bottom of the hole. If necessary top up with CLARKE hydraulic oil, Part No. 3050830. This task is carried out with the ram fully retracted. -
Page 10: Troubleshooting
TROUBLESHOOTING Problem Probable Cause Remedy Pump unit will not work Dirt on valve seat/worn Bleed pump or have unit seals overhauled with new seals Pump will not produce Air-lock Open the release valve pressure and remove the oil filler Pump feels hesitant plug. - Page 11 COMPONENT PARTS - BOTTLE JACK DESCRIPTION DESCRIPTION Circlip Adjusting Screw Assembly Rectangular Ring Spring O-Ring Spring Holder Piston Rod Assembly Steel Ball Bearing, 3mm Bowl Washer Steel Ball Bearing, 5mm O-Ring Bowl Washer Circlip Pump Plunger Assembly Main Base Unit Cotter Pin Oil Plug Steel Ball Bearing, 6mm...
- Page 12 COMPONENT PARTS - FRAME Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
- Page 13 Bolt, M10 x 130 Handle Sleeve GUARANTEE This CLARKE product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt as proof of purchase. This guarantee is invalid if the product is found to have been abused or tampered with in any way, or not used for the purpose for which it was intended.
