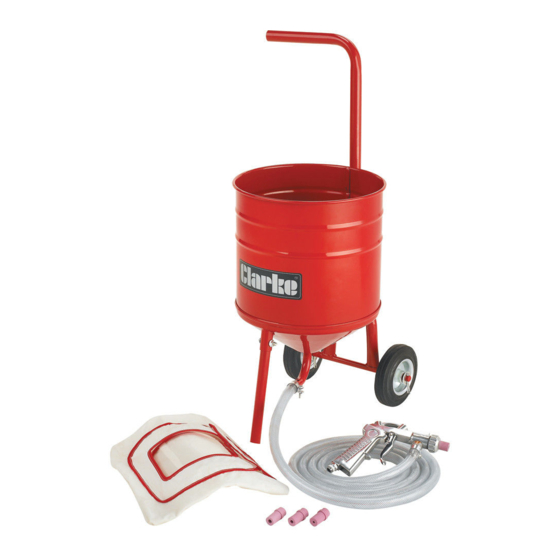

- Page 1 SIPHON FEED SANDBLASTER MODEL NO: CSB10 PART NO: 7640117 OPERATION & MAINTENANCE INSTRUCTIONS LS0513...
- Page 2 INTRODUCTION Thank you for purchasing this Clarke siphon feed sandblaster. Before you try to use this product, read this manual and follow the instructions carefully. In doing so you will ensure your safety and the safety of others around you. You can also look forward to a purchase that gives you long and satisfactory service.
-
Page 3: General Safety Rules
GENERAL SAFETY RULES Warning: Compressed air can be dangerous. Ensure that you are thoroughly familiar with all precautions relating to the use of compressors and compressed air supply. 1. Read this instruction manual before connecting this device to the compressor. 2. - Page 4 13. ALWAYS use appropriate air hoses and couplings and ensure that they are in good condition. If any parts are worn or damaged, they should be replaced immediately. 14. ALWAYS hold the tool firmly and maintain good balance. 15. ALWAYS ensure hose couplings are secure before use. 16.
- Page 5 UNPACKING Unpack your sand blaster and its accessories and make sure that the following items are present. Should there be any damage caused during transit contact your Clarke dealer immediately. Leg/Prop Sandblasting Gun Lower Handle/ Drum Assembly Stand (HTCBS1003) Axle Assembly...
- Page 6 ASSEMBLY Insert the split pin into the lower handle/axle assembly as shown Washer Washer on the right. 2. Slide a washer, the wheel, and another washer onto the axle. 3. Secure in place using a second split pin. Split Pin Split Pin Split Pin Wheel...
- Page 7 6. Place the upper handle onto the top of the lower handle/axle assembly as shown and use 1 long bolt, 1 washer and 1 nut to lock it into place. 7. Place a jubilee clip onto each end of the hose. 8.
-
Page 8: Operation
OPERATION USING YOUR SANDBLASTER Connect your sandblasting gun to a compressor (minimum 3hp) via the 3/8” hose adaptor located at the base of the handle. Set the air pressure on your air compressor to 100 -150 psi. 1. Connect a air hose (sold separately) between your air compressor, and the hose fitting on the sandblasting gun. -
Page 9: Maintenance
• Replace any parts which appear worn. PARTS AND SERVICING For Parts & Servicing, please contact your nearest dealer, or CLARKE International, on one of the following numbers. PARTS & SERVICE TEL: 020 8988 7400 PARTS & SERVICE FAX: 020 8558 3622 or e-mail as follows: PARTS: Parts@clarkeinternational.com... -
Page 10: Specifications
SPECIFICATIONS CSB10 Sand Grade Type Up to 60 Grit (Clarke AOP60) Abrasive Material Aluminium Oxide, Garnet Powder, Glass Bead Drum Capacity: (gallons) 3.7 UK Sand Capacity: (kg/lbs) 22.6/50 Operating Pressure: (psi) 100-150 Flow Rate Req. (cfm) 10-16 Compressor Size Hp (Minimum) Gun Inlet Size: 3/8”... - Page 11 NOTES...
