Commax CDS-481L Use And Care Manual page 9

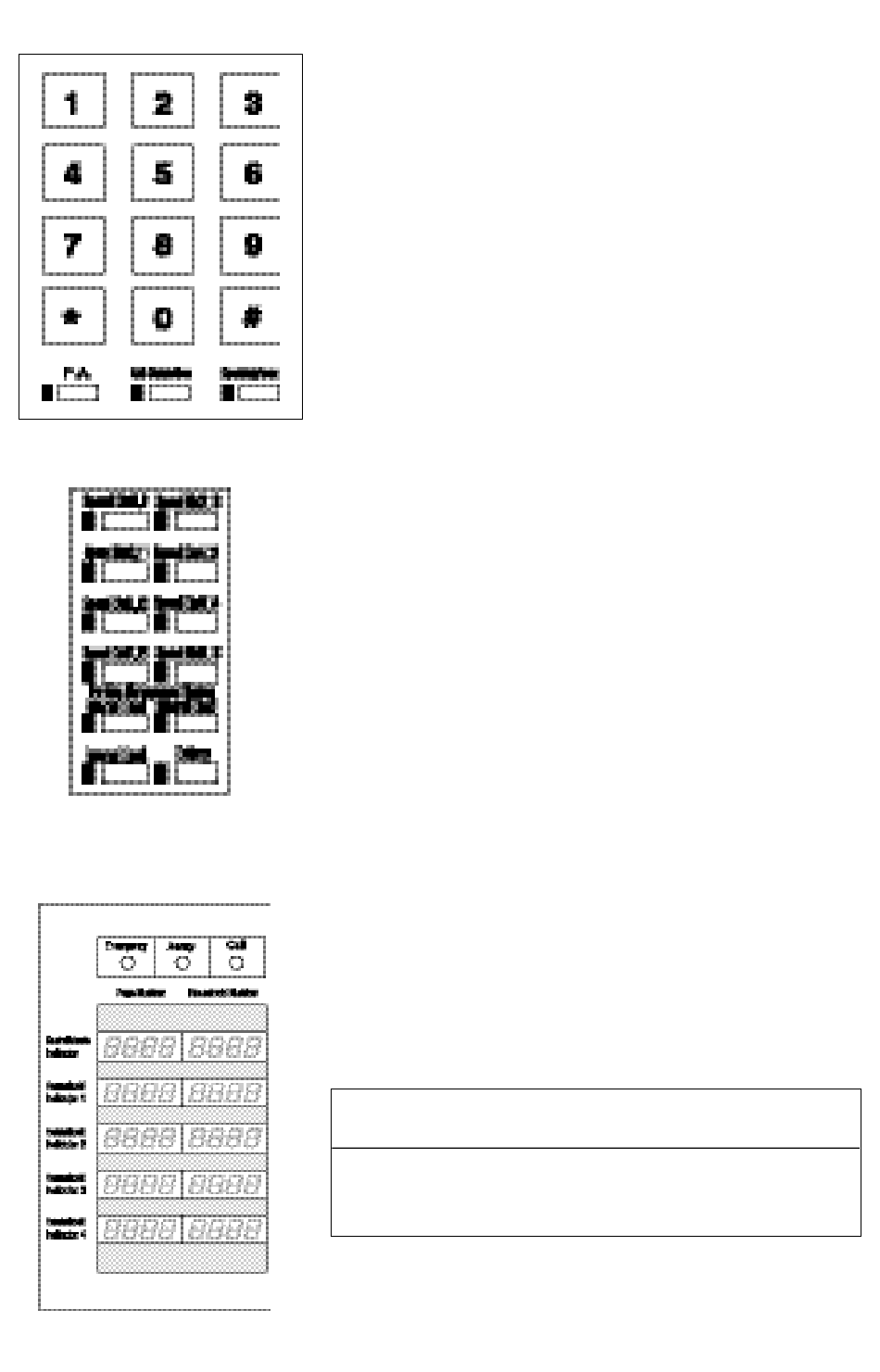

* Key Pad: Used to enter in numbers.
* Building Button: Used to distinguish buildings when
entering Household numbers.
* Call Button (#): Used to page after entering a
Household number.\
* P.A. Button/Lamp: Used for announcements among
Guardhouses
* Call Connect Button/Lamp: Used to connect a
Hou sehold to another Household or another
Guardhouse.
* Speakerpho ne Button/Lamp: Activates the
speakerphone.
* Speed Dial Buttons (1 to 8): Often dialed numbers.
* Line Indicators (LED) Red/Green: Indicates the status of each
outside line (1 to 16).
* Internal Line Indicator (LED): Indicates the status of each
internal line (1 to 3).
* Confirmation Button: Used when verifying a Household using
Vehicle Number.
* Vehicle Button: Used to page a Household using Vehicle
Number. (Two vehicles can be registered per household)
* Emergency Indicator (Blinks when an Emergency Page has
been made)
* Away Indicator (Blinks when an Emergency Page or Call has
been made from a Household in Away Mode)
* Page Indicator (Blinks with paging and other data
communication)
*The lamp will continuously blink when an error or short has
been detected along the Data Line.
*The following messages are indicated on the LCD:
Int Com Line Err
Ext Com Line Err
* Guardhouse Indicator Section
* Household Indicator Section
- 9 -
: Internal Line Error
: Outside Line Error
