User Manual

COLOR VIDEO DOOR PHONE CDV-35HM
Thank you for purchasing COMMAX products.
Thank you for purchasing COMMAX products.
Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
instructions to use a product exactly.
instructions to use a product exactly.
The company is not responsible for any safety accidents caused by abnormal operation of the product.
The company is not responsible for any safety accidents caused by abnormal operation of the product.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Fine View CDV-35HM and is the answer not in the manual?

Questions and answers

Related Manuals for Commax Fine View CDV-35HM

Summary of Contents for Commax Fine View CDV-35HM

  • Page 1: User Manual

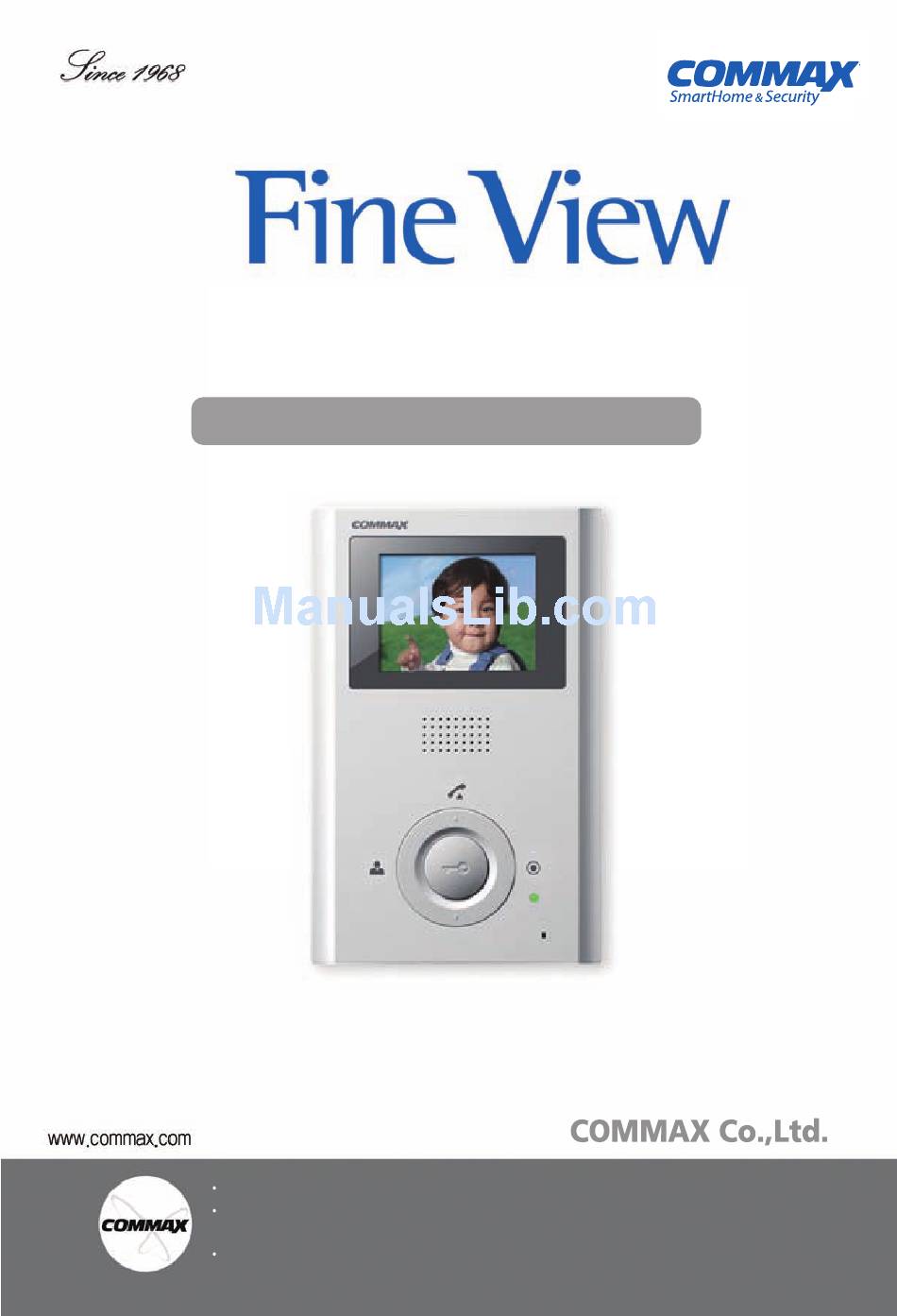

    User Manual COLOR VIDEO DOOR PHONE CDV-35HM Thank you for purchasing COMMAX products. Thank you for purchasing COMMAX products. Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow instructions to use a product exactly.

  • Page 2: Table Of Contents

    1. Greetings Thank you very much for purchasing of COMMAX products. Please read carefully this user manual and follow its rules. This intercom can be used in offices, and shopping outlets, and provide...

  • Page 3: Warnings And Caution

    2. Warnings and caution Please follow the things described below in order to prevent any danger or property damage. Prohibition. Warning No disassembly It may cause a serious damage or injury if violated. No touch Must follow strictly. Caution Shows plugging out the power cord It may cause a minor damage or injury if violated.
  • Page 4 Warning Please don’ t disassemble, If an abnormal sound, burning Please don’t insert any Please use only the designated repair or rebuild this product smell or smoke is coming out metallic or burnable materials batteries for the products of arbitrarily (please contact the of the product, please plug out into the ventilation hole.

  • Page 5: Part Names And Functions

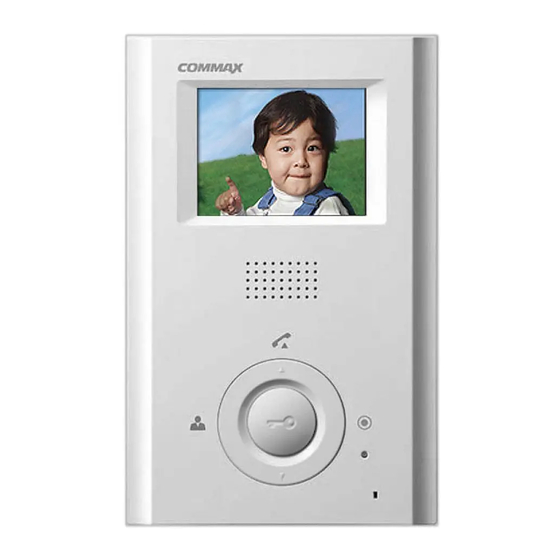

    3. Part names and functions Part Name Part Name Part Name Monitor Door Open Button DOWN Button Speaker Interphone Button Calling volume Adjustment Talk Button Power Indicator (LED) Talking volume Adjustment Monitoring Button Menu Button Power Switch No function Select Button No function Microphone UP Button...

  • Page 6: Operation

    4. Operation Visitor calls 1. When a visitor presses the talk button on the camera, the monitor emits the chime melody and shows the visitor’ s image on the screen. 2. Press the TALK( ) button to talk with the visitor. (Maximum 60 seconds are given to talk with the visitor.) 3.
  • Page 7 Save of video or image while on monitoring or talking mode. 1. To save as video. (Max. 10 EA, each 5 seconds of videos are saved) Press and hold the SELECT button, to enter RECORD mode. When you enter RECORD mode, the word ‘ record’ is shown up and disappear on right-top side of the screen.
  • Page 8 MENU Function. 1. TIME : Time setting function a. Press the MENU button in standby status to enter the MENU screen. [MENU] TIME DELETE ALL AUTO SAVE LANGUAGE FACTORY SET EXIT b. Move to TIME section with UP/DOWN buttons and press the SELECT button. c.
  • Page 9 4. LANGUAGE : Function for selecting language a. Press the MENU button in standby status to enter the MENU screen. b. Move to LANGUAGE section with UP/DOWN buttons and press the SELECT button. c. After entering LANGUAGE mode, choose the one between ENGLISH/RUSSIAN with UP/DOWN buttons and press the SELECT button.

  • Page 10: Installation And Wiring

    5. Installation and Wiring 1) Monitor Installation 2) Standard Height of Monitor SCREW M3X6 (1EA) Unit : cm SCREW T4X18 (4EA) Unit : cm 3) Wiring Diagram MONITOR 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4...

  • Page 11: Package Contents

    HANDS FREE type (Voice Switch) Display 8.89Cm(3.5”) COLOR TFT-LCD Call sound COMMAX chime : 2 times, Interphone : Electric chime Video duration time Stand-by : 30 seconds, On the line : 60 seconds Distance Entrance : 50m (Ø0.5), Interphone : 20m (Ø0.65)

  • Page 12: Troubleshooting

    8. Trouble shooting. If you think that the product has trouble, please first check below contents before you ask a repair. Troubles Check Point Actions The power supply is 1. Please connect the 1.The power supply ● power supply cord not on.
  • Page 13 Memo...
  • Page 14 513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Int’l Business Dept. Tel. : +82-31-7393-540~550 Fax. : +82-31-745-2133 Web site : www.commax.com PM0735HM0010 Printed In Korea / 2011.03.104...
