User Manual

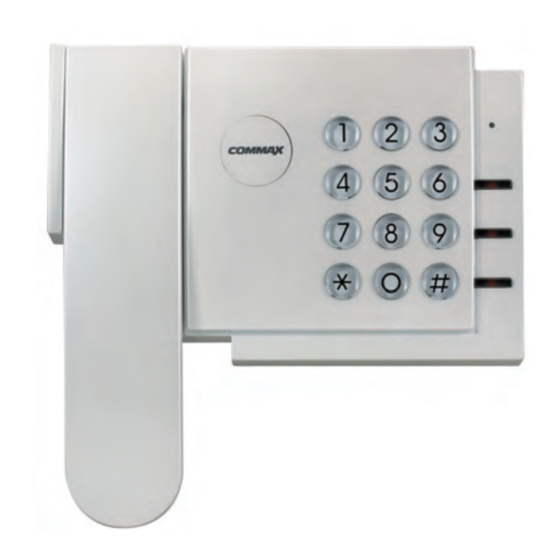

GUARD STATION(Gate View System)
• Thank you for purchasing COMMAX products.
• Thank you for purchasing COMMAX products.
• Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
• Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
instructions to use a product exactly.
instructions to use a product exactly.
• The company is not responsible for any safety accidents caused by abnormal operation of the product.
• The company is not responsible for any safety accidents caused by abnormal operation of the product.
www.safemag.ru
CDS-4GS
www.safemag.ru
Advertisement
Table of Contents
Related Manuals for Commax CDS-4GS
Summary of Contents for Commax CDS-4GS
-
Page 1: User Manual
User Manual GUARD STATION(Gate View System) CDS-4GS • Thank you for purchasing COMMAX products. • Thank you for purchasing COMMAX products. • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow instructions to use a product exactly. -
Page 2: Table Of Contents
10. Miscellaneous ..........8 1. Greetings Thank you very much for purchasing of COMMAX products. Please read carefully this user manual and follow its rules. -
Page 3: Warnings And Caution
www.safemag.ru 2. Warnings and caution Please follow the things described below in order to prevent any danger or property damage. Warning Prohibition. It may cause a serious damage or No disassembly injury if violated. No touch Must follow strictly. Caution Shows plugging out the power cord It may cause a minor damage or without an exception... - Page 4 www.safemag.ru Warning Please don’ t disassemble, If an abnormal sound, burning Please don’t insert any Please use only the designated repair or rebuild this product smell or smoke is coming out metallic or burnable materials batteries for the products of arbitrarily (please contact the of the product, please plug out into the ventilation hole.
-
Page 5: Parts Name And Functions
www.safemag.ru 3. Parts Name and functions. Description Description Handset Ringer Volume Control button Speaker MASTER/SLAVE select switch Dial buttons Power ON/OFF switch Power indicator Connection terminal for Call button (CALL) lobby phone Door Open button (OPEN) Power input port(DC 12V) Ringer volume control button : Lower or increase the ringer volume. -
Page 6: Communication With A Household
CDS-4GS, which is a guard station unit in Gate view system. Another CDS-4GS is connectable as Slave unit. (Power indicator is on when power switch is on) Note 1. Put down the handset correctly after finishing talk. (Inappropriate positioning of handset can be a cause of busy line. -
Page 7: Communication With A Lobby Phone
www.safemag.ru 5. Communication with a lobby phone. 1) Ringer sound is heard when receiving a call from a lobby phone. 2) Communication starts when being picked up the handset. 3) Press the "Door open" button to open the entrance. (The communication is finished after door is open.) 4) Put the handset properly when the communication is finished. -
Page 8: Wiring Diagram
www.safemag.ru 8. Wiring diagram. 9. Specifications. Item Descriptions Wiring Common lobby phone : 4 wires Communication way Full duplex Guard station Common Distance Ø0.65mm lobby household Max. 1km www.safemag.ru... -
Page 9: Miscellaneous
www.safemag.ru 10. Miscellaneous Please carefully read this User’s Guide before calling service man After checking the entire check list, please contact customer service center. We will do our best to make you satisfy with our services. www.safemag.ru... - Page 10 513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Int’l Business Dept. : Tel.; +82-31-7393-540~550 Fax.; +82-31-745-2133 Web site : www.commax.com Printed In Korea / 2010.09.103 www.safemag.ru...
