User Manual

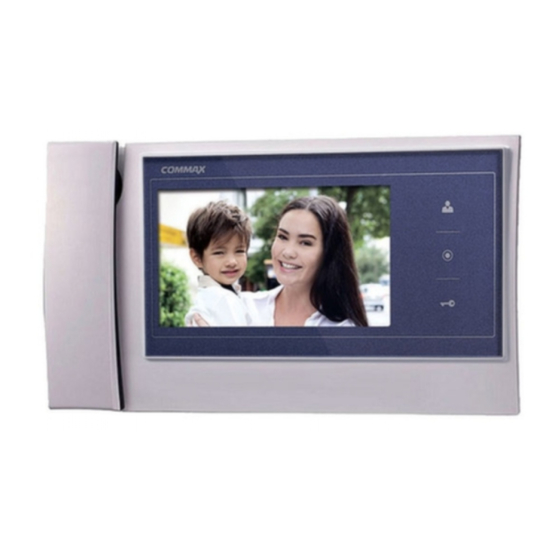

Color video door phone CDV-70KR3
• Thank you for purchasing COMMAX products.
• Thank you for purchasing COMMAX products.
• Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
• Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
instructions to use a product exactly.
instructions to use a product exactly.
• The company is not responsible for any safety accidents caused by abnormal operation of the product.
• The company is not responsible for any safety accidents caused by abnormal operation of the product.
www.safemag.ru
www.safemag.ru
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Commax CDV-70KR3
Summary of Contents for Commax CDV-70KR3
- Page 1 User Manual Color video door phone CDV-70KR3 • Thank you for purchasing COMMAX products. • Thank you for purchasing COMMAX products. • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow •...
-
Page 2: Table Of Contents
Greetings ● Thank you for choosing COMMAX. ● Please read this manual carefully before you use the product. Table of contents Greetings ........................1 Table of Contents .....................1 1. Warnings and caution ...................2 2. Product Overview....................4 3. How to use ......................5 4. -
Page 3: Warnings And Caution
www.safemag.ru 1. Warnings and caution Please follow the things described below in order to prevent any danger or property damage. Prohibition. Warning No disassembly It may cause a serious damage or injury if violated. No touch Must follow strictly. Caution Shows plugging out the power cord It may cause a minor damage or injury if violated. - Page 4 www.safemag.ru Warning Please don’ t disassemble, If an abnormal sound, burning Please don’t insert any Please use only the designated repair or rebuild this product smell or smoke is coming out metallic or burnable materials batteries for the products of arbitrarily (please contact the of the product, please plug out into the ventilation hole.
-
Page 5: Product Overview
www.safemag.ru 2. Product Overview Description Description HANDSET SELECT BUTTON UP BUTTON(△) / MONITOR MONITOR BUTTON DOWN BUTTON(▽) INTERPHONE BUTTON POWER SWITCH DOOR RELEASE BUTTON EXTERNAL CONNECTION 2ND DOOR RELEASE BUTTON TERMINAL RINGTONES VOLUME MENU BUTTON ① HANDSET ② MONITOR: The image of visitor is shown. ③... -
Page 6: How To Use
www.safemag.ru 3. How to use Call from a visitor ① When the visitor calls from the entrance(door camera), the calling sound rings and the image of the visitor is shown on the screen. ② By picking up the handset, you can talk with the visitor. If you press door release button, door will be released.(Door release works only while talking and it is possible only when the door camera is interlocked with door release function.) ③... - Page 7 (the door release function is only enabled while in a monitoring mode) The same rule applies to COMMAX interphone series. If you press the ‘2 Door Release’ button while in a monitoring mode, the 2 door is released.
-
Page 8: Settings
www.safemag.ru 4. Settings You can adjust DOOR VIDEO SET, UTILITY and check INFORMATION(model name &version) with (UP)▵‚ / (DOWN)▿ button after pressing Menu button on the right of the product in video talk mode or stand-by mode. •Products settings need the following 4 buttons on the right of product. * Start Menu / Exit : MENU button * Select and in-put : SELECT button * Move up / Move right : ▵(UP button) * Move down / Move left : ▿(DOWN button) - Page 9 www.safemag.ru ④ To complete the set, press SELECT button. (2) SCREEN MODE : to set for screen ratio ① ZOOM : Zoon in(expansion) image maintaining actual ratio(4:3) is shown. (full of the screen) ② 4:3 : Image of 4:3 ratio without expansion is shown.(This is actual ratio for camera) ③...
-
Page 10: Installation
www.safemag.ru 5. Installation 1. Installation Method of camera monitor Note ① Avoid the range of direct sunlight ② Recommended height is pertinent from 1450 ~ 1500mm ③ Avoid the installation near magnetic activity, humid temperatures and gas 2. Installation Method of camera Note ①... -
Page 11: Wiring
www.safemag.ru 6. Wiring The wiring of this equipment is as follows. Camera connector polarity 1. RED : VOICE 2. BLUE : GND 3. YELLOW : POWER(+12V) 4. WHITE : VIDEO Wiring precautions Each device should be connected by separated cables. If you use UTP CABLE[CAT.5] for CAMERA1and CAMERA2, 2 lines of UTP cable are required. - Page 12 www.safemag.ru DOOR Camera Wiring CAM1 CAM2 • If you use UTP CABLE[CAT.5], connect the rest 4 lines to GND after connecting 4 lines between monitor and camera. INTERPHONE Wiring • If you use UTP CABLE[CAT.5], connect the rest 4 lines to GND after connecting 4 lines between monitor and interphone.
-
Page 13: Package Contents
7. Package Contents ② Bracket for wall mount ③ Manual ① Body of CDV-70KR3 ⑤ M 3 X 6(1EA) ④ T4 X 18(4EA) Screw for body Screw for wall mount ⑥ 4P Connector(2EA) ① Monitor(CDV-70KR3) ② Wall bracket for monitor ③... -
Page 14: Caution In Use
1. Turn on the power switch. 2. Please contact your local agent for product maintenance when you have a problem in use of CDV-70KR3 3. For your safety, power switch with a safety device must be used in your building. - Page 15 513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Int’l Business Dept. Tel. : +82-31-7393-540~550 Fax. : +82-31-745-2133 Web site : www.commax.com PM0770KR2010 Printed In Korea / 2014.03.104 www.safemag.ru...
