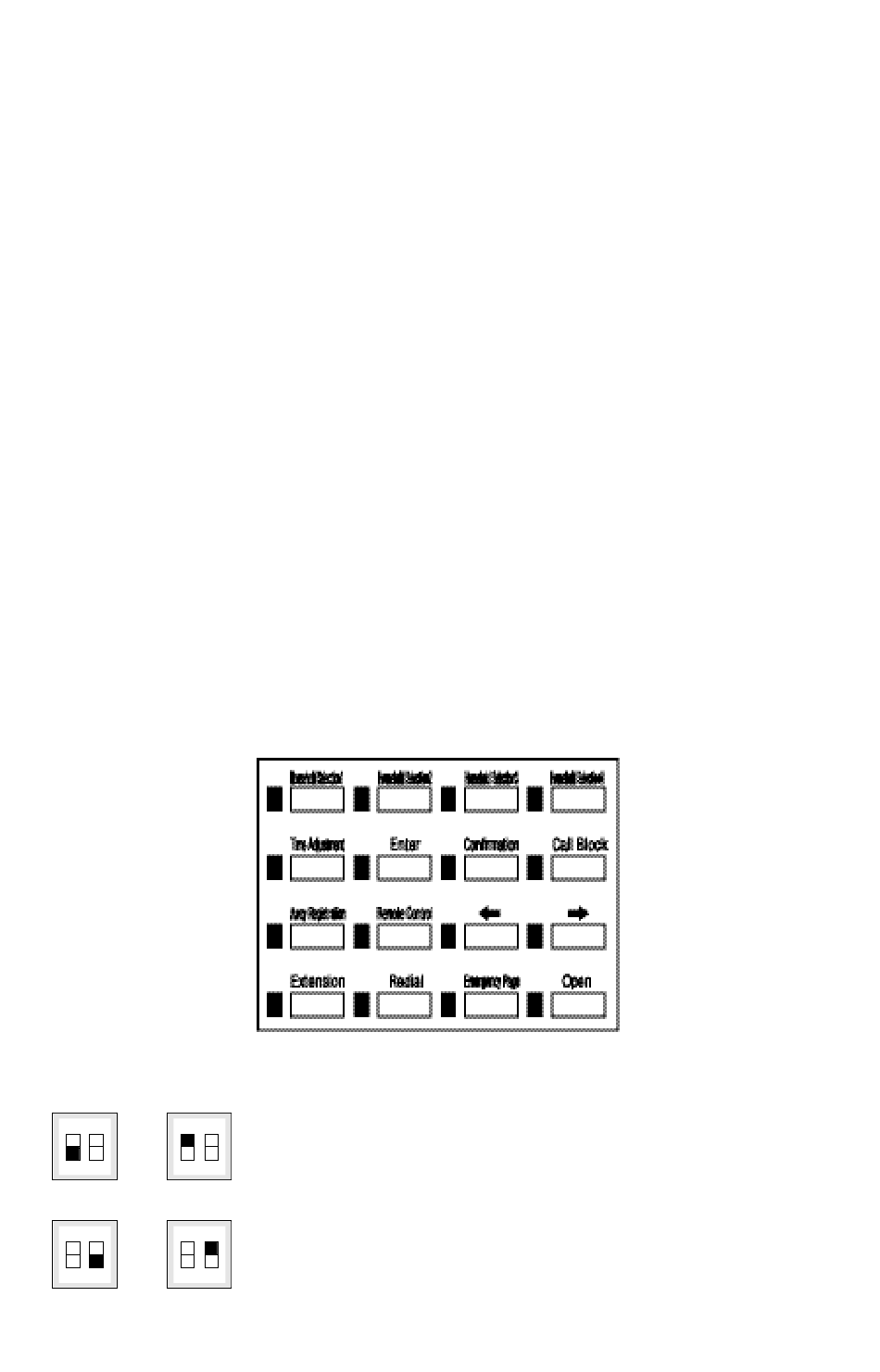

3-2. Essentials

*Household Selection Button/Lamp: Used to select one of the Households indicated on the
Household Indicator Section.
*Time Adjustment Button/Lamp: Used to adjust time.
*Enter Button/Lamp: Used to execute the Guardhouse Interphone's programs.\
*Confirmation Button/Lamp: Used to confirm changes made to data within the Guardhouse
Interphone's programs.
*Call Block Button/Lamp: Forwards calls to other Guardhouses or Households. (Available only
when a forwarding number has been entered in Pr03)
* Away Registration Button/Lamp: Controls the Household Videophone's Away feature from the
Guardhouse.
* Remote Control Button/Lam: Used to verify and adjust various information of the Household
Videophone.
* ( ) Button/Lamp: Used to confirm or make changes to entered data.
* Extension Button/Lamp: Used to assign Multi Sub numbers to the Household Videophone and
in various other extension processes.
* Redial Button/Lamp: Pages the last number paged.
* Emergency Page/Lamp: Pages to connect to a Household with an emergency.
* Open Button/Lamp: Used to release the Main Entrance.
Selection Switches
ON
1 2 1
OFF
ON
1 2 1
OFF
No. 1: OFF - cannot be connected to a computer.
: ON - can be connected to a computer.
ON
: (Computer connection feature is optional)
2
ON No. 2: OFF - Household emergencies are received by all installed
Guardhouse Interphones.
ON
: ON - Household emergencies are received only by the
2
corresponding Guardhouse.
ON
