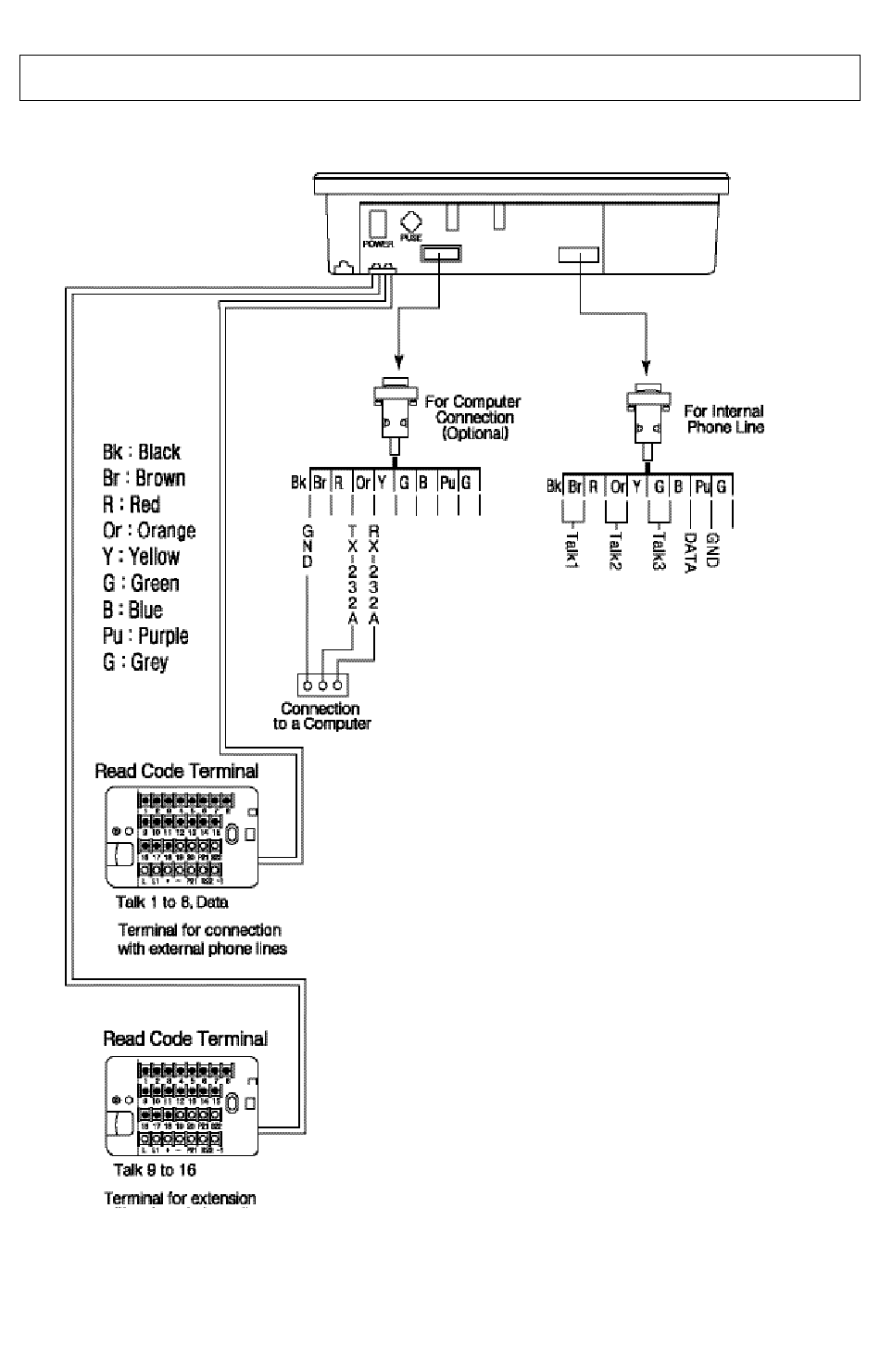

18. Wiring Method
1) Guardhouse Interphone (CDS-481L)
1-2 : Call 1
(TIV 0.65mm×2C Non Polar)
3-4 : Call 2
(TIV 0.65mm×2C Non Polar)
5-6 : Call 3
(TIV 0.65mm×2C Non Polar)
7-8 : Call 4
(TIV 0.65mm×2C Non Polar)
9-10 : Call 5
(TIV 0.65mm×2C Non Polar)
11-12 : Call 6
(TIV 0.65mm×2C Non Polar)
13-14 : Call 7
(TIV 0.65mm×2C Non Polar)
15-16 : Call 8
(TIV 0.65mm×2C Non Polar)
17 : Data
(TIV 0.65mm Polar)
18 : GND
(TIV 0.65mm Polar)
1-2 : Call 1
(TIV 0.65mm×2C Non Polar)
3-4 : Call 2
(TIV 0.65mm×2C Non Polar)
5-6 : Call 3
(TIV 0.65mm×2C Non Polar)
7-8 : Call 4
(TIV 0.65mm×2C Non Polar)
9-10 : Call 5
(TIV 0.65mm×2C Non Polar)
11-12 : Call 6
(TIV 0.65mm×2C Non Polar)
13-14 : Call 7
(TIV 0.65mm×2C Non Polar)
15-16 : Call 8
(TIV 0.65mm×2C Non Polar)
- 49 -
