User Manual

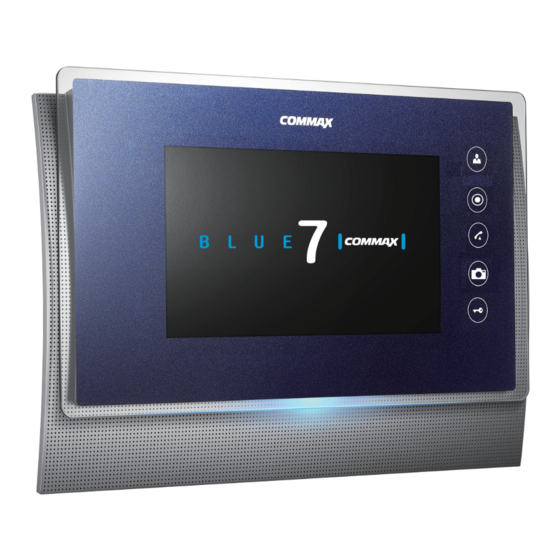

Color video door phone CDV-70UM
Thank you for purchasing COMMAX products.
Thank you for purchasing COMMAX products.
Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
instructions to use a product exactly.
instructions to use a product exactly.
The company is not responsible for any safety accidents caused by abnormal operation of the product.
The company is not responsible for any safety accidents caused by abnormal operation of the product.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CDV-70UM and is the answer not in the manual?

Questions and answers

Related Manuals for Commax CDV-70UM

Summary of Contents for Commax CDV-70UM

  • Page 1: User Manual

    User Manual Color video door phone CDV-70UM Thank you for purchasing COMMAX products. Thank you for purchasing COMMAX products. Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow instructions to use a product exactly.

  • Page 2: Table Of Contents

    Greetings Thank you for choosing COMMAX. Please read this manual carefully before you use the product. Table of contents Greetings ........................1 Contents table ......................1 1. Warnings and caution ...................2 2. Product Overview....................4 3. How to use this product ..................6 4. GUI Function .....................12 5.

  • Page 3: Warnings And Caution

    1. Warnings and caution Please follow the things described below in order to prevent any danger or property damage. Prohibition. Warning No disassembly It may cause a serious damage or injury if violated. No touch Must follow strictly. Caution Shows plugging out the power cord It may cause a minor damage or injury if violated.
  • Page 4 Warning Please don t disassemble, If an abnormal sound, burning Please don t insert any Please use only the designated repair or rebuild this product smell or smoke is coming out metallic or burnable materials batteries for the products of arbitrarily (please contact the of the product, please plug out into the ventilation hole.

  • Page 5: Product Overview

    2. Product Overview Description Description LCD MONITOR RECEIVER VOLUME CONTROL LEFT SPEAKER RINGER VOLUME CONTROL POWER AND MOOD LIGHTING MENU BUTTON MICROPHONE SELECT BUTTON RIGHT SPEAKER UP BUTTON MONITOR BUTTON DOWN BUTTON INTERPHONE BUTTON POWER ON/OFF TALK BUTTON T-FLASH CARD SLOT IMAGE SAVE BUTTON EXTERNAL CONNECTION 10 DOOR RELEASE BUTTON...
  • Page 6 Caution Please, do not turn on/off, insert or remove Micro SD card during saving, capture image or recording video. It might be caused of malfunction, harm or damage goods. (User may lose data in embedded memory and Micro SD card or it may be reason of malfunction) •...

  • Page 7: How To Use This Product

    3. How to use this product 3-1. Stand-by mode When you turn on the video phone, The LED(Blue) on the bottom of LCD Display will be turned on. And then you can see a LOGO on the LCD screen, after booting sound, it will be stand-by mode.
  • Page 8 b) In case of connecting CCTV(PAL) Push SELECT+DOWN buttons on side at the same time for a few seconds, it will be changed to PAL mode. Caution : If you change video format, the stored image in SD CARD will be deleted.
  • Page 9 It is possible to communicate with interphone for 60 seconds, You can also extend more 60 seconds by pressing call button on the video phone or interphone. When the time is over(60 seconds), it turns to stand-by mode automatically. You can talk with CAMERA2 by calling CAMERA2 during communicating with CAMERA1, the screen will be sequentially shown from CMAERA1 to CAMERA2 when user press (monitoring button).
  • Page 10 - If the short pin are inserted, switched stand-by mode. - No CCTV2 signal, transferred (e) (e) CAM2 (Full) (f) CCTV2 (Full) - No CCTV2 signal, switched stand-by mode - Monitoring sequence during communicating (a) CAM1 (Full) + CCTV1 (PiP) - Condition: No CCTV1 signal, Only CA1 (Full) is shown.
  • Page 11 Folder and File management Create basic folder . \MOVIE\00\ (Video storage folder) . \PICTURE (Captured image storage folder ) . \ALBUM (Digital album image storage folder) When the icon is displayed, please built in data or back up into Micro SD card.  SAVE FILE and FILE FORMAT 120916_130502_D1.jpg Still image...
  • Page 12  The number of saving files for capacity Micro SDHC Card Capacity 4 GByte 8 GByte 16 GByte Captured image The number of max 100 cuts max 400 cuts max 800 cuts Videos (60 Second) Video time 200 min 400 min 800 min (10) Proximity Sensor - The function which is to record and save image automatically if the sensor is...

  • Page 13: Gui Function

    4. GUI Function (1) Power On When you turn on the product, "COMMAX" logo is displayed in the screen and beep sound comes out. After beep sound, screen is turned off and become stand-by mode. (2) Main menu (2) Main menu Press Menu button at the side of the product to enter setting menu screen..
  • Page 14 Button details Icon Button Function Move right(Checking visitor Settings Digital album) Move left(Checking visitor Settings Digital album) Select. (3) Check recorded image (Checking visitor) Select on between video and captured image. Button details Icon Button Function Move right Move lef Select.
  • Page 15 Button details Icon Button Function Move to next page Move to previous page Move among Quad split-screen Show one image Move top menu...
  • Page 16 (4) Checking recorded image You can see each full image by selecting one in quad split-screen. It is possible to delete each one. Button details Icon Button Function Move to next page Move to previous page Move among Quad split-screen Show one image Move top menu...
  • Page 17 (5) Delete image If you implement [Current page Delete] function from Save Image check, you will see below images. Button details Button Function Select [Yes] Select [No] Show next page after deleting image...
  • Page 18 (6) Settings Menu Time, Display, Language, Setting are adjustable. Button details Icon Button Function Move right (Time Display Language setting) Move left (Time Display Language setting) Select Move top menu...
  • Page 19 (7) Time setting When you see saving image it can be listed the time information. It can be settled year/month/day/hour/minute. When you set, you can change only the blue that active. If you press the button you can change the actual time. if not supply power for more than 48 hours, It will be initialized setting the time.
  • Page 20 (8) Screen Settings You can adjust the brightness, contrast and color etc. Button details Icon Button Function Moving the right Moving the left Select a menu It can be changed all settings to default. All setting will be initialized by 50. go to the top menu...
  • Page 21 (9) Setting the Language You can set the language menu. (All of base setting is in English) When you move the key, please press the select button and it will be displayed V. Button details Icon Button Function Moving the right Moving the left Select a menu go to the top menu...
  • Page 22 (10) Settings menu This menu can set Storage setting(still image/video), device initialization, automatically/ manually saving setting, proximity sensor , electronics album. Button details Icon Button Function Moving the right Moving the left Select a menu go to the top menu...
  • Page 23 (11) Storage Setting You can select saving image by calling camera. When you set the video, can make video and voice recording If set the stop image it will be saved the just image. Button details Icon Button Function Moving the right Moving the left Menu selection.
  • Page 24 (12) All initialization This function can initialization mode except time function. Button details Icon Button Function Moving the right Moving the left Select a menu go to the top menu...
  • Page 25 (13) Automatically / manually save settings When you save the image, you can set auto mode and manual mode. Button details Icon Button Function Moving the right Moving the left Select a menu go to the top menu...
  • Page 26 (14) Proximity sensors used When person come to the camera near the proximity sensor save the image. Initial set is "DISABLE". Button details Icon Button Function Moving the right Moving the left Select a menu go to the top menu...
  • Page 27 (15) Electronic album-effect - E-album run to set image representation. - No effect : when output the image and the next image also output. - Fade-in : sprayed the form of point and output the image. - Move : slide-image output. Button details Icon Button...
  • Page 28 (16) Electronic album activation functions If you activate electronic album, the main menu will be displayed If you press select menu, this menu it will be disappeared and the marking will be released. When activate the electronic album, 30 seconds after the function will be executed.
  • Page 29 Button details Icon Button Function Moving the right Moving the left Select a menu go to the top menu (17) Interphone When you press the button below image will pop up, and (interphone button) (talk button) will blink. Then, click (interphone button) to call the interphone.
  • Page 30 (18) Camera Calling When you press the call button in Camera or press in videophone, the image of camera and CCTV will be appeared. The left icon tells the status of calling The right icon is the image saving. Button details Button Function Standby mode: camera monitoring Camera call and status of monitoring :...
  • Page 31 (19) Door open. When you call you can press the button of open the door and then open. The icon will appear the screen. Button details Button Function Standby mode : Camera monitoring camera call and monitoring: camera1/ camera 2 Conversion camera call status: connect the call Intercom call to a third party call Call start / end Camera call and monitoring status : Save the image manually...

  • Page 32: Wiring Methods

    5. Wiring methods Wiring is as bellow. Camera connector polarity (4wires)  RED : Sound signal  BLUE : GND  YELLOW : Power(+12V)  WHITE : image signal Sensor connector of Polarity (3 wires)  RED :Power(+12V)  BLUE : GND  YELLOW : sensor signal CCTV Connector of polarity(2wires)  RED : Image signal  BLUE : GND...

  • Page 33: Components

    Please supply separate power to CCTV CAMERA. Please select coaxial cable depending on the distance of the camera. # : RED--(VIDEO) # : Blue-(GND) 6. Components  Manual  Bracket for wall mount  Body of CDV-70UM  2P(2EA)  3P(2EA)  4P(3EA) Connector Connector Connector...

  • Page 34: Caution In Use

    1. Turn on the power switch. 2. Please contact your local agent for product maintenance when you have a problem in use of CDV-70UM 3. For your safety, power switch with a safety device must be used in your building.
  • Page 35 513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Int’l Business Dept. Tel. : +82-31-7393-540~550 Fax. : +82-31-745-2133 Web site : www.commax.com PM0270UM0010 Printed In Korea / 2012.10.104...
