16) Installing Numerous Videophones in a Household
※
Note

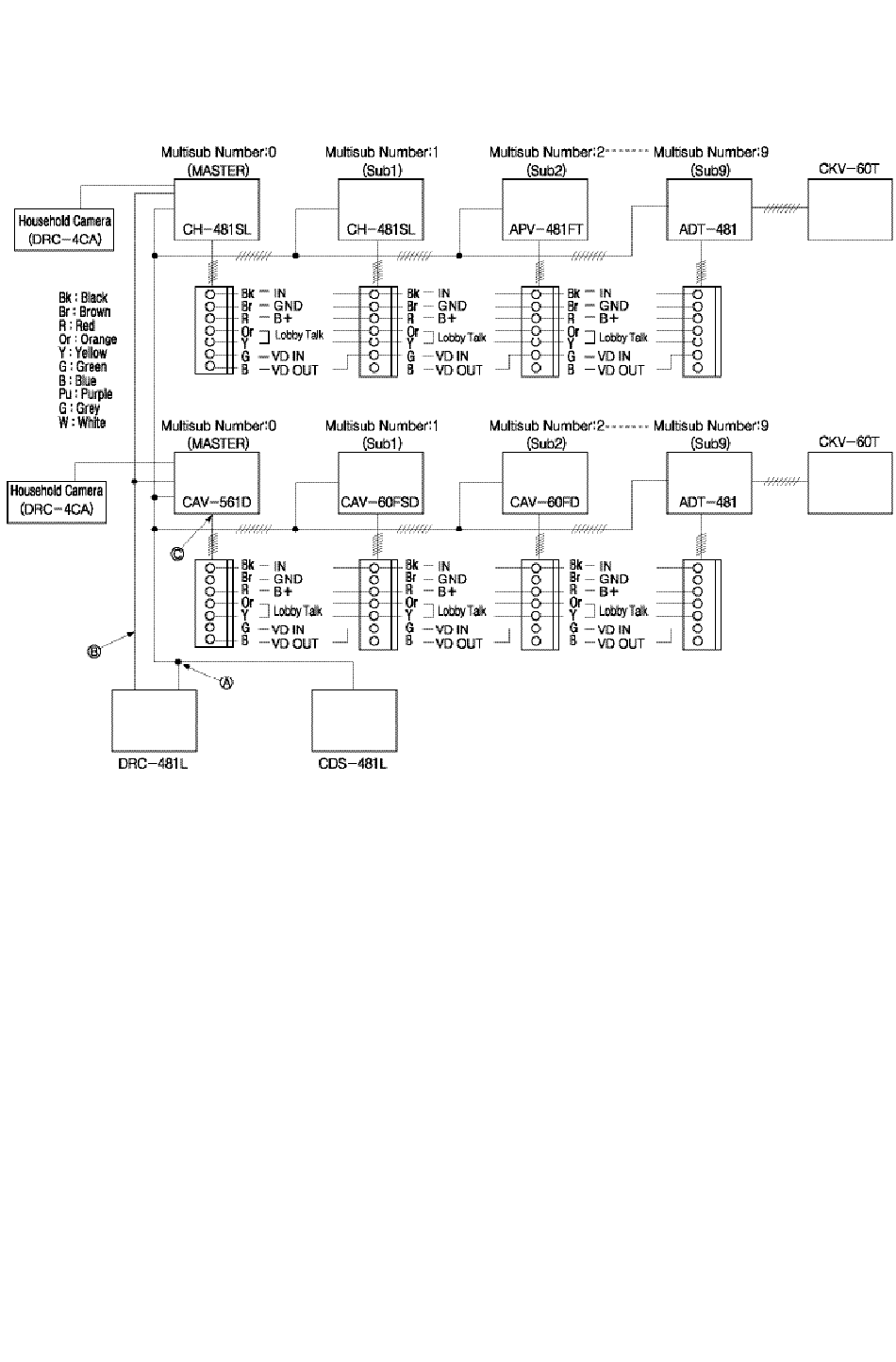

1. A: Guardhouse Line (8-wire Common)
B: Main Entrance Line (4-wire Common)
C: Sub Extension (6-wire Common)
2.When registering the Multi Sub number, ADT-481 will not be recognized as the Master and should
be installed last as shown above.
3.Various types of sensors should be connected to the Master, and sensors of the remaining Subs
should be connected with the + wire and the sensor line: if the two lines are not connected, the
Away mode will not function.
