User Manual

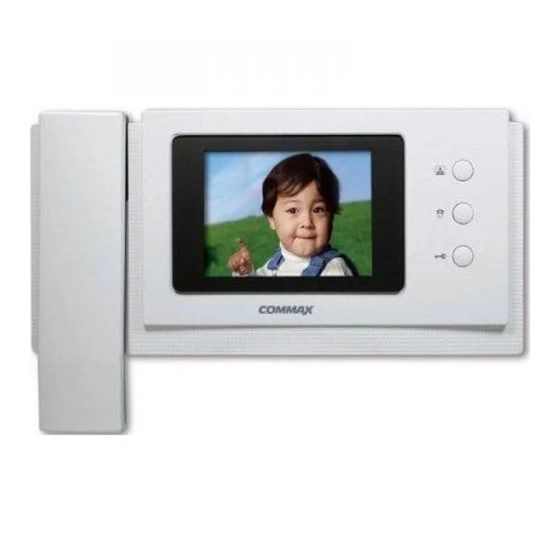

Video Door Phone CDV-40N
www.commax.in.ua
• Thank you for purchasing COMMAX products.
• Thank you for purchasing COMMAX products.
• Please carefully read this Userʼs Guide (in particular, precautions for safety) before using a product and follow
• Please carefully read this Userʼs Guide (in particular, precautions for safety) before using a product and follow
instructions to use a product exactly.
instructions to use a product exactly.
• The company is not responsible for any safety accidents caused by abnormal operation of the product.
• The company is not responsible for any safety accidents caused by abnormal operation of the product.
www.safemag.ru
Home Network
.in.ua

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CDV-40N and is the answer not in the manual?

Questions and answers

Related Manuals for Commax CDV-40N

Summary of Contents for Commax CDV-40N

  • Page 1: User Manual

    User Manual Video Door Phone CDV-40N www.commax.in.ua • Thank you for purchasing COMMAX products. • Thank you for purchasing COMMAX products. • Please carefully read this Userʼs Guide (in particular, precautions for safety) before using a product and follow • Please carefully read this Userʼs Guide (in particular, precautions for safety) before using a product and follow instructions to use a product exactly.

  • Page 2: Table Of Contents

    4. Operating ....................5 5. Installation ....................7 6. Wiring...................... 8 7. Part list..................... 9 8. Miscellaneous...................9 9. Specifications ..................9 1. Greetings Thank you very much for choosing COMMAX. Please read this manual carefully before you use the product.

  • Page 3: Warnings And Caution

    Home Network www.commax.in.ua .in.ua 2. Warnings and caution Please follow the things described below in order to prevent any danger or property damage. Prohibition. Warning It may cause a serious damage or No disassembly injury if violated. No touch Must follow strictly.
  • Page 4 Home Network www.commax.in.ua .in.ua Warning Please don’ t disassemble, If an abnormal sound, burning Please don’ t insert any Please use only the designated smell or smoke is coming out repair or rebuild this product metallic or burnable materials batteries for the products of...

  • Page 5: Part Names And Functions

    Home Network www.commax.in.ua .in.ua 3. Part names and functions Name Description BRIGHT button Adjust brightness COLOR button Adjust color CONT button Adjust contrast RESET button Returned to default color/brightness/Contrast 1. Press this button to check the entrance status Monitoring / UP button 2.

  • Page 6: Operating

    Home Network www.commax.in.ua .in.ua 4. Operating 1. Calling of visitor The visitor Open the door The visitor’ s presses the image appears The d oor r elease f unction call button on A chime Dialog begins operates o nly when the v isitor’s...
  • Page 7 Home Network www.commax.in.ua .in.ua 3. BRIGHT / COLOR / CONT setting (Available only in Monitoring status) 1). BRIGHT setting Press Monitoring button when the handset is hung on properly. (LED Blinking) Press BRIGHT button on the left while the screen is turned on. (Beep sound...

  • Page 8: Installation

    Home Network www.commax.in.ua .in.ua 5. Installation 1. Installation Method of camera monitor Note Avoid the range of direct sunlight Recommended height is pertinent from 1450 ~ 1500mm Avoid the installation near magnetic activity, humid temperatures and gas 2. Installation Method of camera...

  • Page 9: Wiring

    Home Network www.commax.in.ua .in.ua 6. Wiring 1. Camera connector polarity Red: Voice Blue: GND Yellow: Power (+12V) White: Video 2. Wiring precautions 1) If high voltage cables are present in the vicinity, use a coaxial cable with metal outer casing.

  • Page 10: Part List

    Home Network www.commax.in.ua .in.ua 7. Parts List Bracket for wall mount Manual Body of CDV-40N T4 X 18(4EA) M3 X 6(1EA) Screw for wall mount Screw for body 4P Connector (2EA) 8. Miscellaneous ● Please carefully read this User's Guide before calling service man After checking the entire check list, please contact customer service center.
  • Page 11 Home Network www.commax.in.ua .in.ua 513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Intʼl Business Dept. Tel. : +82-31-7393-540~550 Fax. : +82-31-745-2133 Web site : www.commax.com PM0740N00010 Printed In Korea / 2011.03.104...
