Product Description
The PMC BiSerial-III-HW2 is part of the PMC Module family of modular I/O components
by Dynamic Engineering. The PMC BiSerial-III is capable of providing multiple serial
protocols. The HW2 protocol implemented provides 8 Manchester encoded inputs and
outputs and 6 additional blocks that can each be configured as either one full-duplex
SDLC I/O or two full-duplex asynchronous (UART) I/O.
Other custom interfaces are available. We will redesign the state machines and create
a custom interface protocol. That protocol will then be offered as a "standard" special
order product. Please see our web page for current protocols offered. Please contact
Dynamic Engineering with your custom application.
485/LVDS buffers
termination
State
State
Machine
Machine
A
B
FIFO A
FIFO B
128K x 32
128K x 32
Data Flow
Control
PCI IF PLL

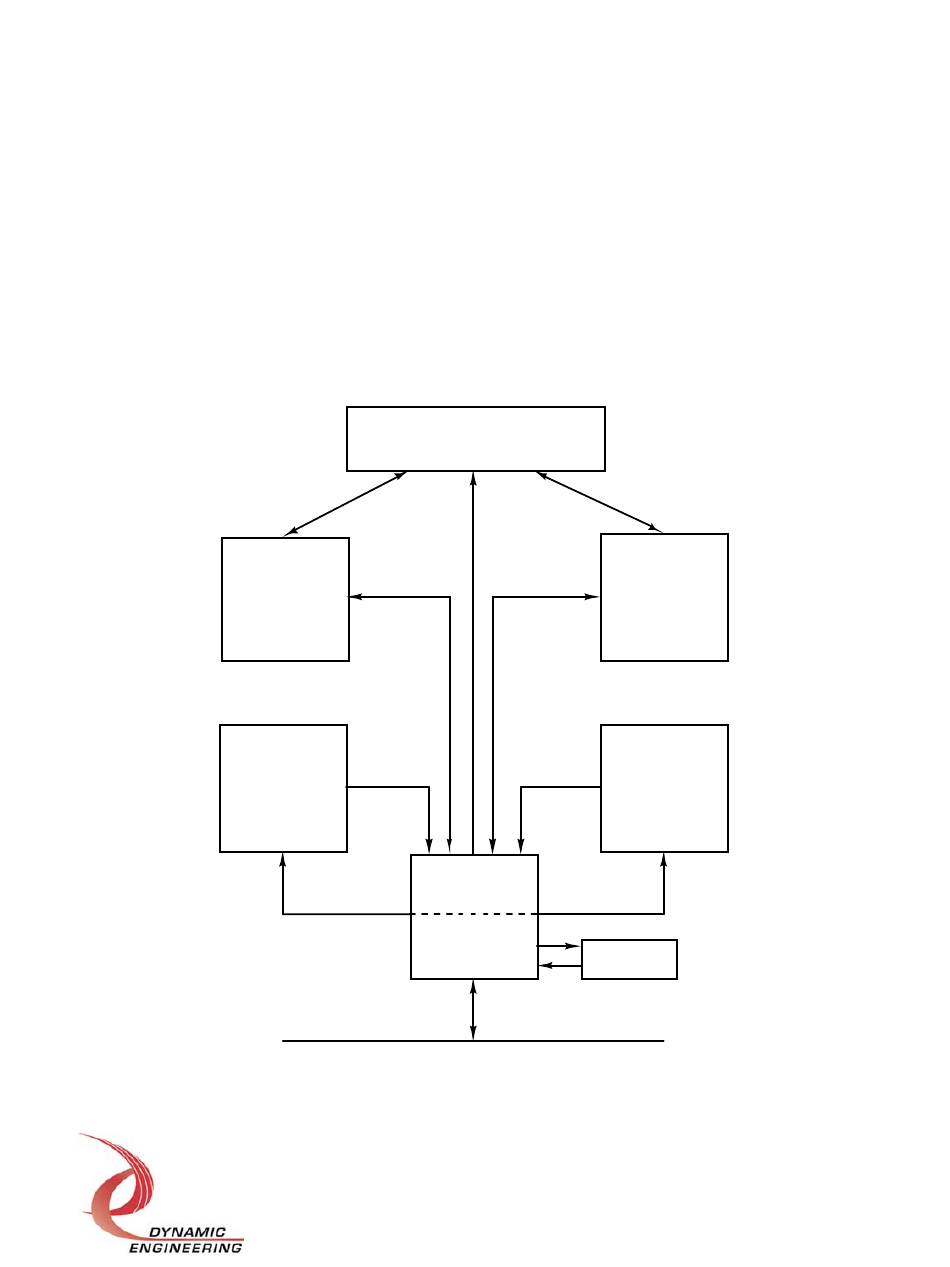

FIGURE 1 PMC BISERIAL-III BASE BLOCK DIAGRAM
