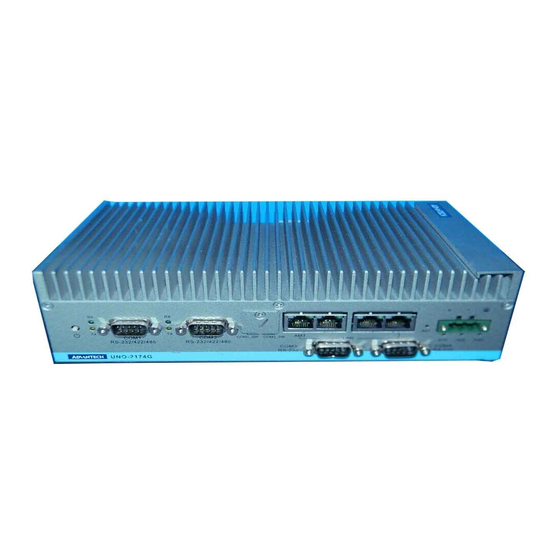

Advantech UNO-2174G-C54E
Intel Automation Computer
A l l t r a d e m a r k s , b r a n d n a m e s , a n d b r a n d s a p p e a r i n g h e r e i n a r e t h e p r o p e r t y o f t h e i r r e s p e c t i v e o w n e r s .
• C r i t i c a l a n d e x p e d i t e d s e r v i c e s
• I n s t o c k / R e a d y - t o - s h i p
Artisan Scientific Corporation dba Artisan Technology Group is not an affiliate, representative, or authorized distributor for any manufacturer listed herein.
In Stock
Used and in Excellent Condition
Buy Today!
https://www.artisantg.com/79606-1
• We b u y y o u r e x c e s s , u n d e r u t i l i z e d , a n d i d l e e q u i p me n t
• F u l l - s e r v i c e , i n d e p e n d e n t r e p a i r c e n t e r

Advertisement

loading
Need help?

Need help?

Do you have a question about the UNO-2174G-C54E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Advantech UNO-2174G-C54E

  • Page 1 Advantech UNO-2174G-C54E Intel Automation Computer In Stock Used and in Excellent Condition Buy Today! https://www.artisantg.com/79606-1 A l l t r a d e m a r k s , b r a n d n a m e s , a n d b r a n d s a p p e a r i n g h e r e i n a r e t h e p r o p e r t y o f t h e i r r e s p e c t i v e o w n e r s .
  • Page 2 User Manual UNO-2184G/2174G/ 2174GL 電腦 Automation Computers with Intel® Core™ i7 / Celeron® Processors, 4 x GbE, 2 x Mini- PCIe, DVI/DP/HDMI...
  • Page 3 限用物質含有情況標示聲明書 Declaration of the Present Condition of the Restricted Substances Marking 設備名稱 : 電腦 型號 ( 型式 ): UNO-2174G/UNO-2184G (系列型號請參見次頁 Equipment name Type designation 說明書 ) (Type) 限用物質及其化學符號 Restricted substances and their chemical symbols 鉛 汞 鎘 六價鉻 多溴聯苯 多溴二苯醚 單元...
  • Page 4 UNO-2174G-C54E UNO2174G1301E-T UNO2174GC541301E-T UNO2174GC541401E-T UNO2174GC541402E-T UNO2174GC541403E-T UNO2174GC541601E-T UNO2174GC54E01E-ES UNO-2174GL-C44E UNO2174GL441301E-T UNO2174GL1401E-T UNO2174GLC44E-ES UNO-2184G-D44E UNO2184G1201E-T UNO2184G1301E-T UNO2184G1302E-T UNO2184G1303E-T UNO2184G1401E-T UNO2184G1403E-T UNO2184GD1501E-T UNO2184GD441301E-T UNO2184GD441401E-T UNO2184GD441402E-T UNO2184GD441403E-T UNO2184GD441601E-T UNO-2184G-D45E UNO2184GD451401E-T UNO2184GD451402E-T UNO2184GD451601E-T UNO-2184G-D64E UNO2184GD641502E-T UNO2184GD641503E-T UNO2184GD641504E-T UNO2184GD641601E-T UNO-5080G-D54E UNO-5080G-D55E UNO-2184G/2174G/2174GL User Manual...
  • Page 5 No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reliable. How- ever, Advantech Co., Ltd.
  • Page 6: Product Warranty (2 Years)

    Because of Advantech’s high quality-control standards and rigorous testing, most of our customers never need to use our repair service. If an Advantech product is defec- tive, it will be repaired or replaced at no charge during the warranty period. For out- of-warranty repairs, you will be billed according to the cost of replacement materials, service time and freight.
  • Page 7: Technical Support And Assistance

    這是甲類測試產品,在居住的環境中使用時,可能會造成射頻干擾,在這種情況下, 使用者會被要求採取某些適當的對策。 Technical Support and Assistance Visit the Advantech web site, at www.advantech.com/support, where you can find the latest information about the product. Contact your distributor, sales representative, or Advantech's customer service center for technical support if you need additional assistance. Please have the following information ready before you call: –...
  • Page 8: Safety Instructions

    The sound pressure level at the operator's position according to IEC 704-1:1982 is no more than 70 dB (A). DISCLAIMER: This set of instructions is given according to IEC 704-1. Advantech disclaims all responsibility for the accuracy of any statements contained herein.
  • Page 9 安全指示 請仔細閱讀此安全操作說明。 請妥善保存此用戶手冊供日後參考。 用濕抹布清洗設備前,請確認拔除電源線。請勿使用液體或去污噴霧劑清洗設 備。 對於使用電源線的設備,設備周圍必須有容易接觸到的電源插座。 請勿在潮濕環境中試用設備。 請在安裝前確保設備放置在可靠的平面上,意外摔落可能會導致設備損壞。 設備機殼的開孔適用於空氣對,從而防止設備過熱。請勿覆蓋開孔。 當您連接設備到電源插座前,請確認電源插座的電壓符合要求。 請將電源線佈置在人們不易絆倒的位置,請勿在電源線上覆蓋任何雜物。 請注意設備上所有的警告標示。 如果長時間不使用設備,請拔除與電源插座的連結,避免設備被超標的電壓波動 損壞。 12. 請勿讓任何液體流入通風口,以免引起火灾或短路。 13. 請勿自行打開設備。為了確保您的安全,請透過經認證的工程師來打開設 備。 如遇下列情况,請由專業人員維修: 電源線或插頭損壞; 設備內部有液體流入; 設備曾暴露在過度潮濕環境中使用; 設備無法正常工作,或您無法透過用戶手冊來正常工作; 設備摔落或損壞; 設備有明顯外觀損; 請勿將設備放置在超出建議溫度範圍的環境,即不要低於 -20°C (-4°F)或高 於 60°C (140°F) ,否則可能會造成設備損壞。 注意:若電池更換不正確,將有爆炸危險。因此,只可以使用製造商推薦的同一 種或者同等型號的電池進行替換。請按照製造商的指示處理舊電池。 根據 IEC 704‐1:1982 規定,操作員所在位置音量不可高於 70 分貝。 免責聲明:請安全訓示符合...
  • Page 10: Table Of Contents

    Contents Chapter Overview..........1 Introduction ....................2 Hardware Specifications ................2 1.2.1 General ..................2 System Hardware..................3 1.3.1 Daughterboard (Additional Purchase Required) ......3 1.3.2 I/O Interfaces ................3 1.3.3 Environment.................. 3 Safety Precautions ..................4 Chassis Dimensions.................. 4 Figure 1.1 UNO-2184G/2174G/2174GL Chassis Dimensions ..4 Accessories....................
  • Page 11 Board Connectors and Jumpers ............. 23 Figure A.1 Connector & Jumper Locations (Front) ....23 Table A.2: Connectors and Jumpers ......... 23 RS-232 Standard Serial Port ..............24 Table A.3: RS-232 Serial Port Pin Assignments......24 RS-232/422/485 Serial Port (COM1 ~ COM2)........24 Table A.4: RS-232/422/485 Serial Port Pin Assignments..
  • Page 12: Chapter 1 Overview

    Chapter Overview This chapter provides an overview of UNO-2184G/2174G/2174GL’s specifications. Sections Include:  Introduction  Hardware Specifications  Safety Precautions  Chassis Dimensions...
  • Page 13: Introduction

    Power Requirements: 9 ~ 36 VDC (e.g +24V @ 3A) (Min. 72W), AT/ATX  Weight: 3.0 kg  OS Support: Windows XP/7, WES7, WES-2009, Linux  System Design Fanless with no internal cabling (except COM3/COM4)  Remote Management: Built-in Advantech DiagAnywhere agent on WES2009 / WES7 UNO-2184G/2174G/2174GL User Manual...
  • Page 14: System Hardware

    System Hardware  CPU: UNO-2174GL: Intel Celeron 807UE 1.0GHz UNO-2174G: Intel Celeron 847E 1.1GHz UNO-2184G: Intel Core i7-2655LE 2.2GHz/i7-3555LE 2.5GHz Memory: UNO-2174G/GL: 4 GB DDR3 SDRAM built-in  UNO-2184G: 4 GB/8 GB DDR3 SDRAM built-in  Indicators: LEDs for Power, battery, LAN (Active, Status) and Serial (Tx, Rx) ...
  • Page 15: Safety Precautions

    Chassis Dimensions Figure 1.1 UNO-2184G/2174G/2174GL Chassis Dimensions Accessories Please refer below for the accessory list:  3-pin connector for power wiring (Advantech P/N: 1652003206)  SATA signal cable (Advantech P/N: 1700013095)  SATA power cable (Advantech P/N: 1700006492) ...
  • Page 16: Chapter 2 Hardware Functionality

    Chapter Hardware Functionality This chapter shows how to setup the UNO-2184G/2174G/2174GL’s hardware functions, including connecting peripherals, setting switches and indicators. Sections Include:  Peripherals  RS-232 Interface  RS-422/485 Interface  LAN / Ethernet Connector  Power Connector  Power eSATA ...
  • Page 17: Introduction

    Introduction The following figures show the connectors on UNO-2184G/2174G/2174GL. The fol- lowing sections give you information about each peripheral. Figure 2.1 Front Panel of UNO-2184G/2174G/2174GL Figure 2.2 Rear Panel of UNO-2184G/2174G/2174GL UNO-2184G/2174G/2174GL Interface (COM1~COM4) UNO-2184G/2174G/2174GL offers 2 standard RS-232/422/485 and 2 RS-232 (with cable) serial communication inter-face ports: COM1 ~ COM4.
  • Page 18: Rs-232/422/485 Interface (Com 1 ~ 2)

    2.2.2 16C550 UARTs with 128-byte Standard Advantech UNO-2184G/2174G/2174GL comes with OXuPCI952 UARTs containing 128 bytes FIFOs. These upgraded FIFOs greatly reduce CPU overhead and are an ideal choice for heavy multitasking environments.
  • Page 19: Lan: Ethernet Connector

    Note Function Pin4 Pin5 Pin6 Disable COM2 COM2 RS232 RS232 COM2 RS485 RS485 COM2 Slave Mode RS422 (Default) RS422+RS485 COM2 RS485 with Termination RS485 COM2 Slave Mode RS422 with Termination RS422+RS485 COM2 Master Mode RS422 RS422 COM2 Master Mode RS422 with Termination RS422 Note! Please restart your system if you change any setting.
  • Page 20: Usb Connector

    USB Connector The USB interface supports Plug & Play, which enables you to connect or disconnect a device whenever you want without turning off the computer. UNO-2184G/2174G/ 2174GL provides 6 connectors of USB inter-faces, which gives complete Plug & Play and hot swapping for up to 127 external devices.
  • Page 21: Reset Button

    2.11 Reset Button Press the "Reset" button to activate the hardware reset function. 2.12 HD Audio UNO-2184G/2174G/2174GL is equipped with ALC892-GR, which is a High Definition Audio Codec. UNO-2184G/2174G/2174GL provides 3 phone jack connectors for 5.1 channel output. Please configure the function through provided software utility. 2.13 PCI Express Mini Card Socket UNO-2184G/2174G/2174GL supports 2 sockets for full size PCI Express mini cards.
  • Page 22: Chapter 3 Initial Setup

    Chapter Initial Setup This chapter introduces how to initialize the UNO-2184G/2174G/ 2174GL. Sections Include:  Inserting a CFast Card  Chassis Grounding  Connecting Power  Connecting a Hard Disk  BIOS Setup and System Assign- ments...
  • Page 23: Inserting A Cfast Card

    Please also note that system ground and chassis ground are separated in UNO- 2184G/2174G/2174GL. Connecting Power This product is intended to be supplied by a Listed DC Power Source, rated 9-36Vdc, 5A minimum and Tma 60 degree C. If further assistance is needed, please contact Advantech for more information. UNO-2184G/2174G/2174GL User Manual...
  • Page 24: Installing A Hard Disk

    Installing a Hard Disk The procedure for installing a hard disk into the UNO-2184G/2174G/2174GL is below. Please follow these steps carefully. Please note the system is not compatible with +12V HDD. Please use an HDD with lower power input. Remove the power cord. Unscrew the 6 screws from the bottom panel.
  • Page 25: Installing A Wireless Lan Card And Antenna

    Installing a Wireless LAN Card and Antenna Please contact Advantech to prepare the following optional kit: Rear Panel for Antenna  The internal cable: 1750006043 (15cm) Wireless Module (PCI Express Mini Card) One of the suggested modules is the EWM-W138H01E, which is a verified ...
  • Page 26: Bios Setup

    Plug the Wireless module onto the PCI Express mini card socket (CN24 or CN26) Connect the internal cable with the module. Screw back the bottom panel. Assemble the antenna on the SMA connector. BIOS Setup Press "F2" in the boot-up screen to enter the BIOS setup utility. Please follow the instructions on the screen to do the necessary settings.
  • Page 27: Amt Configuration

    AMT Configuration  Intel AMT This item allows users to enable or disable Intel AMT BIOS extension.  Intel AMT Setup Prompt This item allows users to enable or disable Intel AMT Setup prompt.  BIOS Hotkey Pressed This item allows users to enable or disable BIOS Hotkey pressed. ...
  • Page 28  PET Progress This item allows users to enable or disable PET event progress to receive PET events or not.  Intel AMT SPI Protected This item allows users to enable or disable Intel AMT SPI write protection.  AMT CIRA Timeout OEM defined time out for MPS connection to be established.
  • Page 29  TPM Support This item allows users to enable or disable the Trusted Platform Module func- tion. UNO-2184G/2174G/2174GL User Manual...
  • Page 30  ME FW Image Re-Flash This item allows users to enable or disable Me FW image re-flash function. UNO-2184G/2174G/2174GL User Manual...
  • Page 31 UNO-2184G/2174G/2174GL User Manual...
  • Page 32: Appendix A Syst. Settings & Pin Assignments

    Appendix Syst. Settings & Pin Assignments...
  • Page 33: System I/O Address And Interrupt Assignment

    System I/O Address and Interrupt Assignment Table A.1: Interrupt Assignments Interrupt No. Interrupt Source Parity Error Detected IRQ 0 Interval Timer IRQ 1 Keyboard IRQ 2 Interrupt from Controller 2 (cascade) IRQ 3 COM 2 IRQ 4 COM 1 IRQ 8 Real-Time Clock IRQ 9 Microsoft ACPI-Compliant System...
  • Page 34: Board Connectors And Jumpers

    Board Connectors and Jumpers There are several connectors and jumpers on the UNO-2184G/2174G/2174GL board. The following sections tell you how to configure the UNO-2184G/2174G/ 2174GL hardware setting. Figure A.1 shows the locations of UNO-2184G/2174G/ 2174GL’s connectors and jumpers. Figure A.1 Connector & Jumper Locations (front) Table A.2: Connectors and Jumpers Label Function...
  • Page 35: Rs-232 Standard Serial Port

    RS-232 Standard Serial Port Table A.3: RS-232 Serial Port Pin Assignments Pin Name RS-232/422/485 Serial Port (COM1 ~ COM2) Table A.4: RS-232/422/485 Serial Port Pin Assignments RS-232 RS-422 RS-485 Data- Data+ UNO-2184G/2174G/2174GL User Manual...
  • Page 36: Power Connector (Pwr)

    Power Connector (PWR) Table A.5: Power Connector Pin Assignments V+ (9~36VDC) Field Ground PS/2 Keyboard and Mouse Connector Table A.6: Keyboard and Mouse Connector Pin Assignments Signal Name KB DATA MS DATA KB Clock MS Clock UNO-2184G/2174G/2174GL User Manual...
  • Page 37: Usb Connector

    USB Connector Table A.7: USB 2.0 Connector Pin Assignments Signal Name Cable Color DATA- White DATA+ Green Black Table A.8: USB 3.0 Connector Pin Assignments Signal Name Description VBUS Power USB2.0 Differential Pair Ground for Power Return StdA_SSRX- SuperSpeed Receiver Differential Pair StdA_SSRX+ GND_DRIAN Ground for Signal Return...
  • Page 38: Hdmi Display Connector

    HDMI Display Connector Table A.9: HDMI Display Connector Signal Signal TMDS Data2+ TMDS Data2 Shield TMDS Data2- TMDS Data1+ TMDS Data1 Shield TMDS Data1- TMDS Data0+ TMDS Data0 Shield TMDS Data0- TMDS Clock+ TMDS Clock Shield TMDS Clock- Reserved DDC/CEC/HEC Ground +5 V Power (max 50 mA) Hot Plug Detect UNO-2184G/2174G/2174GL User Manual...
  • Page 39: Dvi-I Connector

    DVI-I Connector Table A.10: DVI-I Connector Pin Assignment Signal Name TMDS_C2# TMDS_C2 CRT_DDC_CLK CRT_DDC_DATA MDVI_CLK MDVI_DATA VGAVSY TMDS_C1# TMDS_C1 VCC_DVI VGA Detect HP_DET TMDS_C0# TMDS_C0 TMDS_CK# TMDS_CK VGAR VGAG VGAB VGAHSY UNO-2184G/2174G/2174GL User Manual...
  • Page 40: Displayport Display Connector

    A.10 DisplayPort Display Connector Table A.11: DisplayPort Adaptor Cable Pin Assignment Signal Name ML_Lane 0 (p) ML_Lane 0 (n) ML_Lane 1 (p) ML_Lane 1 (n) ML_Lane 2 (p) ML_Lane 2 (n) ML_Lane 3 (p) ML_Lane 3 (n) CONFIG1 CONFIG2 AUX CH (p) AUX CH (n) Hot Plug Return...
  • Page 41: Clear Cmos (Jp1)

    A.11 Clear CMOS (JP1) This jumper is used to erase CMOS data and reset system BIOS information. Follow the procedures below to clear the CMOS. Turn off the system. Close jumper JP2 (2-3) to clear CMOS Remove jumper JP2 (1-2) Turn on the system.
  • Page 42 UNO-2184G/2174G/2174GL User Manual...
  • Page 43 No part of this publication may be reproduced in any form or by any means, electronic, photocopying, recording or otherwise, without prior written permis- sion of the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2018...
