Safety Considerations - Carrier i-Vu Open Link Installation And Startup Manual

Protection
Status indicators
Environmental operating
range
Storage temperature range
Physical
Overall dimensions
Mounting dimensions
Depth
Weight
BACnet support
Listed by

Safety considerations

WARNING Disconnect electrical power to the i-Vu® Open Link before wiring it. Failure to follow this warning
could cause electrical shock, personal injury, or damage to the controller.
i-Vu Open Link
Installation and Start-up Guide
Incoming power and network connections are protected by non-replaceable internal
solid-state polyswitches that reset themselves when the condition that causes a fault
returns to normal.
The power and network connections are also protected against transient excess
voltage/surge events lasting no more than 10 msec.
LED status indicators for Port S1 and S2 communication, Ethernet Port E1
communication, and low battery status. Seven segment status display for running,
error, power status, archive valid, and brownout.
-20 to 140°F (-29 to 60°C), 10–90% relative humidity, non-condensing
-24 to 140°F (-30 to 60°C), 0 to 90% relative humidity, non-condensing
Rugged aluminum cover, removable screw-type terminal blocks

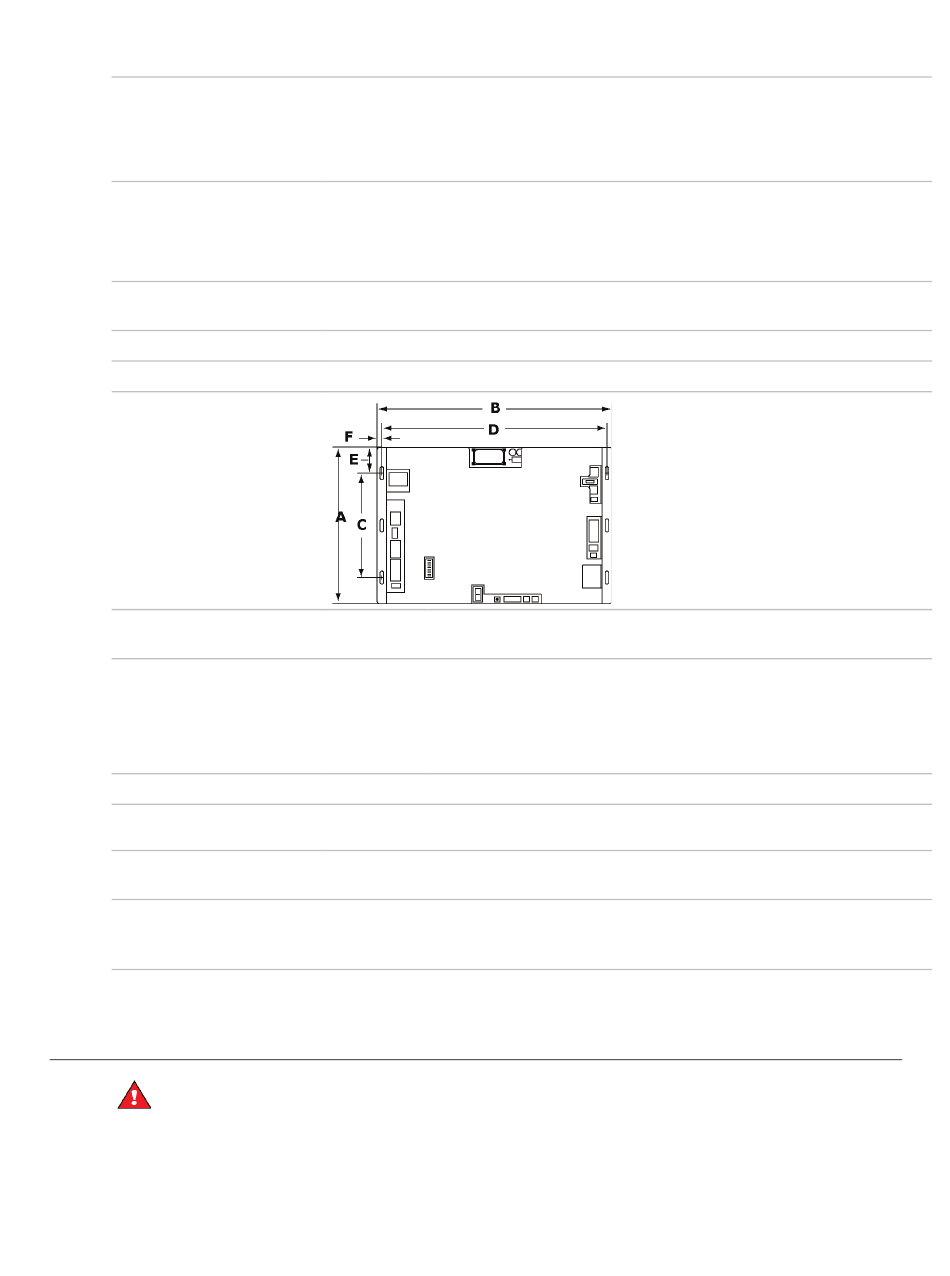

A: 7-1/2 in. (19.1 cm)
B: 11-5/16 in. (28.7 cm)
C: 5 in. (12.7 cm)
D: 10-7/8 in. (27.6 cm)
E: 1-1/4 in. (3.2 cm)
F: 1/4 in. (.6 cm)
Mount with 6-32 by 1/2 in. mounting screws
1-1/4 in. (3.2 cm)
1.4 lbs (0.64 kg)
Conforms to the BACnet Building Controller (B-BC) Standard Device Profile as defined
in ANSI/ASHRAE Standard 135-2012 (BACnet) Annex L, Protocol Revision 9
UL916 (Canadian Std C22.2 No. 205-M1983, CE, FCC Part 15 - Subpart B - Class A
