COMFORT ZONE
®
A GUIDE TO OPERATING YOUR RESIDENTIAL COMFORT ZONE SYSTEM
HOME OWNER'S GUIDE
NOTE TO INSTALLER: THIS MANUAL SHOULD BE LEFT WITH THE EQUIPMENT USER.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Comfort Zone Controller and is the answer not in the manual?

Questions and answers

Related Manuals for Carrier Comfort Zone Controller

Summary of Contents for Carrier Comfort Zone Controller

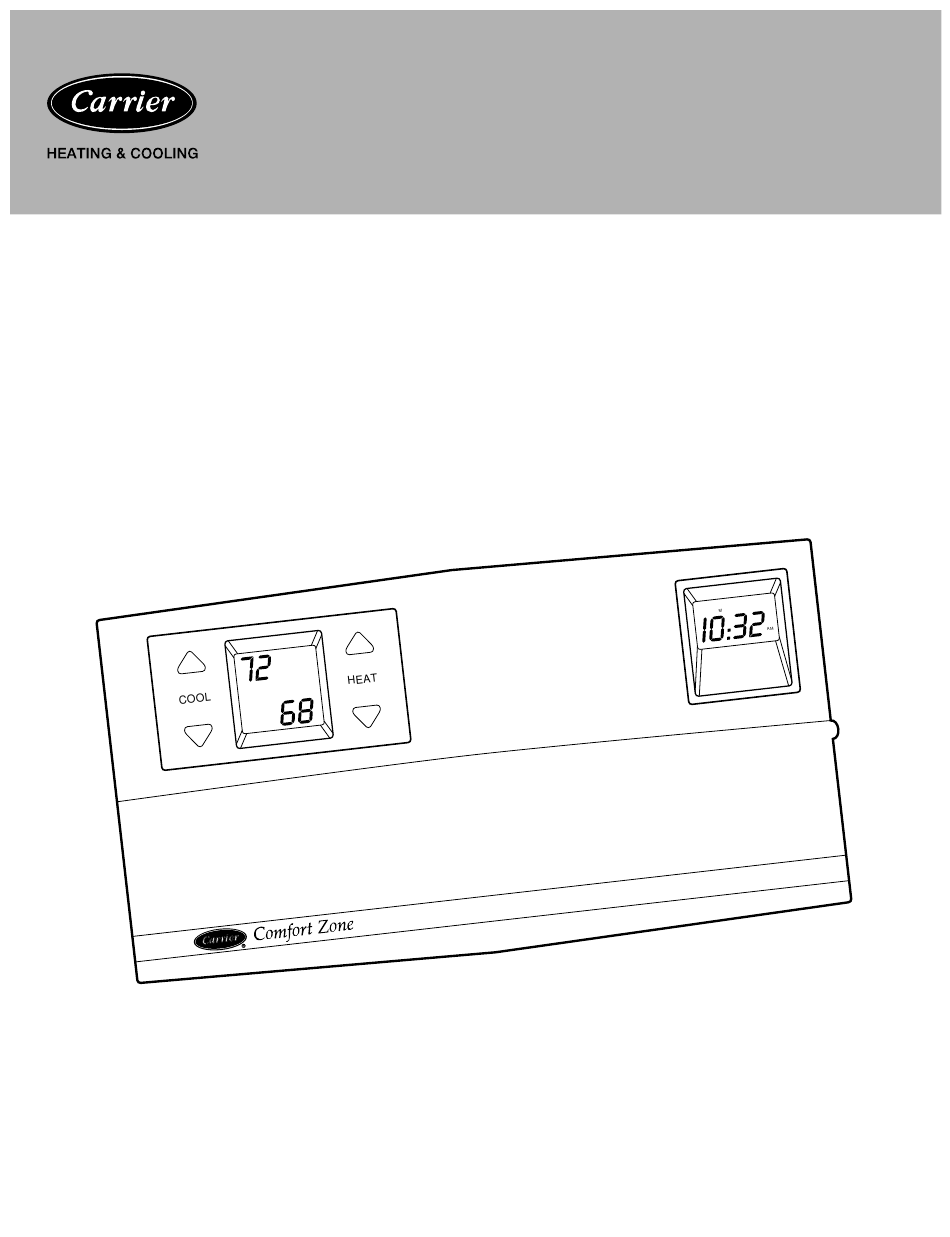

  • Page 1 COMFORT ZONE ® A GUIDE TO OPERATING YOUR RESIDENTIAL COMFORT ZONE SYSTEM HOME OWNER’S GUIDE NOTE TO INSTALLER: THIS MANUAL SHOULD BE LEFT WITH THE EQUIPMENT USER.
  • Page 2 INTRODUCTION The Comfort Zone Controller is the Program Center for your Comfort Zone System. The Comfort Zone Controller pro- vides the ability to program the System for the unique demands of each zone at different times during the day and the week.
  • Page 3 SYSTEM SWITCHES System Switches select the desired equipment operation. AUTO AUTO AUTO Heat Switch COOL HEAT HEAT COOL EMERGENCY HEAT HEAT A95555 - Heat will not come on. AUTO - Heat will turn on when any zone is more than 1.5 ° F below the desired heat setpoint. AUTO AUTO AUTO...
  • Page 4 NORMAL OPERATION When set for normal operation (alternate display not ON), the Comfort Zone Controller display shows the current zone temperature setpoints and allows the adjustment of these setpoints using the setpoint buttons. By pressing the upper and lower HEAT or COOL setpoint buttons simultaneously, the controller display will freeze display showing indoor zone temperature.

  • Page 5: Table Of Contents

    ZONE SETPOINTS OPTIONS ZONE 1 To view the setpoints for each zone, turn the Zone ZONE 2 Selector Dial to the ZONE No. you wish to view. The setpoints for the selected zone will be ZONE 3 displayed in the controller display. ZONE 4 VACATION A95561...

  • Page 6: Zone 1

    VACATION MODE Vacation mode displays the current vacation temperature setpoints and allows the adjustment of these setpoints using the setpoint buttons. These setpoints control all zones until the selector dial is returned to 1 of the zone selection positions, then normal independent zone operation will resume.
  • Page 7 SETTING THE CLOCK The Clock Display will normally show the hr, minutes, AM or PM, and the day. Clock Display Follow these steps to adjust the clock settings. A95566 1. Set the Minutes Press the SELECT MIN/HR/DAY button once. Press the ADVANCE TIME/DAY button to scroll to the proper minutes. SELECT TIME/TEMP MIN/HR/DAY...
  • Page 8 SETTING THE CLOCK 3. Set the Day Press the SELECT MIN/HR/DAY button once again. Press the ADVANCE TIME/DAY button to scroll to the proper day. SELECT TIME/TEMP MIN/HR/DAY SCHEDULES ADVANCE HOLD TIME/DAY TEMPERATURES A95569 4. Return to Normal Operation Press the SELECT MIN/HR/DAY button once again. The newly programmed time and day will be displayed. SELECT TIME/TEMP MIN/HR/DAY...

  • Page 9: Cool

    PROGRAMMING THE SYSTEM NOTE: See programming chart in rear of owner guide. 1. Enter Program Mode Press the SET TIME/TEMP SCHEDULES button to enter program mode. The program mode and the current zone will be shown on the controller display. SELECT TIME/TEMP MIN/HR/DAY...
  • Page 10 PROGRAMMING 3. Select a Weekly Period SELECT TIME/TEMP MIN/HR/DAY SCHEDULES ADVANCE The clock display will show “MTWTHF.” HOLD TIME/DAY TEMPERATURES Pressing the ADVANCE TIME/DAY button selects the weekly period to be programmed. A94475 Pressing the ADVANCE TIME/DAY button 1 time will change the clock display from “MTWTHF”...
  • Page 11 PROGRAMMING To ONLY VIEW the start times and setpoints for each start time, press the SELECT MIN/HR/DAY SELECT button a second time. This will display the second TIME/TEMP MIN/HR/DAY SCHEDULES start time and setpoints. ADVANCE HOLD Additional presses will display start times 3 and 4, then TIME/DAY TEMPERATURES return to weekly period display.
  • Page 12 PROGRAMMING 5. Program Start Time PLEASE NOTE: START TIMES MUST BE PROGRAMMED IN CHRONOLOGICAL ORDER AND ALL START TIMES MUST BE IN THE SAME DAY. 6 AM - Time Period 1 8 AM - Time Period 2 RIGHT 5 PM - Time Period 3 9 PM - Time Period 4...
  • Page 13 PROGRAMMING 6. Adjust Setpoints Adjust the setpoints using the setpoint UP and DOWN buttons until the desired temperatures for the selected time period appear in the display. These setpoints will be used during the time period currently displayed in the clock window.
  • Page 14 OVERRIDING PROGRAMMING To override the time programming, press any setpoint button. This will also adjust the setpoints for the override period. Once the setpoints are adjusted, they will not change until the next programmed time period. Press to adjust Press to adjust COOL HEAT Cooling Setpoint...
  • Page 15 PROGRAMMING QUICK REFERENCE Program 1. Press SET TIME/TEMP SCHEDULES to enter program mode. 2. Select desired zone, using zone select dial. 3. Press ADVANCE TIME/DAY to select weekly period to program. 4. Press SELECT MIN/HR/DAY to program selected daily period. 5.
  • Page 16 Have available the Model No., Series Letter & Serial No. of your equipment to insure correct replacement part. Carrier Corporation Syracuse, New York 13221 Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations . Copyright 1996 Carrier Corporation Form: OMZONEKIT4-1 Supercedes: New Printed in the U.S.A.
