Installing the i-Vu® Open Link
The i-Vu® Open Link needs two addresses, one for the Open network and one for the IP Network.
The i-Vu® Open Link
needs...
A router address
An IP address
To set the i-Vu® Open Link address on the Open network
CAUTION The i-Vu® Open Link address must be unique on the IP and Open network.
1
If wired for power, turn off the controller's power.
The controller only reads the rotary switch positions during power up or upon reset.
2

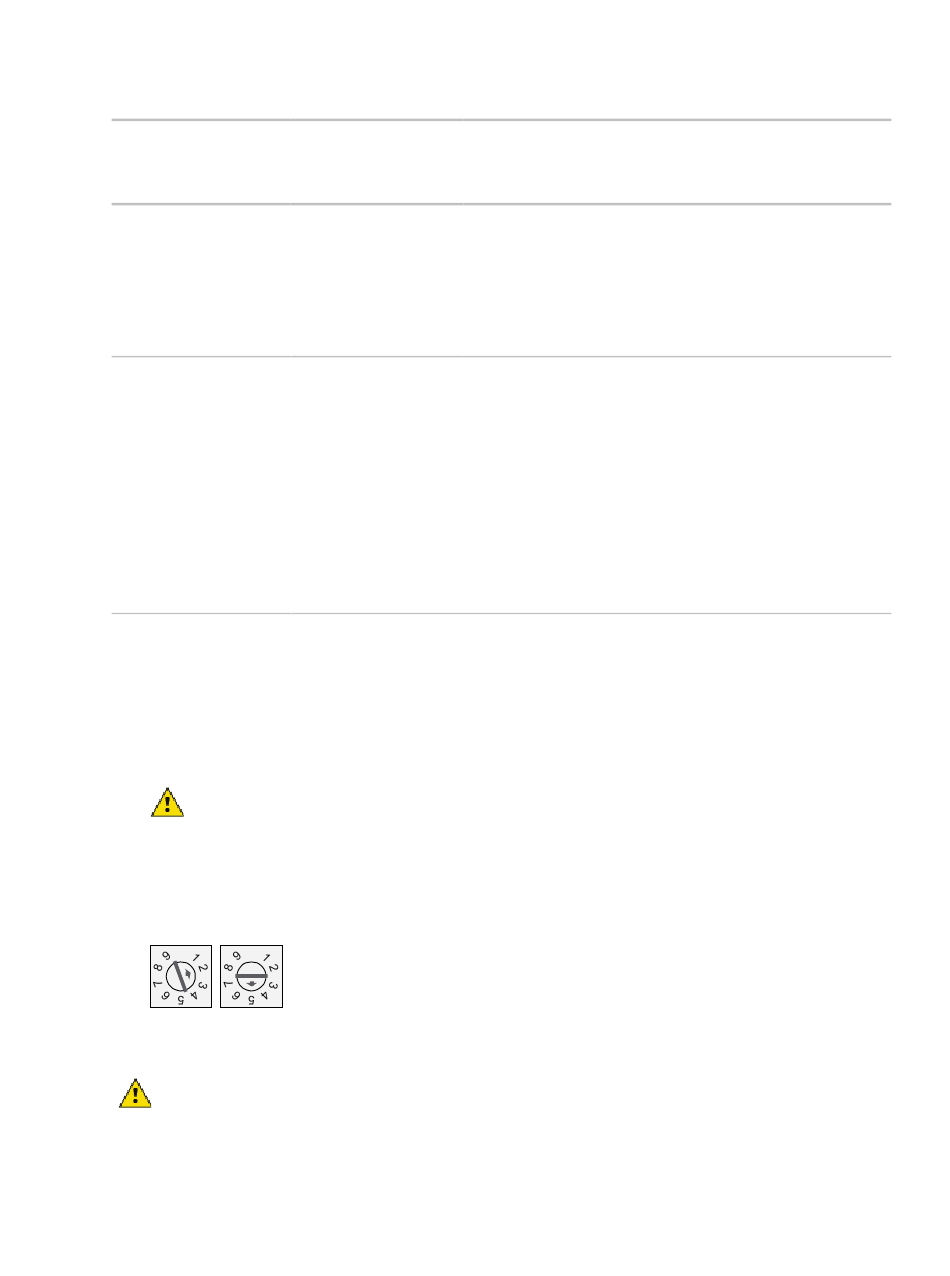

Use the rotary switches to set the address. Set the Tens (10's) switch to the tens digit of the address, and set
the Ones (1's) switch to the ones digit. Valid addresses are 1 - 99.
EXAMPLE If the controller's address is 25, point the arrow on the Tens (10's) switch to 2 and the arrow on
the Ones (1's) switch to 5.
10's
0
3
Turn on the i-Vu® Open Link's power.
CAUTION The factory default setting is 00 and must be changed to successfully install your i-Vu® Open Link.
i-Vu Open Link
Installation and Start-up Guide
That is unique
on the...
Open network
IP Network
1's
0
Carrier Proprietary and Confidential
Notes
You set the i-Vu® Open Link address on the controller's
rotary switches. (1 - 99)
NOTE The i-Vu® Open Link address is also used to auto-
generate the BACnet device instance/name for the router
and the MS/TP network number for the connected Open
network. See Configuring BACnet device instance and
network number.
Set the IP Addr DIP switch to choose one of the following:
•
DHCP — to obtain an IP address from a DHCP server
If there is no DHCP server, the following are the default
IP settings:
192.168.168.xx, where xx = router address
○
subnet mask = 255.255.255.0
○
default gateway = 192.168.168.254
○
•
Assigned — a custom IP address
