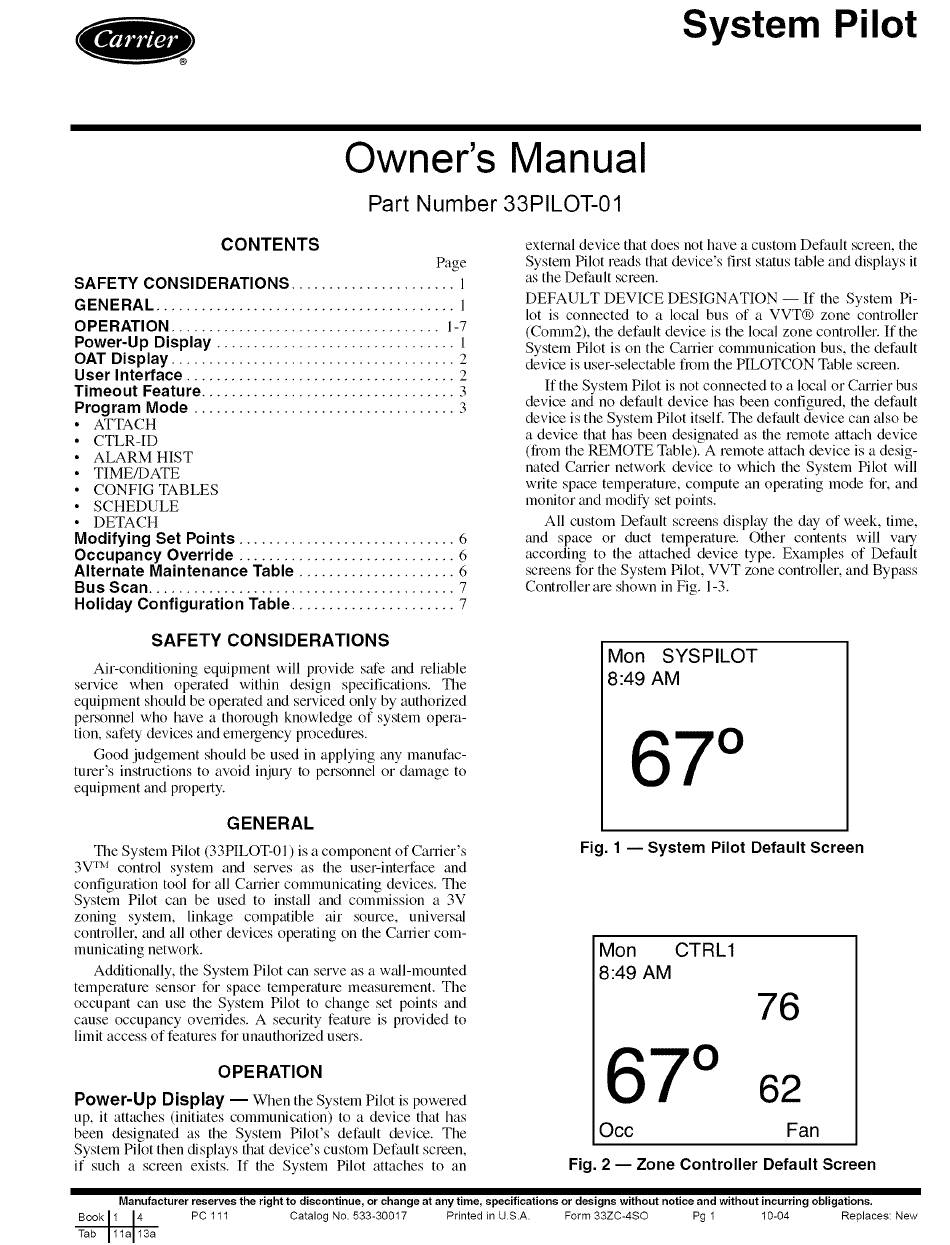

Carrier System Pilot Owner's Manual

System Pilot
Owner's Manual
Part Number 33PILOT-01
CONTENTS
Page
SAFETY CONSIDERATIONS ...................... l
GENERAL ........................................ l
OPERATION .................................... 1-7
Power-Up Display ................................ 1
OAT Display ...................................... 2
User Interface .................................... 2
Timeout Feature .................................. 3
Program Mode ................................... 3
• ATTACH
• CTLR-ID
• ALARM HIST
• TIME/DATE
• CONFIG TABLES
• SCHEDULE
• DETACH
Modifying Set Points ............................. 6
Occupancy Override ............................. 6
Alternate Maintenance Table ..................... 6
Bus Scan ......................................... 7
Holiday Configuration Table ...................... 7
external device that does not have a custom Default screen, the
System Pilot reads that device's first status table and displays it
as the Default screen.
DEFAULT DEVICE DESIGNATION -- If the System Pi-
lot is connected to a local bus of a VVT® zone controller
(Comm2), the default device is the local zone controller. If the
System Pilot is on the Canier communication bus, the default
device is user-selectable from file HLOTCON Table screen.
If the System Pilot is not connected to a local or Carrier bus
device and no default device has been configured, file default
device is the System Pilot itself. The default device can also be
a device that has been designated as file relnote attach device
(from the REMOTE Table). A remote attach device is a desig-
nated Carrier network device to which the System Pilot will
write space temperatme, compute an operating mode for. and
monitor and modify set points.
All custom Default screens display the day of week, time,
trod space or duct temperature. Other contents will valy
according to the attached device type. Examples of Default
screens for the System Pilot, VVT zone controller, and Bypass
Controller are shown in Fig. 1-3.
SAFETY CONSIDERATIONS
Air-conditioning equipment will provide safe and reliable
service when operated within design specifications. The
equipment should be operated and serviced only by authorized
personnel who have a thorough knowledge of system opera-
tion, safety devices and emergency procedures.
Good judgement should be used in applying any manufac-
turer's instructions to avoid injury to personnel or damage to
equipment and property.
GENERAL
The System Pilot (33PILOT-01 ) is a component of Camer's
3V
TM
control system and serves as the user-interface and
configuration tool for all Carrier communicating devices. The
System Pilot can be used to install and commission a 3V
zoning system, linkage compatible air source, univers_d
controller, and all other devices operating on the Carrier com-
municating network.
Additiomdly, the System Pilot can serve as a w_dl-mounted
temperature sensor for space temperature measurement. The
occupant can use the System Pilot to change set points and
cause occupancy ovemdes. A security feature is provided to
limit access of features for unauthorized users.
OPERATION
Power-Up Display
--
When the System Pilot is powered
up, it attaches (initiates communication) to a device that has
been designated as the System Pilot's default device. The
System Pilot then displays that device's custom Default screen,
if such a screen exists. If the System Pilot attaches to an
Mon SYSPILOT
8:49 AM
67 °
Fig. 1 -- System Pilot Default Screen
Mon CTRL1
8:49 AM
76
7 62
Occ Fan
Fig. 2 -- Zone Controller Default Screen
Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations.
Book 1 ]4 PC 111 Catalog No. 533-30017 Printed in US.A. Form 33ZC-4SO Pg 1 10-04 Replaces: New
