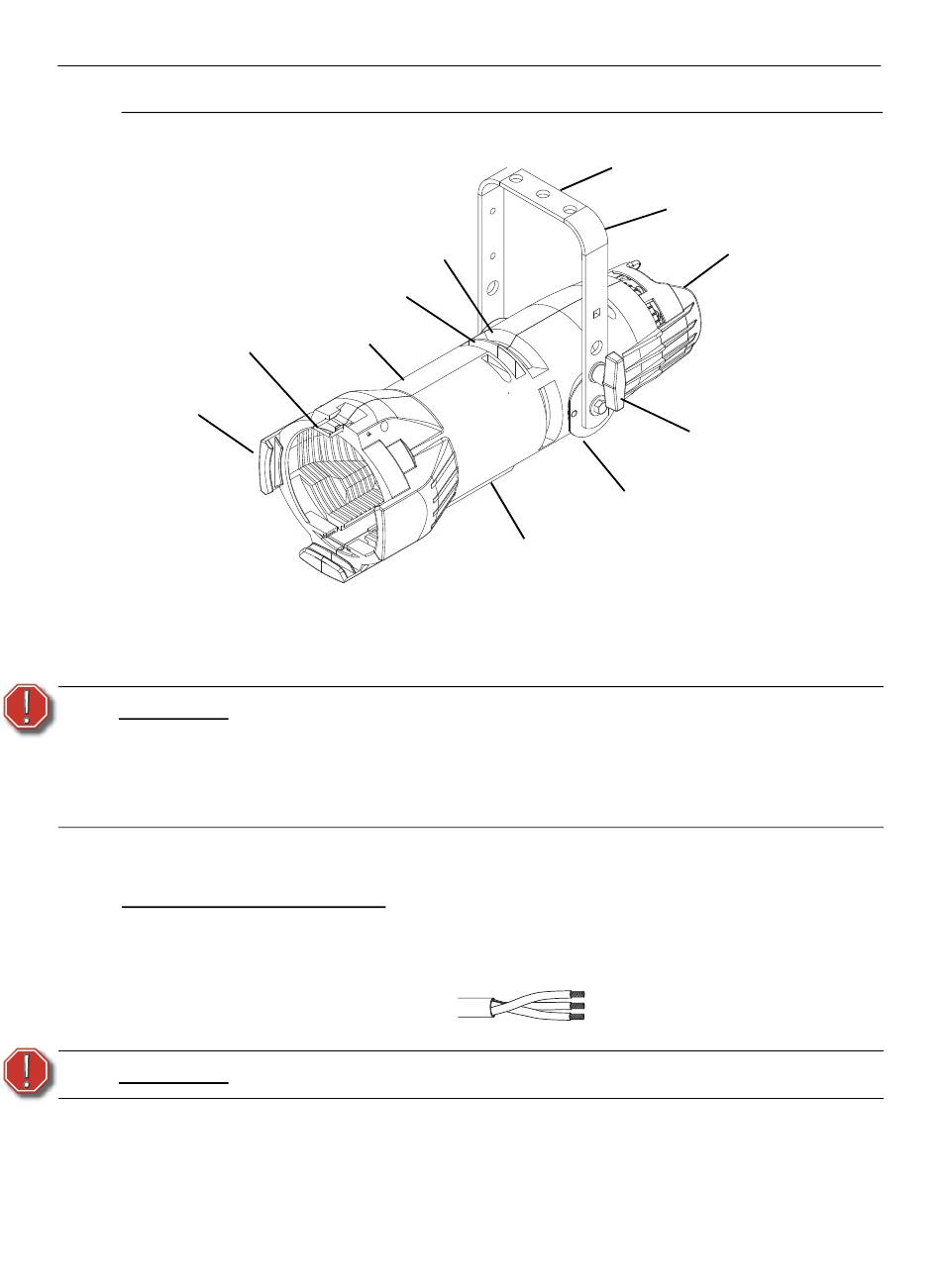

Basic Assembly

Color frame
retaining gel clip
Gel frame
W A R N I N G :
Please note the following safety warnings before use:
Do not mount the luminaire on or near combustible surfaces.
Do not operate the luminaire without a lens installed.
Always hang the luminaire with the colour frame retaining clip in the locked
position.
L u m i n a i r e i n f o r m a t i o n
W i r i n g a n d p o w e r i n f o r m a t i o n
A plug of at least 2.5 amp (220/240V) rating should be attached to the luminaire's mains lead. The
wires in the mains lead are 1.55mm
Green and Yellow:
Blue:
Brown:
W A R N I N G :
This luminaire must be earthed.
Current rating:
Operating frequency:
Pattern holder slot
Drop-in iris
slot cover
Barrel
2
each and coloured in accordance with the following code:
Earth
Neutral
t 18 0°c
Live
120V/5 amp maximum
240V/2.5 amp maximum
50/60 Hz
C-clamp mounting
Yoke
Yoke locking knob
Zoom rear focus knob
Beam focus knob
(Zoom front focus)
English
Lamp housing
Figure 1
3
