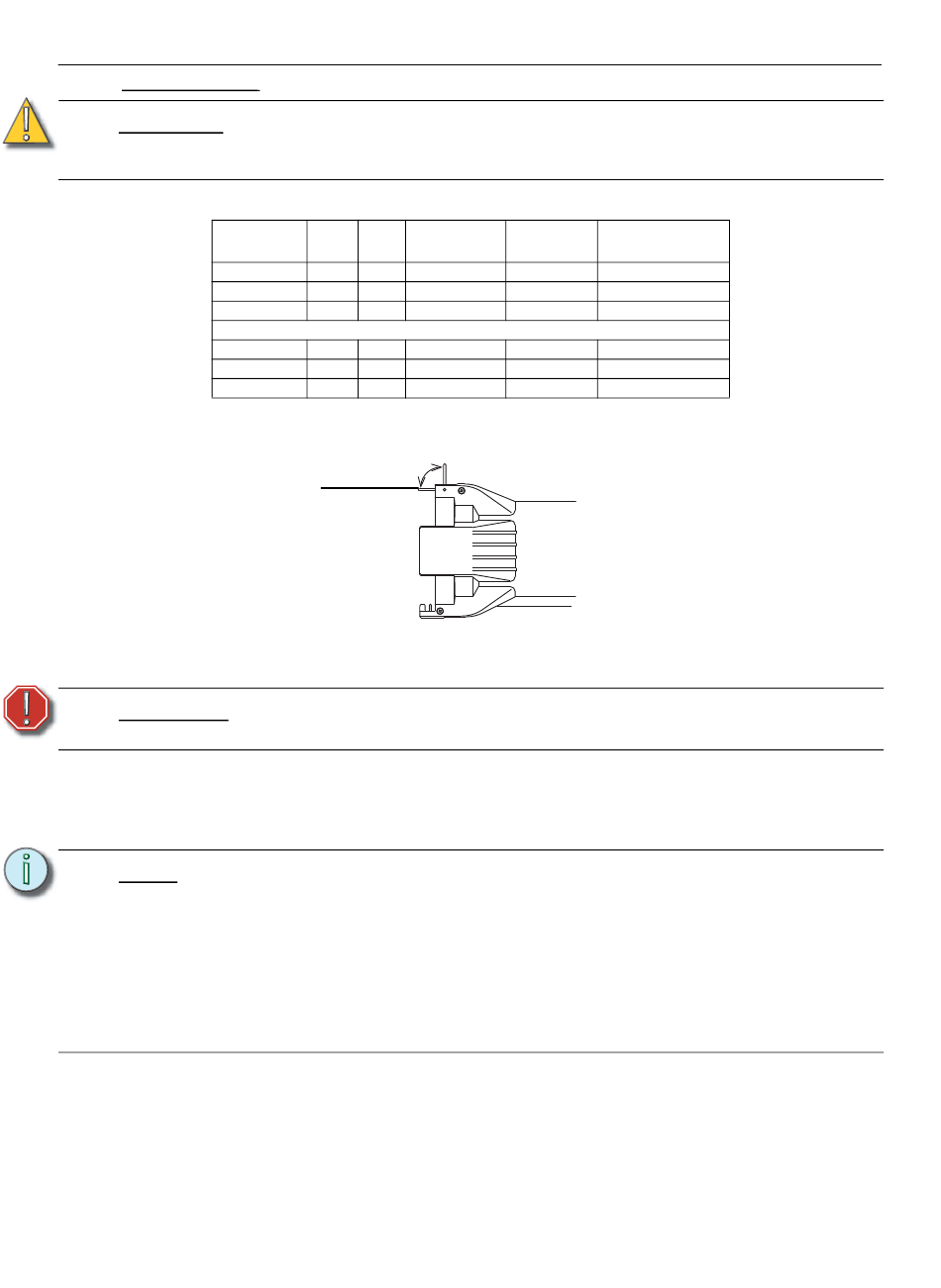

Colour Frame Holder - ETC Source Four JR User Manual

English
H P L l a m p t a b l e
C A U T I O N :
Lamp code Watts Volts Initial Lumen
HPL 575/230
HPL 575/230X
HPL 375/230
HPL 575/240
HPL 575/240X
HPL 375/240X
C o l o u r f r a m e h o l d e r
Retaining clip
The colour frame holder is equipped with a spring-loaded retaining clip that prevents colour frames
and accessories from falling out. See
W A R N I N G :
Step 1: Release the retaining clip by pushing it sideways while gently pulling backwards.
Step 2: Insert the colour frame.
Step 3: Lock the retaining clip by pushing sideways while gently pushing forward.
N o t e :
4
The Source Four jr is rated for 575w maximum lamp. Do not use lamps other than
the HPL in Source Four fixtures. Use of lamps other than HPL or greater than
575w will void your warranty.
575 230
575 230
375 230
575 240
575 240
375 240
Figure
Make sure all colour frame accessories are locked in position with the
retaining clip before hanging the Source Four jr / jr Zoom CE.
The performance of saturated colours may be less than desirable in any theatrical
lighting luminaire. For best results, always use high-quality colour media rated for
high-temperature use.
ETC's optional Conical Gel Extender, part # 7060A1048, will provide maximum
colour media life. Gel Extenders are not recommended for 70° and 90° lens tubes
due to the extremely wide-angle beam.
A variety of heat shield products is also available from many colour media
manufacturers. Follow the manufacturer's instructions for the use of these
products.
Colour Average rated life
temp.
14,900 3,200°K
11,780 3,050°K
7,250 3,000°K
14,900 3,050°K
11,780 3,050°K
19,750 3,000°K
2.
400 hours
1500 hours
1000 hours
400 hours
1500 hours
1000 hours
Figure 2
Source Four jr/jr Zoom CE User Manual
