R e p l a c i n g t h e H P L l a m p
Lamp retention
Lamp housing
A lamp must be installed before you use the luminaire.
N o t e :
Verify that the HPL lamp you intend to install is suitable for your facility's voltage;
115-, 120-, 230-, and 240-volt HPL lamps are available. See
4. Operating HPL lamps above their rated voltage reduces lamp life and can cause
premature lamp failure.
W A R N I N G :
Let the lamp cool before replacing.
Step 1: Disconnect power to the Source Four jr / jr Zoom CE before installing the lamp.
Step 2: Loosen the knurled bolt on the back of the lamp housing and pull the housing out.
Step 3: Holding by the base, remove the HPL lamp from its box.
C A U T I O N :
Use caution when installing or replacing any lamp.
When installing/replacing lamp, be sure to point the lamp away from your face and
away from others before inserting it firmly into the assembly.
This may prevent injuries if the lamp should break.
INCORRECT
N o t e :
To avoid premature lamp failure, do not touch the lamp glass. If you do, clean it
carefully with isopropyl alcohol and a clean lint-free cloth. Allow to dry before
operation.

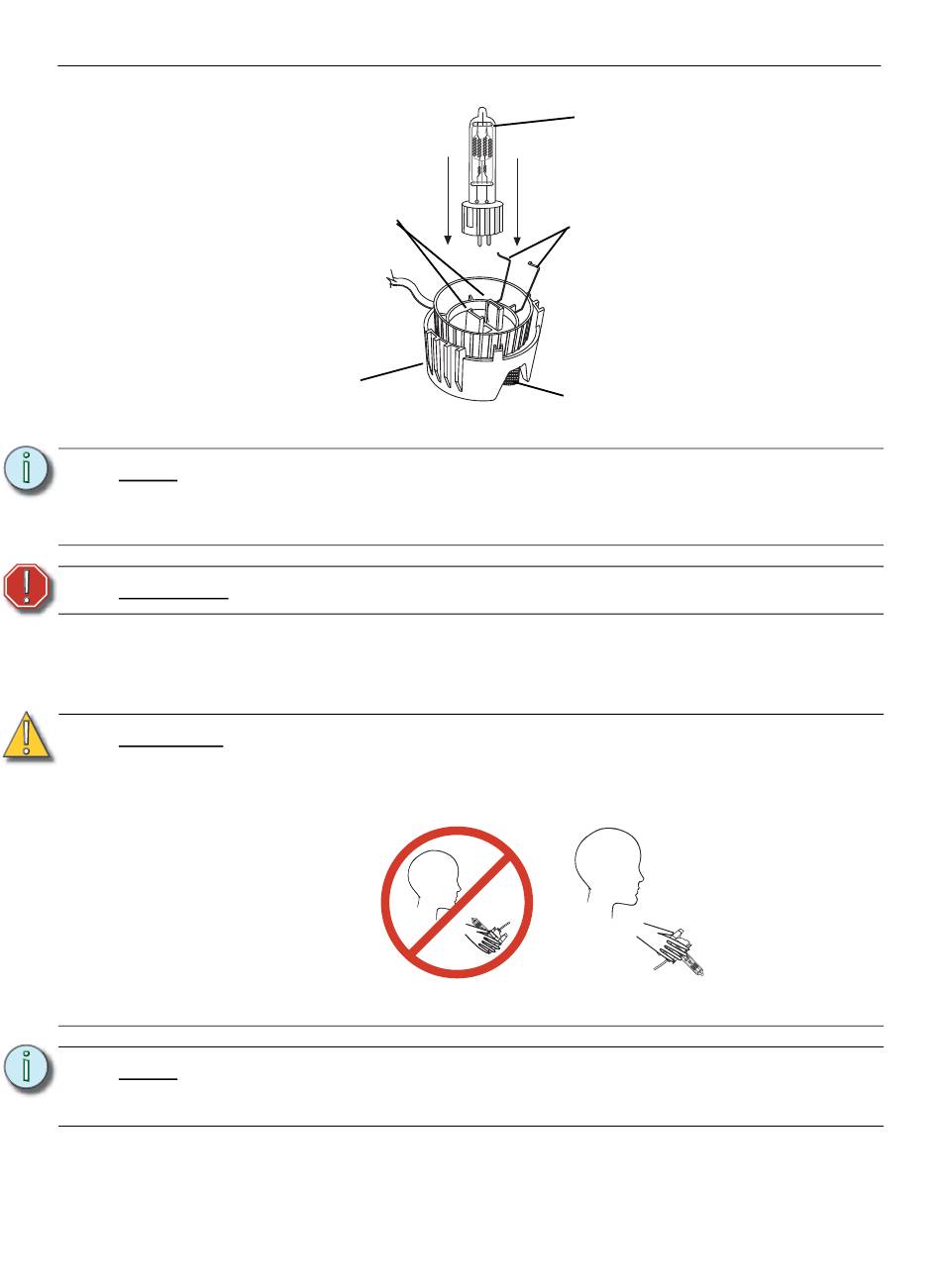

Step 4: Align the flat sides of the lamp base with the retention brackets on either side of the
socket as shown in
brackets
Figure 3.
HPL lamp
Lamp retaining clip
Knurled bolt
HPL lamp table, page
CORRECT
