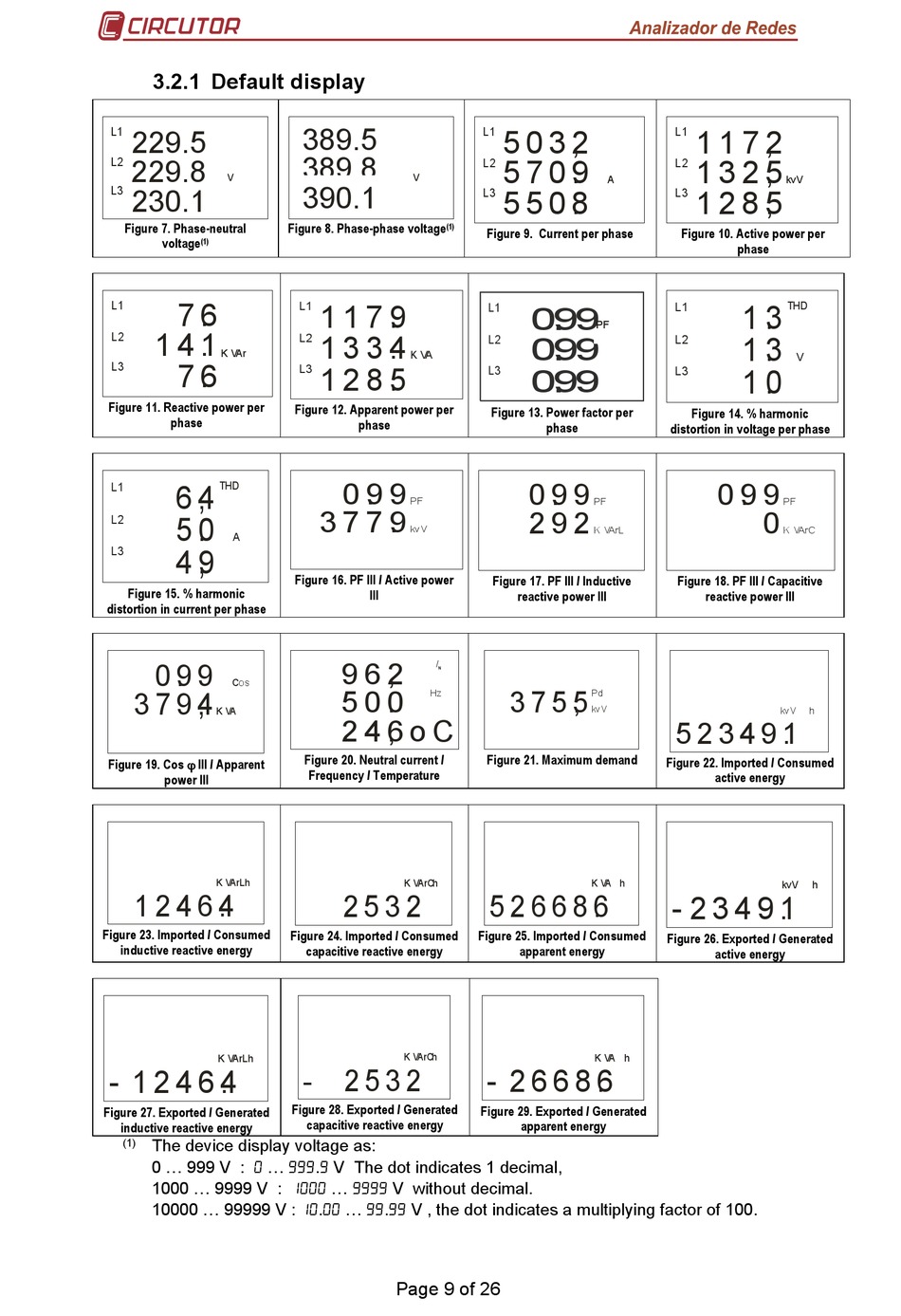

3.2.1 Default display

229.5
L1
229.8
L2
V
230.1
L3
Figure 7. Phase-neutral
voltage
(1)
7 . 6
L1
1 4 . 1
L2
K V Ar
7 . 6
L3
Figure 11. Reactive power per
phase
6 , 4
L1 THD
5 . 0
L2
A
4 , 9
L3
Figure 15. % harmonic
distortion in current per phase
0 . 9 9
C
OS
3 7 9 , 4
K V A
Figure 19. Cos ϕ III / Apparent
power III
K V ArLh
1 2 4 6 . 4
Figure 23. Imported / Consumed
inductive reactive energy
K V ArLh
- 1 2 4 6 . 4
Figure 27. Exported / Generated
inductive reactive energy
The device display voltage as:
(1)
0 ... 999 V :  ... . V The dot indicates 1 decimal,
1000 ... 9999 V :  ...  V without decimal.
10000 ... 99999 V : . ... . V , the dot indicates a multiplying factor of 100.
389.5
389 8
V
390.1
Figure 8. Phase-phase voltage
(1)
1 1 7 . 9
L1
1 3 3 . 4
L2
K V A
1 2 8 . 5
L3
Figure 12. Apparent power per
phase
0 . 9 9
PF
3 7 7 . 9
kvV
Figure 16. PF III / Active power
III
9 6 , 2
I
N
5 0 . 0
Hz
2 4 , 6 o C
Figure 20. Neutral current /
Frequency / Temperature
K V ArCh
2 5 3 . 2
Figure 24. Imported / Consumed
capacitive reactive energy
K V ArCh
- 2 5 3 . 2
Figure 28. Exported / Generated
capacitive reactive energy
Page 9 of 26
