Transport, Handling, Inspection, and Storage

NOTE: Refer to "Equipment for Handling, Transport, and
Storage" under "Tools, Parts, and Equipment" for proper handling
of washer.
1. Inspect carton for damage. Inspect washer if carton shows
signs of damage. Do not remove washer from pallet.
2. Verify model number and serial number
on the data plate with your order.
Remove accessories and manuals
from inside washer drum.
3. Store inside in a temperature controlled
environment -13° and 131°F (-25° and
55°C). Do not expose washer to the
weather. Humidity levels must be
between 30 to 90% without condensation.
IMPORTANT: Make sure that all components are secured during
transportation and installation.

Moving to Final Location

IMPORTANT:
Make sure all passages and spaces through which the
washer will be moved to its installation location are high
enough and wide enough for the washer and its packaging.
Do not push, pull, or press the parts protruding from the
washer (front section, door, control panel, belt cover, water
inlet, outlet pipes, etc.).
To avoid damage during handling and installation, make sure
all protruding parts are secured.
1. Move the washer near the point of installation with a lift truck
and remove packing material.
2. Loosen the 4 - M16 x 160 mm bolts attaching the washer to
the pallet and gently lift washer.
IMPORTANT: Washer is very heavy. Consider equipment and
manpower required to move this washer prior to installation and
be sure that all necessary preparations are made.
Fastening Washer to Concrete Floor
1. Washer is to be attached to the concrete floor with anchor
bolts. All four footings must come into firm contact with
the floor.
2. Level washer's base frame with a level.
3. Do not tighten nuts of the anchor bolts until the concrete floor
or base has completely cured.
4. Tighten the nuts of the anchoring bolts to a maximum
155 lbf.ft/210 Nm for the bolts on Models MFS80, MFS100,
and MFS125. For Models MFS180, MFS230, and MFS275
tighten the nuts of the anchoring bolts to a maximum of
36 lbf.ft/49 Nm.
5. See "Dimensions and Technical Specifications" section for
installation measurements.
8

INSTALLATION INSTRUCTIONS

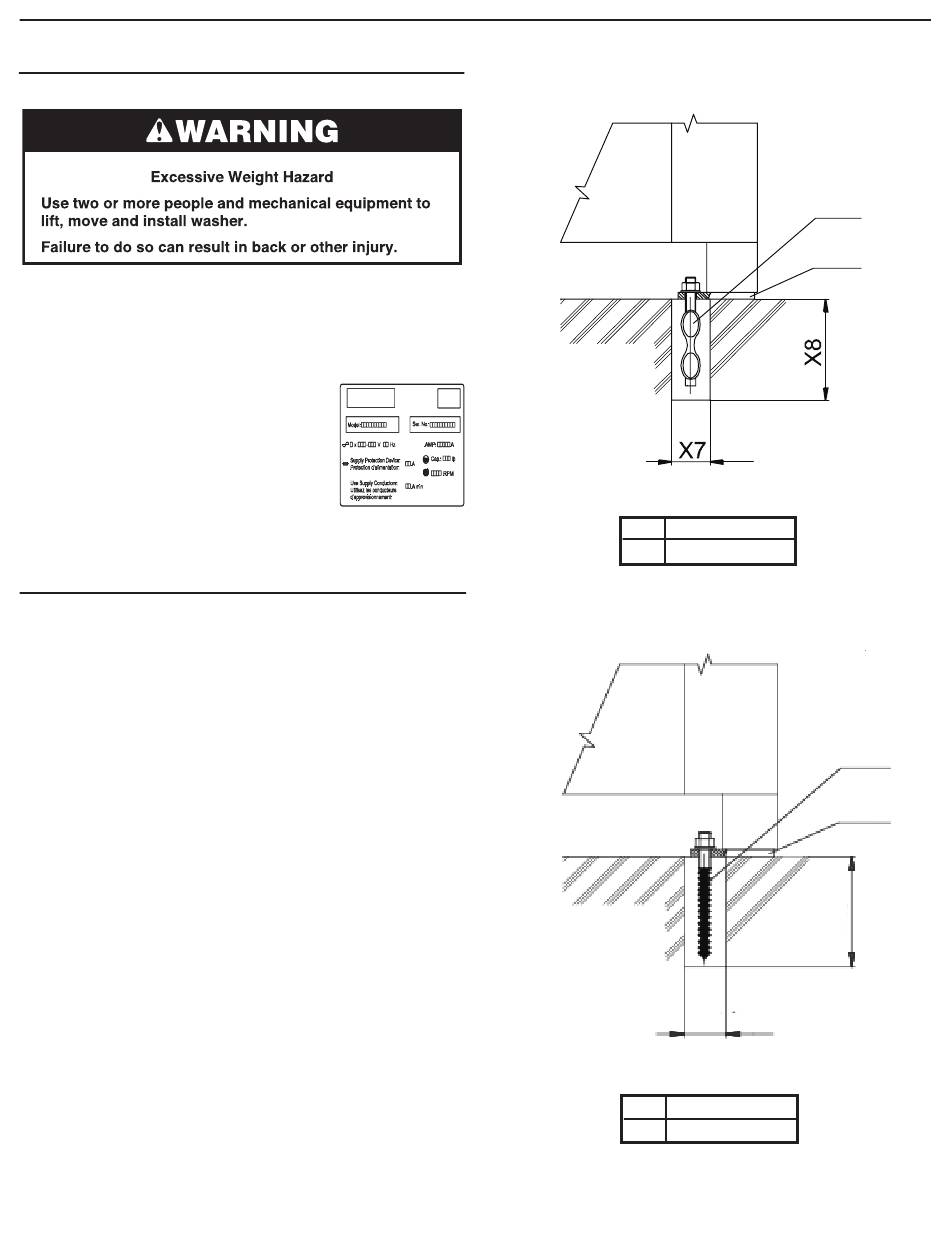

Data Plate
Models MFS80, MFS100, MFS125
Bolt Dimensions
X7
X8
Models MFS180, MFS230, MFS275
Bolt Dimensions
X7
X8
4
2
2 - Washer foot
4- Anchoring bolt
1.57" (40 mm)
5.9" (150 mm)
1
2
X8
1- Anchoring bolt
2 - Washer foot
X7
2.36" (60 mm)
6.3" (160 mm)
