Page 1: Top And Cabinet Parts

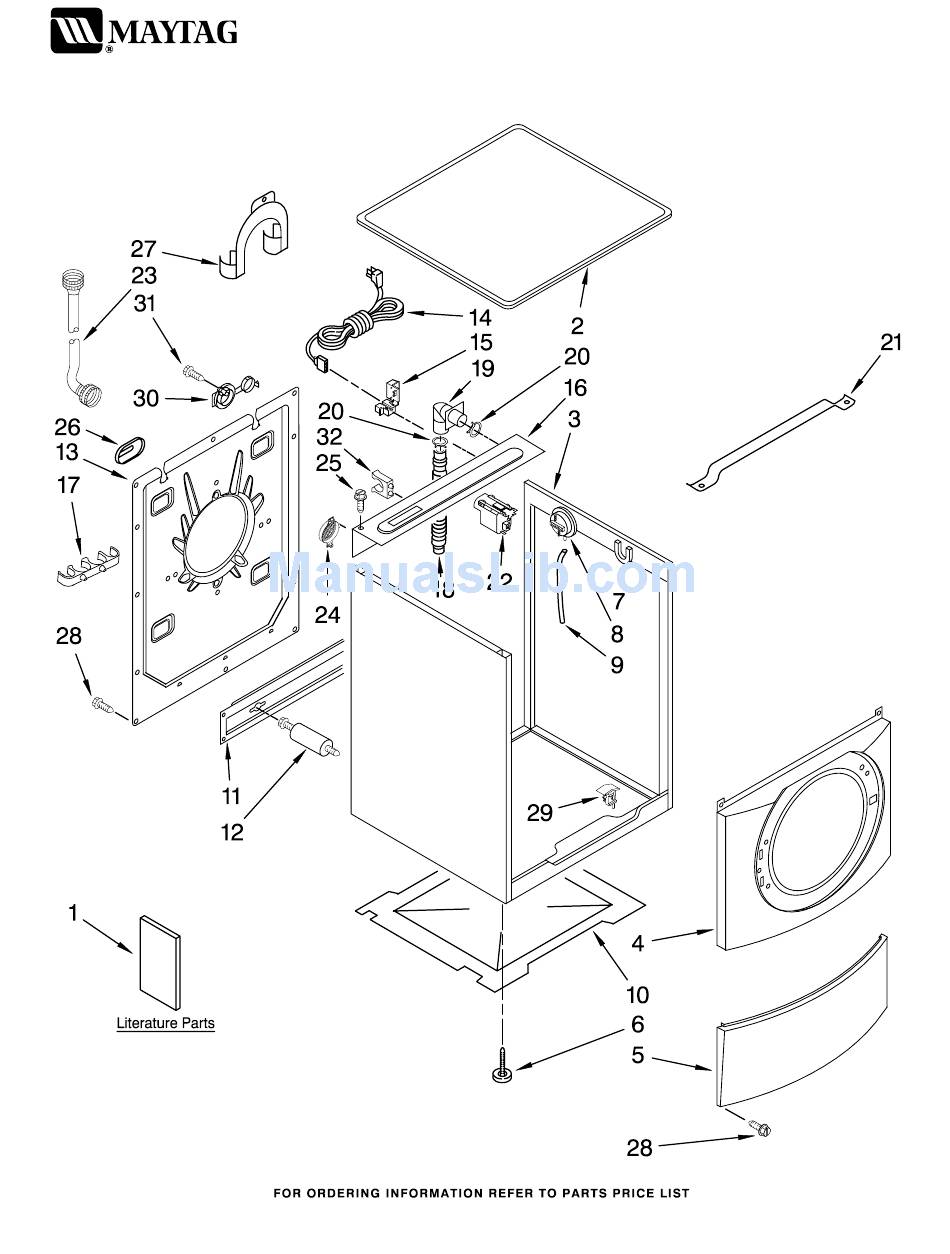

TOP AND CABINET PARTS AUTOMATIC WASHER For Models: MFW9800TQ0, MFW9800TK0 (White) (Pacific Blue) 10−07 Printed in U.S.A. (drd) Part No. W10157670 Rev. A... - Page 2 8182541 Pacific Blue Panel, Front 8182605 White W10163317 Pacific Blue Toe Panel 8181643 White 8182550 Pacific Blue 8181636 Foot, Leveling 8181763 Bracket, Spring For Models: MFW9800TQ0, MFW9800TK0 (White) (Pacific Blue) Illus. Part DESCRIPTION 8181695 Switch, Pressure 8181739 Hose, Pressure Switch...
- Page 3 DOOR AND LATCH PARTS For Models: MFW9800TQ0, MFW9800TK0 (White) (Pacific Blue) W10157670...
- Page 4 DOOR AND LATCH PARTS For Models: MFW9800TQ0, MFW9800TK0 (White) (Pacific Blue) Illus. Part DESCRIPTION 8182210 Clamp, Bellow To Tub 8182119 Bellow 8182634 Lock, Door 8181760 Screw 8182211 Clamp, Bellow To Front Panel 8181758 Screw 8181651 Hook, Door 8181661 Screw 8181660 Screw...
-
Page 5: Control Panel Parts
CONTROL PANEL PARTS For Models: MFW9800TQ0, MFW9800TK0 (White) (Pacific Blue) W10157670... - Page 6 CONTROL PANEL PARTS For Models: MFW9800TQ0, MFW9800TK0 (White) (Pacific Blue) Illus. Part DESCRIPTION Panel, Control W10163309 White W10163310 Pacific Blue 8182150 User Interface 3 W10163302 Button, Power 8182183 Pal−nut 5 W10163305 Button Set, Left 6 W10163304 Button Set, Middle 7 W10163303 Button Set,...
-
Page 7: Dispenser Parts
DISPENSER PARTS For Models: MFW9800TQ0, MFW9800TK0 (White) (Pacific Blue) W10157670... - Page 8 DISPENSER PARTS For Models: MFW9800TQ0, MFW9800TK0 (White) (Pacific Blue) Illus. Part DESCRIPTION 8182862 Valve, Inlet 8181710 Hose, Flowmeter (L−Shaped) 8181751 Clamp, Hose 8181696 Flowmeter 8181708 Hose, Flowmeter 8183010 Nozzle, Inlet 8181714 O−Ring 8183022 Harness, Wiring (Inlet Valve) 8181726 Cam, Actuator...
- Page 9 TUB AND BASKET PARTS For Models: MFW9800TQ0, MFW9800TK0 (White) (Pacific Blue) W10157670...
- Page 10 TUB AND BASKET PARTS For Models: MFW9800TQ0, MFW9800TK0 (White) (Pacific Blue) Illus. Part DESCRIPTION 8182132 Nut, Pulley 8182650 Pulley 8183269 Belt 8181645 Counterweight, Front (2) 8181744 Pipe, Ventilation 8181746 Clamp 8181743 Hose, Exhaust 8181666 Tub, Rear (Includes Items 10, 22, 23 & 24)
- Page 11 8182706 Motor Control Unit 2 W10121657 Ball 8181734 Clamp 8181732 Hose, Tub to Pump 8181753 Clamp, Pump Hose 8181752 Clamp, Drain Hose W10157670 For Models: MFW9800TQ0, MFW9800TK0 (White) (Pacific Blue) Illus. Part DESCRIPTION 8182821 Pump (Complete) 8182820 Grommet, Damper (Rear)
-
Page 12: Optional Parts (Not Included)
OPTIONAL PARTS (NOT INCLUDED) For Models: MFW9800TQ0, MFW9800TK0 (White) Illus. Part PAINT, TOUCH−UP (1/2oz.) 72017 White 4396816 Pacific Blue PAINT, PRESSURIZED SPRAY (12 oz.) 350938 Primer, Gray 350930 White PAINT, BULK (1 qt.) 799344 White (Uncut) ACCESSORY PARTS 285863 Drain Extension...
Need help?
Do you have a question about the MFW9800TK0 and is the answer not in the manual?
Questions and answers

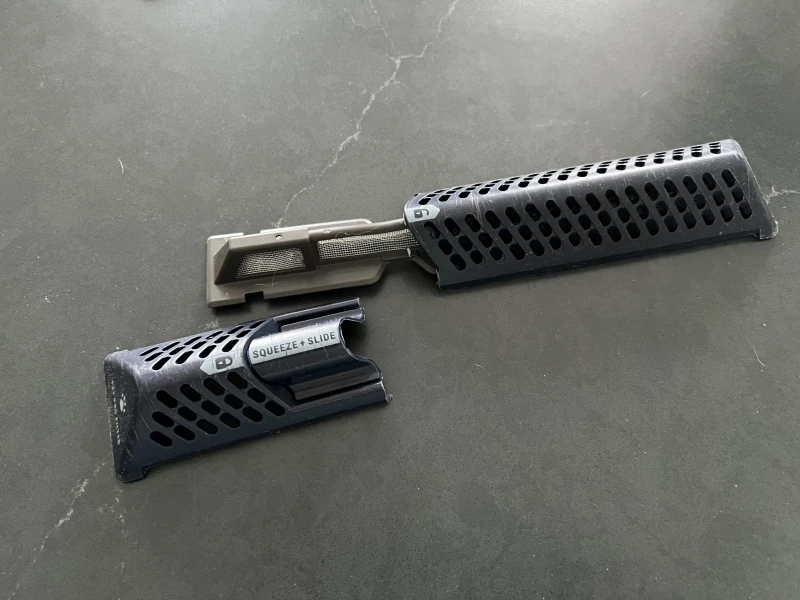

Model MFW7020RF need replacement of pet pro filter Unable to locate part number in parts breakdown
