Sensor-
Interface
The datalogger DLx-MET is a complete measurement system serving for the acquisition and
storing of at minimum 10 meteorological parameters (e.g. temperature or radiation). Additionally in
the version 9.1756.x0.100 a so-called Sensor-Interface (SIF, see Figure 2) printed circuit board
with several measuring channels is connected to the serial interface COM2. Optional measuring of
other parameters or special sensors with serial output can be done by connecting the so-called
Sensor-Interface or a serial sensor to the serial interface COM2 or COM3 (RS485 2W, 2-Wire, half-
duplex). The serial interfaces COM1 (used for commands and data output) and COM2 are
adjustable from operation mode RS232 to RS485-4W (4-Wire, full-duplex). See below Figure 3 for
a overview of all interfaces.
IN: Sensor
Out: Telegram
Sensor - Interface

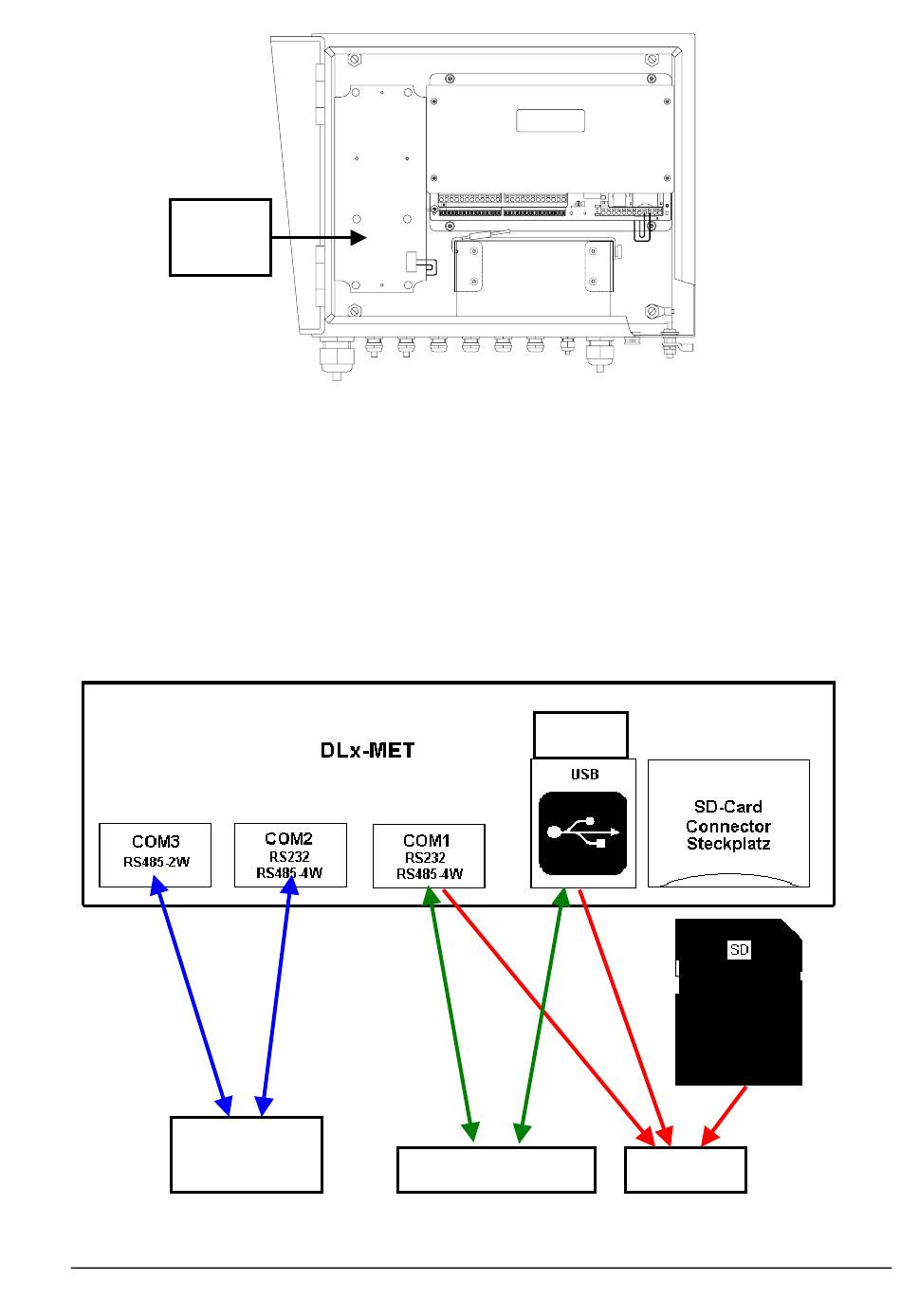

Figure 2: Assembly with Sensor-Interface (9.1756.x0.100)

IN/OUT: Commands
Figure 3: Interfaces of the datalogger
DLx MET
Akku
Device
5 - 56
Out: Data
021579/06/09
