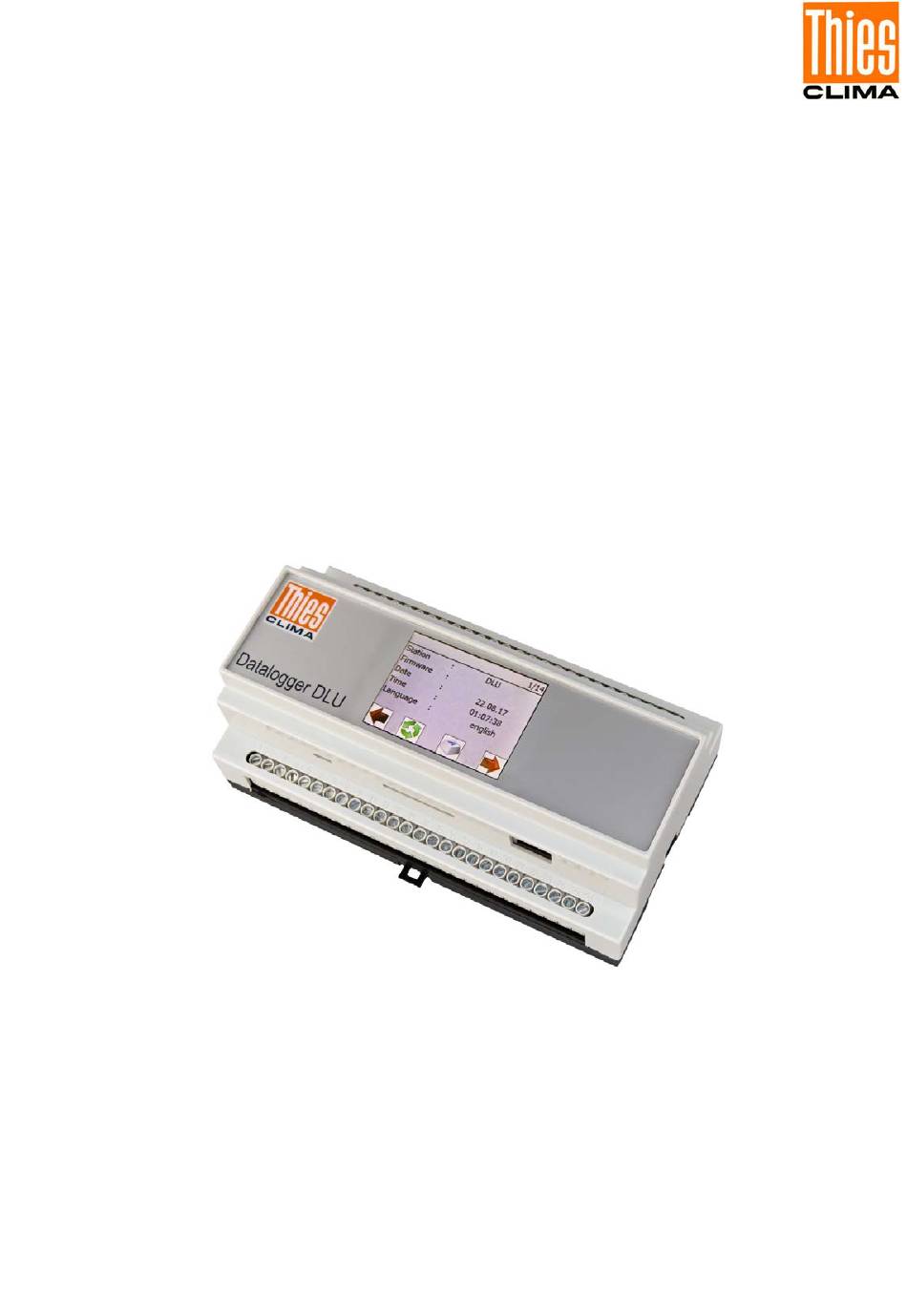

- Page 1 Datalogger DLU First Steps 9.1711.10.010 Dok. 021841/07/18 T H E W O R L D O F W E A T H E R D A T A...
- Page 2 Safety Instructions • Before operating with or at the device/product, read through the operating instructions. This manual contains instructions which should be followed on mounting, start-up, and operation. A non-observance might cause: - failure of important functions - endangerment of persons by electrical or mechanical effect - damage to objects •...
- Page 3 Start with Network without DHCP Support ..............5 Test of Connection ....................6 Figures Figure 1: Datalogger DLU ...................... 4 Figure 2: Dialogue for display of IP-settings ................4 Figure 3: Dialogue for Display of IP-settings ................5 Figure 4: Password entry ....................... 5 Figure 5: Address entry into an internet explorer ..............
- Page 4 1 Startup Connect the datalogger to your local network (Ethernet via RJ45), and to supply voltage 24V. Figure 1: Datalogger DLU It must be clarified on the setup, if the local network supports DHCP or not. When the network supports DHCP the IP-address is assigned automatically to the datalogger. Please ask your administrator if your local network will support the DHCP service.
- Page 5 After approx. 3 minutes, the IP-address should adjust to the address which has been assigned by the local network. Further steps for startup, see from 1.3 1.2 Start with Network without DHCP Support After the start of the datalogger, please scroll into the dialogue for the display of the IP- settings by means of the display keys.
- Page 6 1.3 Test of Connection For testing the connection please start your internet explorer Enter the IP-address of the DLU into the headline of the explorer. It is the address which you have entered, or the address which was assigned by DHCP server. Example: Figure 5: Address entry into an internet explorer Now, the WEB page of the DLU is displayed.
- Page 7 © Adolf Thies GmbH & Co. KG · Hauptstraße 76 · 37083 Göttingen · Germany 021841/07/18 Tel. +49 551 79001-0 · Fax +49 551 79001-65 · info@thiesclima.com ·www.thiesclima.com Page 7 of 8...
- Page 8 Please contact us for your system requirements. We advise your gladly. ADOLF THIES GMBH & CO. KG Meteorologie und Umweltmesstechnik Hauptstraße 76 · 37083 Göttingen · Germany Tel. +49 551 79001-0 · Fax +49 551 79001-65 info@thiesclima.com www.thiesclima.com © Adolf Thies GmbH & Co. KG · Hauptstraße 76 · 37083 Göttingen · Germany 021841/07/18 Tel.
