2.1.3

Cable gland

In order to carry out an EMC-compatible installation the cable screen (excepted the supply cable,
which is normally not shielded) is to be connected to the contact spring of the screwed cable gland
(see Figure 10) For wiring plan ref. to chap. 7.
1. With the Standard Contacting (see
- Strip back the outer sheath and screen (shielding)
- Make a round cut in the outer sheath approx. 15 mm along but do not remove the sheath
- Guide the cable through the cable gland
- Pull off the outer sheath
- Pull back the cable until the connection is made between the cable screen and contact spring
- Turn shut... and it is ready for use!
2. With thin Wires without an Inner Sheath (see
- Strip back the outer sheath
- Pull back the screen braid approx. 15-20mm over the outer sheath
- Insert the cables into the cable gland until the contact is made between the cable screen and
contact spring
- Turn shut ....and it is ready for use!
3. When Routing the Cable Screen to another Connection (see
- Expose the screen braid approx. 10 mm
-Guide the cable through the cable gland until the connection is made between the cable screen and
contact spring
- Turn shut...and it is ready for use!
Figure 10-1

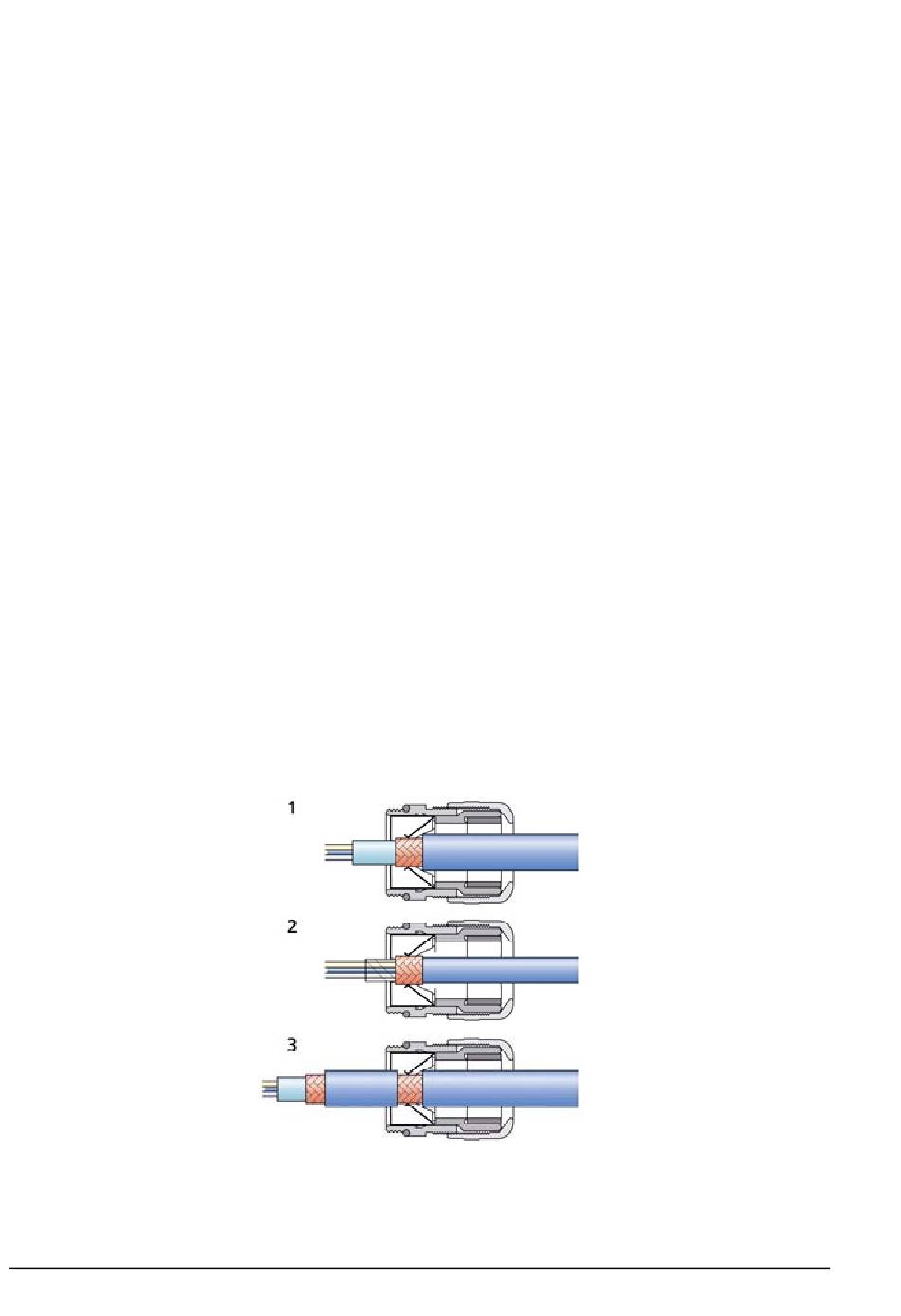

Figure 10: Screen cable connection to the cable gland
12 - 56
)
Figure 10-2
)
Figure 10 3
- )
