Instruction for Use
021579/06/09
Datalogger DLx-MET
9.1756.x0.x0x
Software Version V1.01
9.1756.00.000
9.1756.00.100
ADOLF THIES GmbH & Co. KG
Hauptstraße 76
37083 Göttingen Germany
Box 3536 + 3541
37025 Göttingen
Phone ++551 79001-0
Fax ++551 79001-65
www.thiesclima.com
info@thiesclima.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DLx-MET and is the answer not in the manual?

Questions and answers

Related Manuals for Thies CLIMA DLx-MET

Summary of Contents for Thies CLIMA DLx-MET

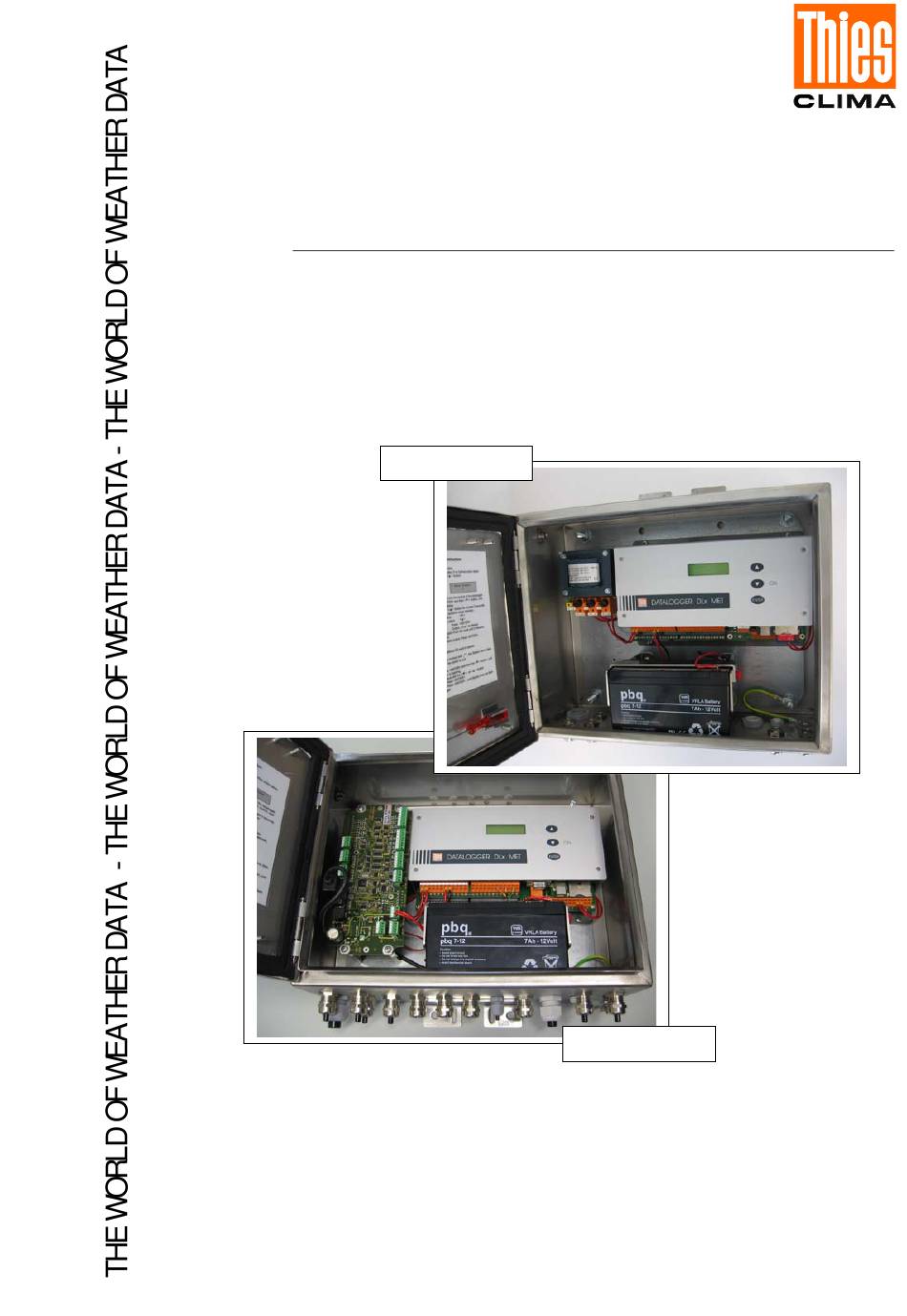

  • Page 1 Instruction for Use 021579/06/09 Datalogger DLx-MET 9.1756.x0.x0x Software Version V1.01 9.1756.00.000 9.1756.00.100 ADOLF THIES GmbH & Co. KG Hauptstraße 76 37083 Göttingen Germany Box 3536 + 3541 37025 Göttingen Phone ++551 79001-0 Fax ++551 79001-65 www.thiesclima.com info@thiesclima.com...

  • Page 2: Table Of Contents

    Contents MODELS............................ 4 CONSTRUCTION OF THE DATALOGGER ................4 MOUNTING ......................... 8 2.1.1 Wall-mounting ....................... 9 2.1.2 Mast-installation for case version B ................11 2.1.3 Cable gland......................... 12 2.1.4 Accumulator ........................ 13 2.1.5 Mains supply ....................... 13 2.1.6 Solar panel........................14 2.1.7 DCF-Active Antenna (9.1760.00.000).................
  • Page 3 WIRING PLAN ......................... 52 EC-Declaration of Conformity ....................54 Figure Figure 1: Connections ........................4 Figure 2: Assembly with Sensor-Interface (9.1756.x0.100).............. 5 Figure 3: Interfaces of the datalogger ....................5 Figure 4: Block diagram supply ......................6 Figure 5: Front view.......................... 7 Figure 6: Dimension illustration of the case version B (in mm) ............

  • Page 4: Models

    1 MODELS Order-No. Sensor-Interface Transformer Case version 9.1756.00.000 9.1756.10.000 100VA 9.1756.00.100 9.1756.10.100 9.1756.00.001 260VA 9.1756.10.001 2 CONSTRUCTION OF THE DATALOGGER Prim. 230V 0,43A 50/60Hz Prim.Sicherung 0,5 AT Sek.: 1 x 24V 3,75A 100 VA DLx MET Sek. Sicherung 1 x 4,0 AT Sek.: 1 x 16V 0,6A Sek.

  • Page 5: Figure 2: Assembly With Sensor-Interface (9.1756.X0.100)

    Akku Figure 2: Assembly with Sensor-Interface (9.1756.x0.100) The datalogger DLx-MET is a complete measurement system serving for the acquisition and storing of at minimum 10 meteorological parameters (e.g. temperature or radiation). Additionally in the version 9.1756.x0.100 a so-called Sensor-Interface (SIF, see Figure 2) printed circuit board with several measuring channels is connected to the serial interface COM2.

  • Page 6: Figure 4: Block Diagram Supply

    The instrument is battery-operated (12V), thus allowing it to be set up according to model and sensor equipment at site without any mains supply for some hours or even days (applies not for sensors measured by the Sensor-Interface). The exchangeable storage battery is situated in the data logger case.

  • Page 7: Figure 5: Front View

    the voltage is measured every 5 minutes; when it is higher than 11,0 V the normal measuring routine is continued. An integrated lithium battery buffers the contents of the data memory and the clock operation when no other power supply is available. This means that the saved values and the time are not lost even when there is no additional power supply.

  • Page 8: Mounting

    2.1 MOUNTING The datalogger is designed for wall-mounting or installation on a mast. For proper protection against lightning strikes we strongly recommend to connect a preferably short cable (≤1m) with a cross section greater than 6mm² between the case (see Figure 1, Grounding Earth) and the mast (if used) with an earth terminal (e.g.

  • Page 9: Wall-Mounting

    2.1.1 Wall-mounting For mounting on a wall or likewise use the 4 mounting holes: • diameter 10mm, see • (applies for 9.1756.00.x0x) • diameter 8.4mm, see Figure 7 (applies for 9.1756.10.x0x) Figure 6: Dimension illustration of the case version B (in mm) 9 - 56 021579/06/09...

  • Page 10: Figure 7: Dimension Illustration Of The Case Version A (In Mm)

    Figure 7: Dimension illustration of the case version A (in mm) 10 - 56 021579/06/09...

  • Page 11: Mast-Installation For Case Version B

    2.1.2 Mast-installation for case version B The following instructions are only valid for case version B (9.1756.00.x0x). Cut two piece in the requested length of the guy rope (1 meter) according to table (see Table 1). Insert the strap into the housing from the screw head side, and bend a projection of 20mm over the ridge (see Figure 8).

  • Page 12: Cable Gland

    2.1.3 Cable gland In order to carry out an EMC-compatible installation the cable screen (excepted the supply cable, which is normally not shielded) is to be connected to the contact spring of the screwed cable gland (see Figure 10) For wiring plan ref. to chap. 7. Figure 10-1 1.

  • Page 13: Accumulator

    2.1.4 Accumulator The accumulator or battery is to be connected always. It is absolutely necessary to pay attention to the specified polarity (red -> + ,black -> -)! Remark: When changing the accumulator, or with active power- or solar-supply please take care that the red cable is not in contact with the housing parts (danger of short-cut) During the installation please take care that all connections are voltage-free, and that people and/or instruments are not endangered!

  • Page 14: Solar Panel

    Additionally a red LED lights up between clamp 67 and 68 for control the 24VAC supply (normally used for heating of sensors). In case of malfunction check the fuses 230VAC and 24VAC. Remark for 9.1756.x0.001: The 26Vac output has no fuse, but a 135°C thermal trip switch which breaks the primary supply.

  • Page 15: Dcf-Active Antenna (9.1760.00.000)

    2.1.7 DCF-Active Antenna (9.1760.00.000) For installation of the optional DCF-Active Antenna (9.1760.00.000) it is necessary to notice the following: Generally, please take care that the position of the antenna is optimal. It should be aligned horizontally to, and across the direction of the transmitter (situated near Frankfurt/M., N 50° 01’, E 09°...

  • Page 16: Setting Digital Input

    2.1.9 Setting Digital Input The digital input „Event / Length of time” (Sensor 10) can be configured for two possibilities with the Jumper P2: Jumperposition P2 Logic * Inverse Level Miscellaneous 3.3V(5V TTL) Pull-up Resistor 100kΩ to 3.3V Yes ** Resistor >...

  • Page 17: Setting Resistors Serial Interfaces

    2.1.10 Setting Resistors Serial Interfaces There are three multi-pin connectors for the serial interfaces when used in RS485 mode. To get the lowest current consumption and no negative impacts when COM1(P5) or COM2(P4) are in the RS232 mode all respective jumpers must be open. COM1 and COM2 are adjustable by firmware between RS232 and RS485 (ref.

  • Page 18: Operation

    3 OPERATION When the accumulator is connected, the datalogger starts automatically with the so-called Bootloader (uploads new Firmware), and re-initialises itself. The Bootloader waits 30 seconds and start the actual Firmware automatically. After the first activation, time and date should be controlled.
  • Page 19 SEQUENCE OF DISPLAY VALUES: 1. Station name 2. Date and time of datalogger 3. Data output Internal sensor measured instantaneous values: Sensor 1: Wind speed Sensor 2: Wind direction Sensor 3: Temperature 1 Sensor 4: rel. Humidity Sensor 5: Precipitation Sensor 6: Air pressure Sensor 7:...
  • Page 20 1. STATION NAME: * Station: THIES DLx(Met) V1.01a USB:0 The station name serves to distinguish the data from several stations. The name (here: "THIES") can comprise up to 5 characters. On the readout, this name is output along with the data via the serial interface.
  • Page 21 4. SENSOR 1 Wind speed: * Windspeed: NN.N m/s Classic Line 2: Display of the instantaneously measured wind speed. Line 3: Display and input type of sensor (Compact [4.3519.X], Classic [4.3303.X], First Class [4.3350.X] and current flow test of sensor (I:0 -> off I:1 -> on) Serial commands: “WV”...
  • Page 22 7. SENSOR 4 relative Humidity: Rel.Humidity : NNN.N % Display of the instantaneously measured rel. Humidity. Measuring range: 0.2 ... 100 % r.H. °C Resolution: 0.1 % r.H. 8. SENSOR 5 Precipitation: * Precipitation: NNN.N mm Line 2: Display of the amount of precipitation which has fallen during the current day. The sum of all precipitation since midnight, including the during the maintenance mode.
  • Page 23 10. SENSOR 7 Radiation: * Radiation NNNN.N W/sm NN.NNNN uV/W Line 2: Display of the instantaneously measured global radiation. Line 3: Display and input of the radiation constant [µV/W] Serial command: “SK1” (ref. to chap.5.5) Measuring range: 0 ... >1428 W/m Resolution : <1 W/m 11.
  • Page 24 13. SENSOR 10 Event / Length of time: * Event/Length : NNN.N Event Line 2: Display of the instantaneously measured digital state input: Mode Event: Level active (-> 1) / non-active (-> 0) Mode Length: Length of time in minutes during the current day Line 3: Display and input of the mode of the digital state input (Event or Length) and the active logic (L:0 ->...
  • Page 25 15. SENSOR CONNECTION: x = “+” Sensor connected Sensor connec.: x = “-“ Sensor not connected xxxxx xxxxx x = “0” Current flow test of sensor off x = “X” Sensor not configured (see 14. sensor configuration) Sensor 1…10 x = “?” Sensor not testable This display shows whether a internal sensor is connected.
  • Page 26 18. VOLTAGE OF THE ACCUMULATOR / Status of Power Supply : voltage >11.5 V Accumulator: voltage 10.6 ... 11.5 V 12.5 V voltage <10.5 V loading/replacing of the accumulator ! Mains AC: 1 Display of the measured voltage of the accumulator. Line 3 displays the state of power supply (1: mains voltage present, 0: no mains voltage).
  • Page 27 21. SWITCH OUTPUT TIMER: X= 1,2,3,4,5,6 *PROG-Timer: X *PROG-Timer: programmed deactivated Display of the programmed timers for the connection of a consumer load (for ex. GSM-Modem, refer to chap.3.2.6). Serial command: “FS” (ref. to chap.5.5) 22. A/D-Converter State: A/D: OK State for service purposes only: (A/D converter in order) (A/D converter defect)
  • Page 28 25. BAUD RATE (COM2) COM 2:SIF001 9600 Bd 8N1 RS232 Display of the settings of the serial interface COM2. Setting options are the same like COM1 (see above). In the first line the actual setting of the mode is displayed (here “SIF001”, see display 16: SERIAL INTERFACES MODE for adjustment).

  • Page 29: Changing Parameters

    3.2 CHANGING PARAMETERS All display values which are output with a "*" to top left can be changed. In order to be able to edit the displayed value, first simply press the <ENTER>-key and then the <∇>-key. The value to be changed is then indicated by the flashing cursor. Now you can release both keys.
  • Page 30 Example: meas. cycle 1 second mean storing cycle 10 minutes A mean value is calculated from 600 measuring values, and stored. The calculation of the mean value is carried out as arithmetic mean with „normal“ sensors. Exceptions are the wind direction (vectorial mean), and precipitation (formation of sums).

  • Page 31: Adjust Serial Interfaces Mode

    Mean storing cycle Mean value time period Extreme value time period Extreme storing cycle [day] [day] 1 min 28.8 2 min 57.6 3 min 86.4 4 min 10.8 5 min 13.5 6 min 16.2 10 min 12 min 15 min 432 (1.1 a) 20 min 576 (1.5 a)

  • Page 32: Sensor Thies Sonic

    If more than one sensor is selected, the order of the sensor values in the display and memories is done according the priority in the following table. The sensor with the lowest priority value is output first. E.g. when Sonic (priority 1) and SIF(priority 3) are set, the values from the Sonic are given out before the data of the SIF.

  • Page 33: Sensor-Interface Sif

    3.2.5.2 SENSOR-INTERFACE SIF In the case of model 9.1756.X0.100 is a so-called sensor-interface SIF build in and is connected to COM2 (9600Bd 8N1, RS232 mode) of the datalogger. Available are different SIF which separate between number and type of channels. The data are requested with the command “mm”. The command “SI2”...

  • Page 34: Dcf77 Receiving Control

    3.2.7 DCF77 RECEIVING CONTROL DCF77 Test: ss nn DCF77 Test: -- D:1.0s L:10 0 DCF-antenna on DCF-antenna off This display serves for controlling and setting of the DCF77-antennna. „ss“: indicates the seconds (0-60, with overflow „??“), after the minute mark has been identified „nn“: cycle counter (0-99) of the received second marks.

  • Page 35: Dcf77 Synchronization

    3.2.8 DCF77 SYNCHRONIZATION *DCF77: 0 *DCF: 1 !!.!!.!! ffff n !!:!!:!! !!.!!.!! !!:!! 0 !!.!!.!! !!:!! 0 DCF-antenna on DCF-antenna off This display serves for switching on and off the DCF-antenna, indicates the last time of synchronization (third line) and the manual start of synchronization. When the DCF-antenna is active, it tries to receive a time telegram at night from 01:30 h (max.

  • Page 36: Measuring Value Acquisition

    4 MEASURING VALUE ACQUISITION For reasons of current consumption the display, and other control parts are switched off in case that for 4 minutes no button has been pressed, or no data communication over COM1 or USB has been proceeded. When the display is on (display mode) all configured internal channels are scanned every second.
  • Page 37 Display mode (display on) Every second: Measure instantaneous values Maintenance ? Depending on storing cycle: Calculate and store mean- and extreme values Flow diagram in the display mode (display on) Figure 15: 37 - 56 021579/06/09...

  • Page 38: Data Output

    5 DATA OUTPUT On principle, there are three interfaces existing at the datalogger for the data output: serial interface COM1 (RS232/RS485) serial interface USB SD-Card (Secure Digital memory Card) With the serial interfaces COM1 and USB it is possible to query the data of the datalogger via a cable from another computer.

  • Page 39: Data Output Manually

    5.1 DATA OUTPUT MANUALLY With the manually data output the complete ring memory (mean or extreme) will be given out on serial port COM1 or on a SD-Card (ref. to chap. 5.2). SD-Card: Set the display to * Data Output Push and snap in the SD-Card into the slot of the datalogger.
  • Page 40 Serial (COM1): As above but without SD-card in socket (number 2 and 9 do not apply). Additional information’s for the using of SD-Cards: The data files are stored on the SD-Card in the following tree structure: Root-Directory (here drive D) Subdirectory (Station name) sssss\ Mean memory files (nn: 00..99)

  • Page 41: Recommendations On Sd-Card

    5.2 RECOMMENDATIONS ON SD-CARD To display the so-called “Card Identification Register”(CID: MID, OID, PNM, PRV) of the SD-Card refer to chap. 3.1 (Baudrate COM1 / SD-Card). The data of the CID is necessary to differ the cards, since the label on the card is normally of no relevance. List of tested SD-Cards (maximum size 2GB, sorted by manufacturer ID) see following table.

  • Page 42: Connecting Rs232 Cable Of Com1

    5.3 CONNECTING RS232 CABLE OF COM1 The serial interface COM1 in RS232 mode is designed as “three-wire”-connection. The transmission line (TxD) and the receiving line (RxD) are to be crossed in the cable. PC/TERMINAL Datalogger DLx cable Sub-D25 (25 pins) Sub- D9 Ground Ground...

  • Page 43: Format Of The Commands

    5.5 FORMAT OF THE COMMANDS The following commands operate with the serial interfaces COM1 and USB of the datalogger. The commands are 4 to 12 bytes long: STX ? ? ? ? ? ? ? ? ? ? ETX Begin of command: Command: End of command: 0x02(Hex) / Ctrl-B...
  • Page 44 „DE“<DdMoYyHhMi> Output of stored extreme data from a specific time “de” ”<d><m><y><h><m> Description of parameters: refer to chap. 5.5.1 "EP" Output of EEPROM-data (parameter memory) for service purposes Logger status: Output station name, date and time , state of the AD-transducer, sensor configuration, measuring and storing rates, voltage of the "LL"...

  • Page 45: Table 9: List Of Commands

    “SI2”<AAAAAAA> Transparent Gateway / Bridge command to Sensor-Interface SIF (9.1756.x0.100) The command <AAAAAAA> (up to 7 signs) is send to COM2 or COM3 and the answer is given back. STX and ETX is added automatically. Operation only if SIF configured. Example: STX “SI2HH”...

  • Page 46: Parameter For Memory Commands

    5.5.1 Parameter for memory commands Remark: Time duration for searching mean data can be up to several seconds. ASCII parameters (2 bytes per parameter, commands “TS”, “DS”, “TE”, DE”) : Dd: day (01..31) Mo: month (01..12) Yy: year (00..99) w/o century Hh: hour (00..23) Mi: minute (00..59) Example:...

  • Page 47: Dataformat

    5.6 DATAFORMAT The data are output in tabular form with fixed telegram length. Separator is at least one space (ASCII 32). Lines are concluded with "CR LF". Decimal separator is the point. Erroneous values are marked by one or several "?" respectively “!”. Non-configured internal channels are marked by one or more “-“.

  • Page 48: Extreme Data

    5.6.2 Extreme DATA Data Line Extreme Data: Sensor values: Sequence as in display (ref. to chap. 3.1) 1. Sensor 11.0633 0.3 11:01 3.1 11:03 ..8.03.08 11:05 CR LF line feed carriage return time date time of the maximum value maximum value time of the minimum value minimum value...

  • Page 49: Technical Data

    6 TECHNICAL DATA Housing : stainless steel Protection class : IP 65 Power supply: -Battery : 12V 7Ah (lead acid valve regulated VRLA), voltage is monitored -Solar panel : 12V 20W max -Switched Output : 12V 1.5A max. (e.g. for supplying a GSM-Modem) -Buffer-battery : 3V 0.56Ah, buffering data memory and real time clock -Mains operation...
  • Page 50 Sensor-Interface SIF001 : 6 (4x Voltages for Radiation, 2x Temperatures Pt100) Sensor-Interface SIF002 : 9 (10V, 2x 1V, 3x 20mA, 3x Temperatures Pt100) Digital Measurement: Channels synchronous-serial (wind direction: THIES 5, 8 or 10bit) 16 bit counter (wind speed: THIES compact, classic, first class) 8 bit counter (precipitation: resolution 0.1 or 0.2mm) Event / Length of time...
  • Page 51 Data output -Serial 1 (COM1) : RS232 or RS485 full-duplex adjustable Parameter: XON/XOFF-Handshake, 300...115200 Baud, 8 databits, no parity, 1 stopbit -USB : USB 2.0 full speed device, Type B connector, Type FTDI (FT245R), VIRTUAL COM PORT driver: www.ftdichip.com -Memory Card : SD-Card, Types (up to 2GB) ref.

  • Page 52: Wiring Plan

    7 WIRING PLAN Datalogger D L x - MET Maximale Leistung Trafo Beachten Note maximum Power Transformer 9. 1756. x0. x0x HZ = Heizung / Heating Niederschlag Barogeber Wind - Eingang Strahlung Wind Wind - Eingang Eingang P t 100 P t 100 Baro Transm.
  • Page 53 Additional wiring plan for Sensor-Interface SIF (1756.x0.100): G N D T X D / T - R X D / R - 53 - 56 021579/06/09...

  • Page 54: Ec-Declaration Of Conformity

    A D O L F T H I E S G m b H & C o. K G Manufacturer: Hauptstr. 76 D-37083 Göttingen Tel.: (0551) 79001-0 Fax: (0551) 79001-65 email: Info@ThiesClima.com Description of Product: DATALOGGER DLx, DATALOGGER DLx Radiation, DATALOGGER DLx-MET Article No. 9.1755.00.005 9.1755.01.013 9.1755.10.005 9.1756.00.000 9.1756.00.001 9.1756.00.100...
  • Page 55 55 - 56 021579/06/09...
  • Page 56 ADOLF THIES GmbH & Co. KG Hauptstraße 76 37083 Göttingen Germany P.O. Box 3536 + 3541 37025 Göttingen Phone ++551 79001-0 Fax ++551 79001-65 www.thiesclima.com info@thiesclima.com - Alterations reserved- 56 - 56 021579/06/09...
