GENERAL INFORMATION

The IP100/200-Series are adjustable depth insertion
paddlewheels that come in brass, PVC, or 316 stainless
models to fit 3" to 40" pipe. Adapters mate with standard
1-1/2" (11x/21x) or 2" (15x/25x), or PVC (11x/21x) NPT
threaded fittings such as saddles and weldolets which may
be purchased either locally or from Seametrics.
Ruby bearings and a non-drag Hall-effect sensor give these
meters the widest flow range of any of the paddlewheel
types. A sensor detects the passage of miniature magnets
in the six rotor blades. The resulting square-wave signal
can be sent for hundreds of feet over unshielded cable
without a transmitter and connected directly to many PLC's
and other controls without any additional electronics.

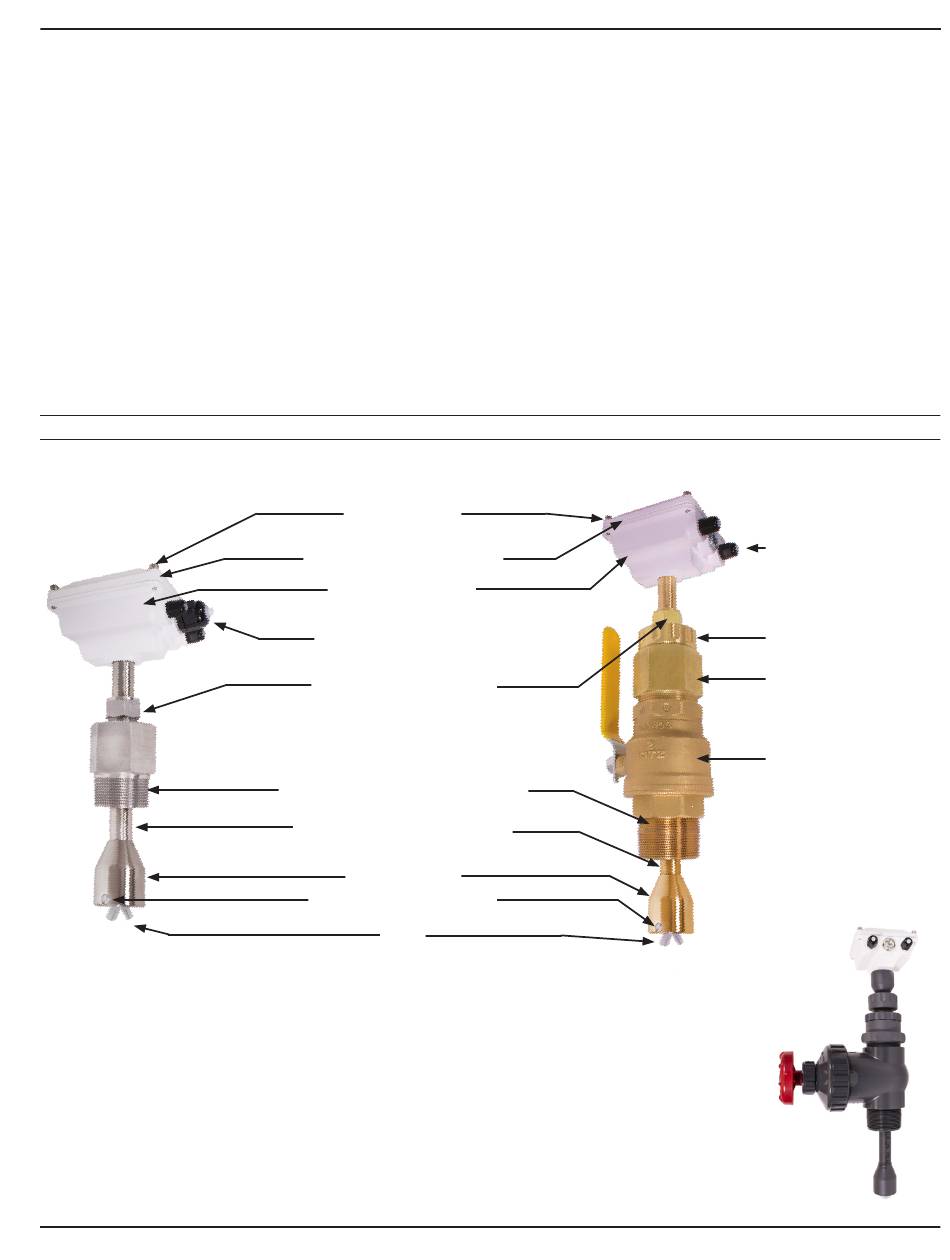

Features

IP11x/21x
(Shown with optional externally
powered electronics)
Seametrics • 253.872.0284
Housing Screw
(connect one to ground)
Optional Electronics Module
Powder-Coated Cast
Aluminum Housing
Cable Gland Strain Relief
Compression Nut for easy
adjustment, secure locking
Adapter mates with threaded fitting
FNPT 1 1/2"
3/4" tubing, low insertion force
(Typically no tool required)
Rotor Housing
Removable Jewel Bearings
Rotor
A modular system of electronics can be installed directly
on the flow sensor or mounted remotely.
(externally powered with pulse), FT440 (loop powered),
and FT450 (battery powered) all provide digital rate and
total displays, as well as a programmable pulse; the FT440
also provides a 4-20 mA analog output. The AO55 is a
blind analog (4-20 mA) transmitter. Programmable pulse
for pump pacing is available with the PD10 (available as
wall mounted unit only).
The "hot-tap" models (IP15x/25x) can be installed or
serviced without shutting down the line by means of a
2" full-port isolation valve that comes with a nipple for
installation on the pipe fitting. In most circumstances, no
special tool is required.
FNPT 2"
IP15x/25x
(Shown with optional
battery powered
electronics)
Page 3
IP100/200 SERIES INSTRUCTIONS
Cable Gland Strain Relief
Locking Collar
2" Adapter (removes to
mount hot-tap machine)
Valve Assembly for hot-
tap installation
Hot-tap valve on
PVC version
seametrics.com
The FT430
