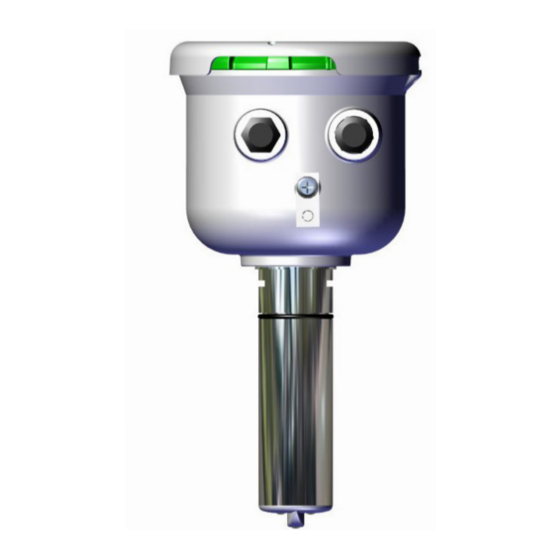

Seametrics AG90 Quick Start Manual

Recommended Tools Recommended Tools
Recommended:
• 3/32" or 2.5mm (small) flat head screw driver
• Crescent Wrench
• 5/32" Hex Key
Warnings Warnings
Refer to instruction manual for further details.
• Confirm that U-clip retainer is installed and never remove the
U-clip retainer when pipe is under pressure—may result in
serious injury.
• Saddle bolts must be tightened evenly. Do not over tighten.
• Install security seals during installation if regulations require.
• Improper sealing of cables or cable glands will void warranty.
253.872.0284
AG90 New Meter Installation
Optional:
• Channel locks
• 6" Strap Wrench
• Ensure proper grounding when required.
• Programming pipe ID, pipe insertion hole size and straight pipe
configuration is required for the meter to read.
• To prevent tampering or changes to the program, after initial
set-up, either enter a security pass-code, or remove the display
lid and place a security tab over one of the arrows before
installing the housing security seal.
Page 1 of 4
Quick Start Guide
