GENERAL INFORMATION

The iMAG-Series are the most economical flanged
electromagnetic flowmeters on the market. With electrodes
designed to discourage fouling, it is available in 2" to 12"
pipe in municipal or industrial water, waste and reclaimed
water, pump stations, and packaged plant applications.
Minimal straight pipe requirements allow iMAG-Series
meters to be used in piping configurations where there is
little space between the meter and an elbow.
iMAG-Series meters are CE certified, certified to NSF/ANSI
standard 61 and are rated IP68 for applications where the
meter may be operated under water to a depth of at least
10 feet (3 meters) continuously.

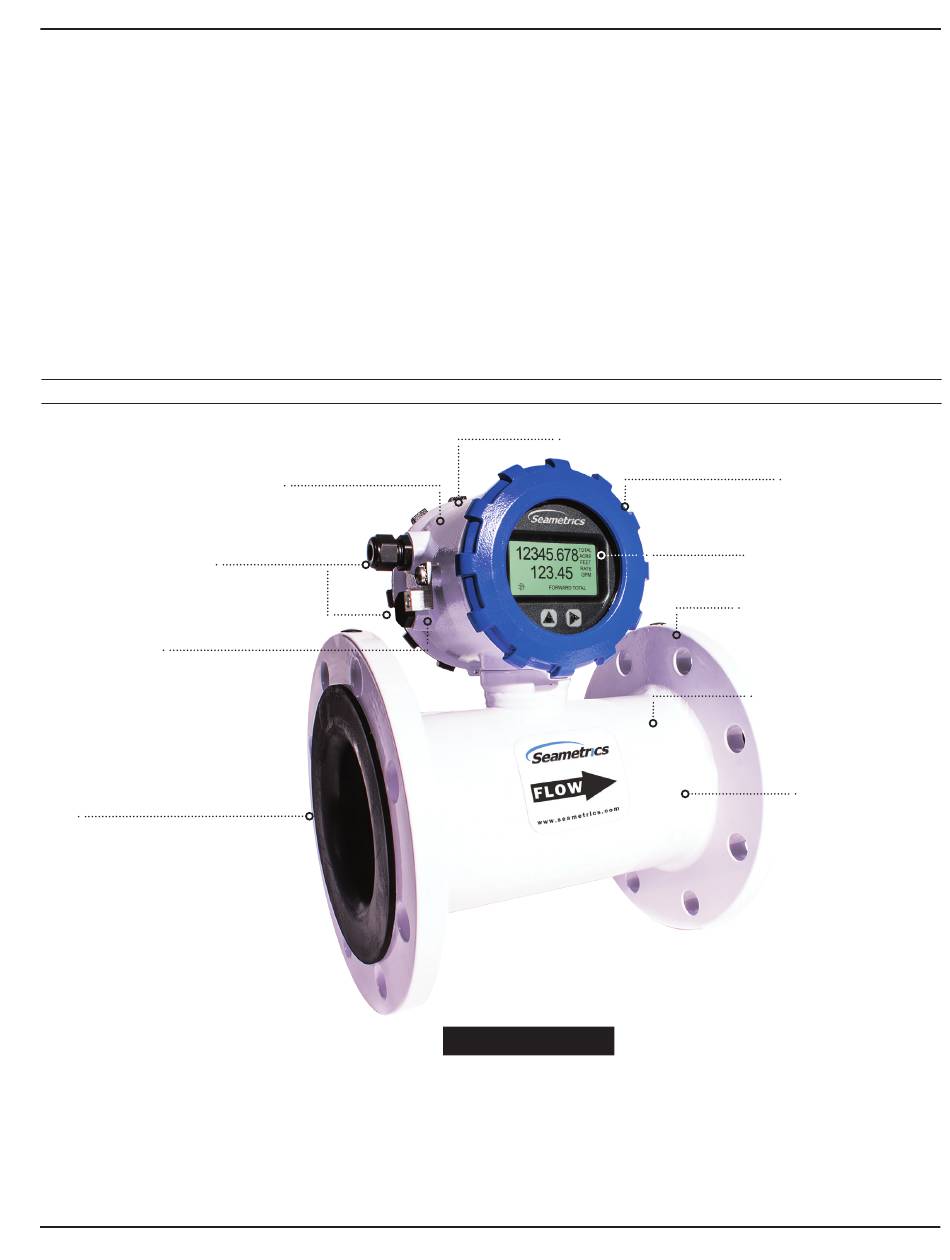

Features

Powder-coated diecast aluminum
electronics housing
Power and Output cable
port access
Equalization lug
Liner
Seametrics • 253.872.0284
Both rate and total indication are standard. Rate and total
units and pulse scaling can be set via the front panel touch
key pad by the user. Bidirectional flow reading is standard
with totals available in forward, reverse, net flow, batch
forward flow, and batch reverse flow. Built-in data logging
is available as an option for secure flow logging.
A power/output cable allows outputs for use with a variety
of Seametrics and other displays and controls for remote
reading and telemetry applications. Pulse output and
4-20mA passive current loop are standard on all units.
Additionally, high speed digital, and Modbus
outputs are optional. The iMAG 4700p can be supplied
with an optional internal AC power supply.
User access lid (on back)
No moving parts
Page 3
IMAG 4700p INSTRUCTIONS
protocol
®
Data logger port (right
side, not shown)
Rate and total indicator with
light sensor button controls
Flanges, 150 lb. ANSI pattern
316SS electrodes standard
Welded steel epoxy-
coated flow tube
