GENERAL INFORMATION

The iMAG-Series is the most economical flanged
electromagnetic flowmeter on the market. With electrodes
designed to discourage fouling, it is available in 4" to 12"
pipe in municipal or industrial water, waste and reclaimed
water, pump stations, and packaged plant applications.
(For 3" version, see iMAG 4600-300.) Minimal straight
pipe requirements allow iMAG-Series meters to be used in
piping configurations where there is little space between
the meter and an elbow.
iMAG-Series meters are rated IP68 for burial or for
applications where the meter may be under water for
prolonged periods of time.

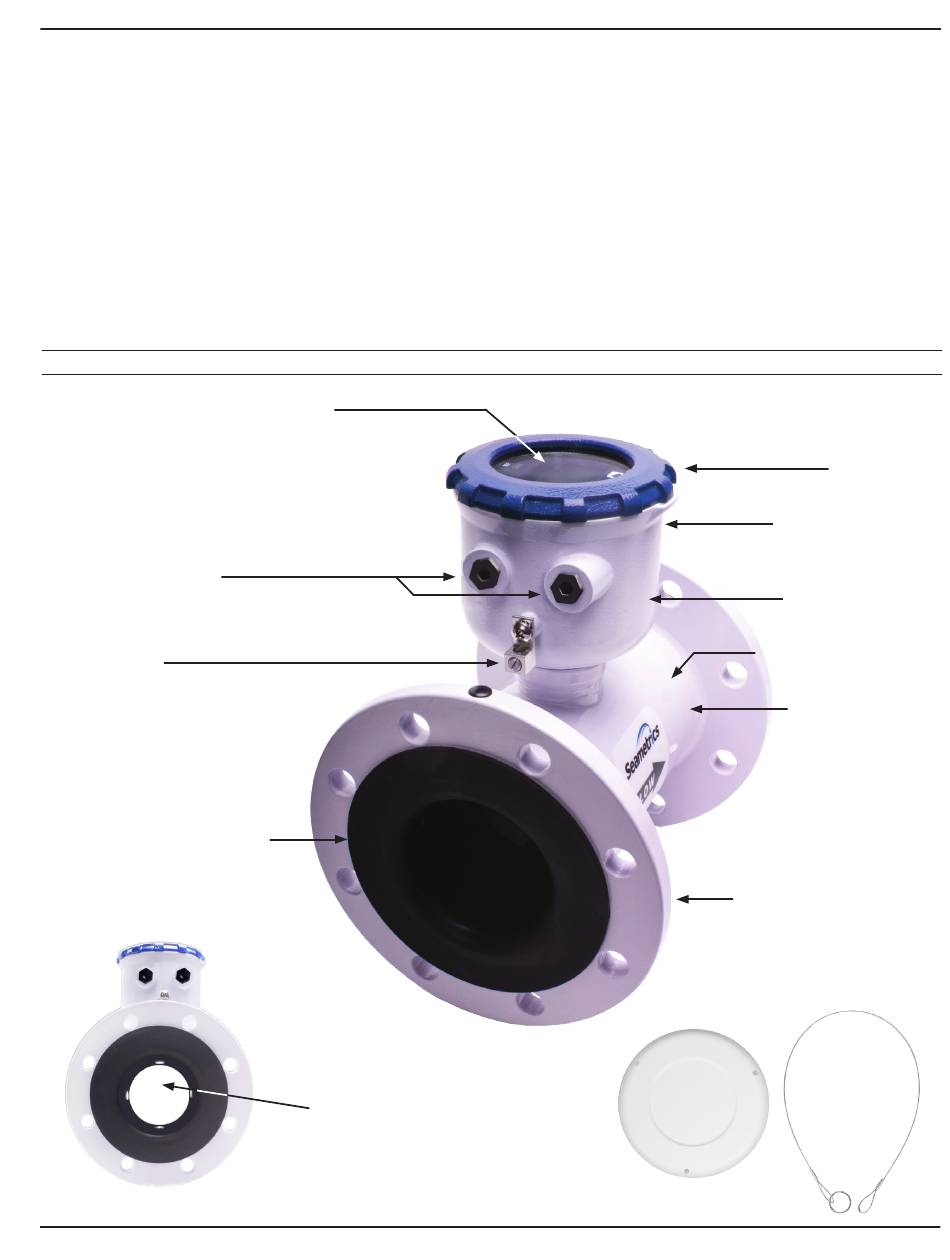

Features

Rate and total indicator with light sensor
button controls
Power and Output cable
port access
Equalization lug
Santoprene/Polypropylene Liner
Seametrics • 253.872.0284
Rate and total units and pulse scaling can be set via the
front panel touch key pad by the user. Bidirectional flow
reading is standard with totals available in forward, reverse,
net flow, batch forward flow, and batch reverse flow. Batch
totals can be reset.
A power/output cable allows outputs for use with a
variety of Seametrics and other displays and controls for
remote reading and telemetry applications. Pulse output is
standard on all models. In addition, 4-20mA passive current
loop, HART protocol, high speed digital, and Modbus
protocol outputs are optional on the externally powered
units, depending on model.
iMAG 4700
No moving parts!
Protective faceplate
cover and lanyard
Page 3
iMAG 4700 INSTRUCTIONS
User access lid
Data logger port (right
side, not shown)
Powder-coated diecast
aluminum electronics
housing
316SS electrodes (Inside)
Welded steel epoxy-
coated flow tube
Flanges, 150 lb. ANSI pattern
