GENERAL INFORMATION

The iMAG-Series is the most economical flanged
electromagnetic flowmeter on the market. With electrodes
designed to discourage fouling, it is available in 2" to 12"
pipe in municipal or industrial water, waste and reclaimed
water, pump stations, and packaged plant applications.
Minimal straight pipe requirements allow iMAG-Series
meters to be used in piping configurations where there is
little space between the meter and an elbow.
iMAG-Series meters are CE certified, certified to NSF/ANSI
standard 61 and are rated IP68 for applications where the
meter may be operated under water to a depth of up to 10
feet (3 meters) continuously.

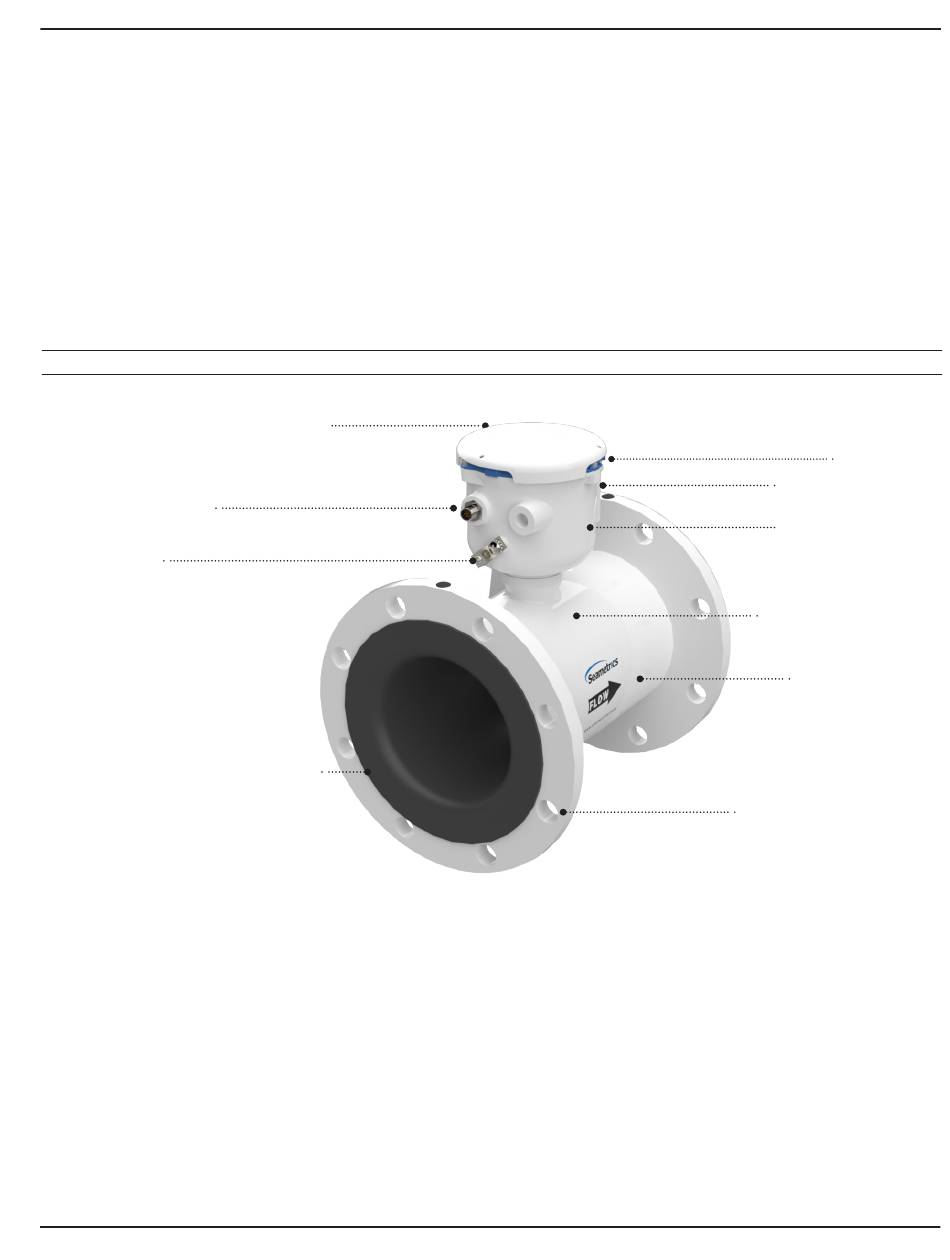

Features

Rate and total indicator with light sensor
button controls and protected by hinged cover
Power and Output cable
port access
Equalization lug
Santoprene/Polypropylene liner (4" - 12")
(Polyurethane / Noryl liner 2" & 3" only)
®
Seametrics • 253.872.0284
Rate and total units and pulse scaling can be set via
the front panel touch key pad by the user. Bidirectional
flow reading is standard with totals available in forward,
reverse, net flow, batch forward flow, and batch reverse
flow. Built-in data logging is available as an option for secure
flow logging.
A power/output cable allows outputs for use with a
variety of Seametrics and other displays and controls for
remote reading and telemetry applications. Pulse output
is standard on all models. In addition, 4-20mA passive
current loop, and Modbus
although battery life will be reduced if ordered on battery
powered units.
iMAG 4700
Page 3
iMAG 4700 INSTRUCTIONS
protocol outputs are optional,
®
User access lid
Data logger port (right
side, not shown)
Powder-coated diecast
aluminum electronics
316SS electrodes (Inside)
Welded steel epoxy-
coated flow tube
Flanges, 150 lb. ANSI pattern
