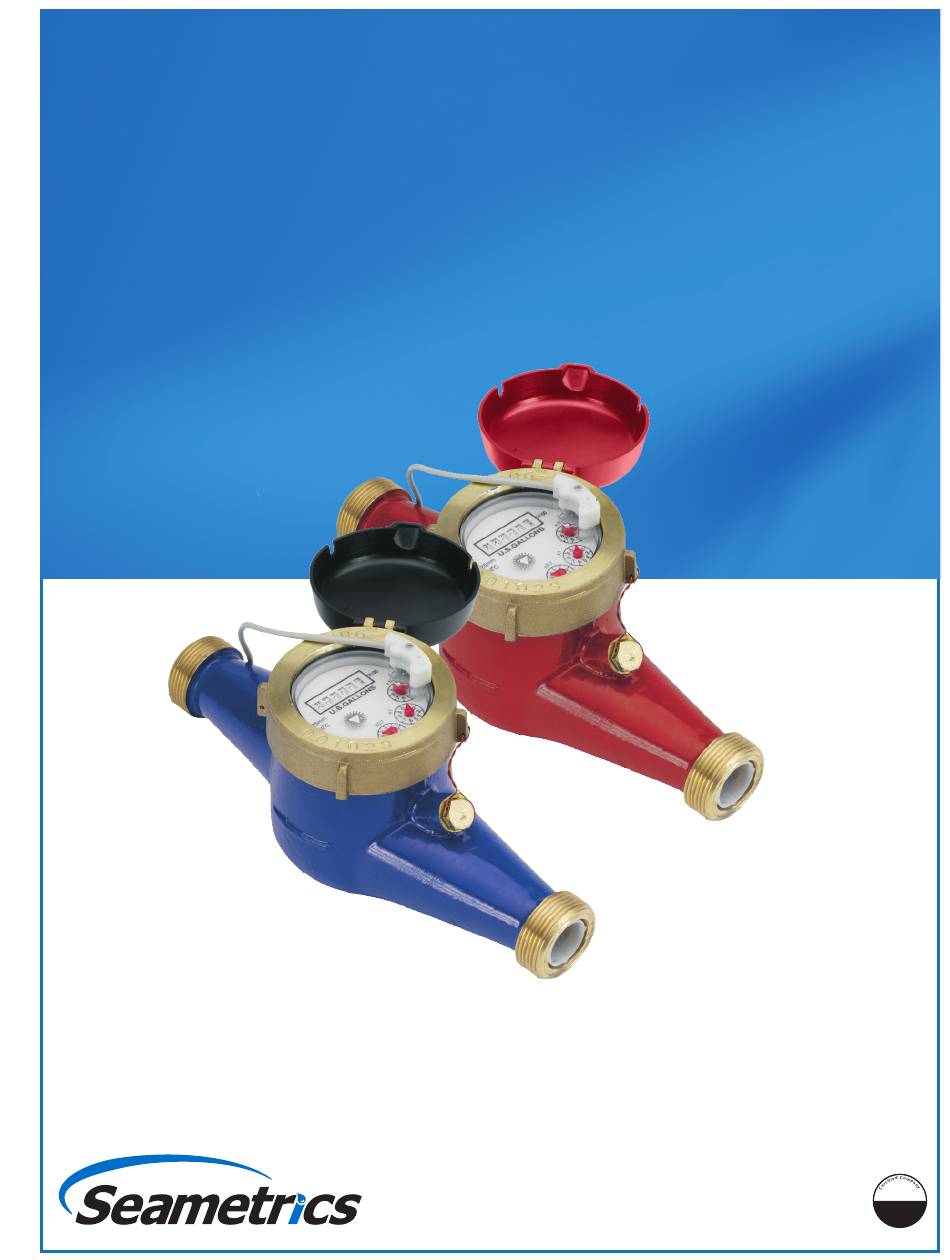

- Page 1 MJ/MJH-Series MJ/MJH-Series Pulse Meter Instructions Pulse Meter Instructions 9001...
-
Page 2: Table Of Contents
Moving the Magnetic Pointer ..........................Page 5 Setting Pulse Rate ...............................Page 5 Sample Set Up ................................Page 6 Special Configurations ...............................Page 6 Reading Meter ................................Page 6 Maintenance Inlet Strainer ..................................Page 6 Calibration ..................................Page 6 Internal Parts Replacement ............................Back Seametrics • 253.872.0284 Page 2 seametrics.com... -
Page 3: General Information
1 1/2” 2” Minimum 0.22 0.44 0.88 1.98 Maximum *Specifications subject to change • Please consult our website for current data (www.seametrics.com). ** Caution: Excessive flow can cause breakage. Do not exceed recommended maximums. Seametrics • 253.872.0284 Page 3 seametrics.com... -
Page 4: Pulse Rates
Connections MJE/MJHE and MJR/MJHR sensors are supplied with a color coded output cable (see diagrams below). Optional connectors can be ordered to plug directly into a Seametrics control or LMI metering pump. Diagram 1: Single Sensor Blue - (No Connection) -
Page 5: Pulse Output
4. Use the appropriate Connection Diagram (from NOTE! When removing the large meter nut, Column 3) to wire the sensor to your remote device Seametrics recommends using a 24” pipe (using diagrams at right). wrench. Larger or smaller pipe wrenches may damage the nut on units!! Col. -
Page 6: Sample Set Up
5 digit totalizer. on the x0.1 dial, as shown above. MAINTANENCE Seametrics recommends all service to be performed by Calibration an authorized distributor or the factory to maintain the Meters used for billing or billing exemption may integrity of the protective tamper-proof wire-and-seal. -
Page 7: Internal Parts Replacement
103223-150 103223-200 Register (liters) 103333-150 103333-200 Register (liters) 103223-150 103223-200 Internal Strainer 101044 101044 Internal Strainer 101381 101381 Tubular Strainer 101031 101032 Tubular Strainer 101384 101385 Register Gasket 102228 102228 Register Gasket 102228 102228 Seametrics • 253.872.0284 Page 7 seametrics.com... - Page 8 LIMITED WARRANTY POLICY The limited warranty set forth below is given by Seametrics, with respect to Seametrics brand products purchased in the United States of America. Seametrics warrants that products manufactured by Seametrics, when delivered to you in new condition in their original containers and properly installed, shall be free from defects in material and workmanship.
