Seametrics IP80 Series Instructions

General Information
The IP80 Series are impeller-type insertion meters de-
signed for use in pipe sizes 1/2" to 8". High-quality jewel
bearings and nickel-bound tungsten carbide shaft are
used for maximum life and extreme low friction. Bodies
are machined from solid rod for maximum precision. Low-
flow performance is superior. The rotation of the rotor is
detected by a non-drag Hall-effect sensor. Output is a
pulse-type square wave, which can be sent long dis-
tances (up to 2,000 feet) without a transmitter. This sig-
nal can be connected directly to SeaMetrics controls, as
well as PLC's, counters, and computer cards.
SeaMetrics IP meters are ideal for chemical proportion-
ing applications. If no display is required, a simple di-
vider such as the PD10 provides adjustable pump pac-
ing. For rate and total display, as well as pump pacing,
the FT415/420 flow indicator can be mounted directly
on the IP80 Series, or remotely on a wall or panel.
The IP80 Series require special fittings, since they are
not depth-adjustable as are the IP 100/200 series meters.
Installation in the fitting ensures correct depth placement
in the pipe. Fittings are available in PVC, brass, and
stainless steel. Sensors are available in brass, 316 stain-
less steel, PVC, and polypropylene. In plastic pipe
3"-8", use an IP82 sensor, which is 1.00" longer than the
IP81 to accommodate the larger fittings.

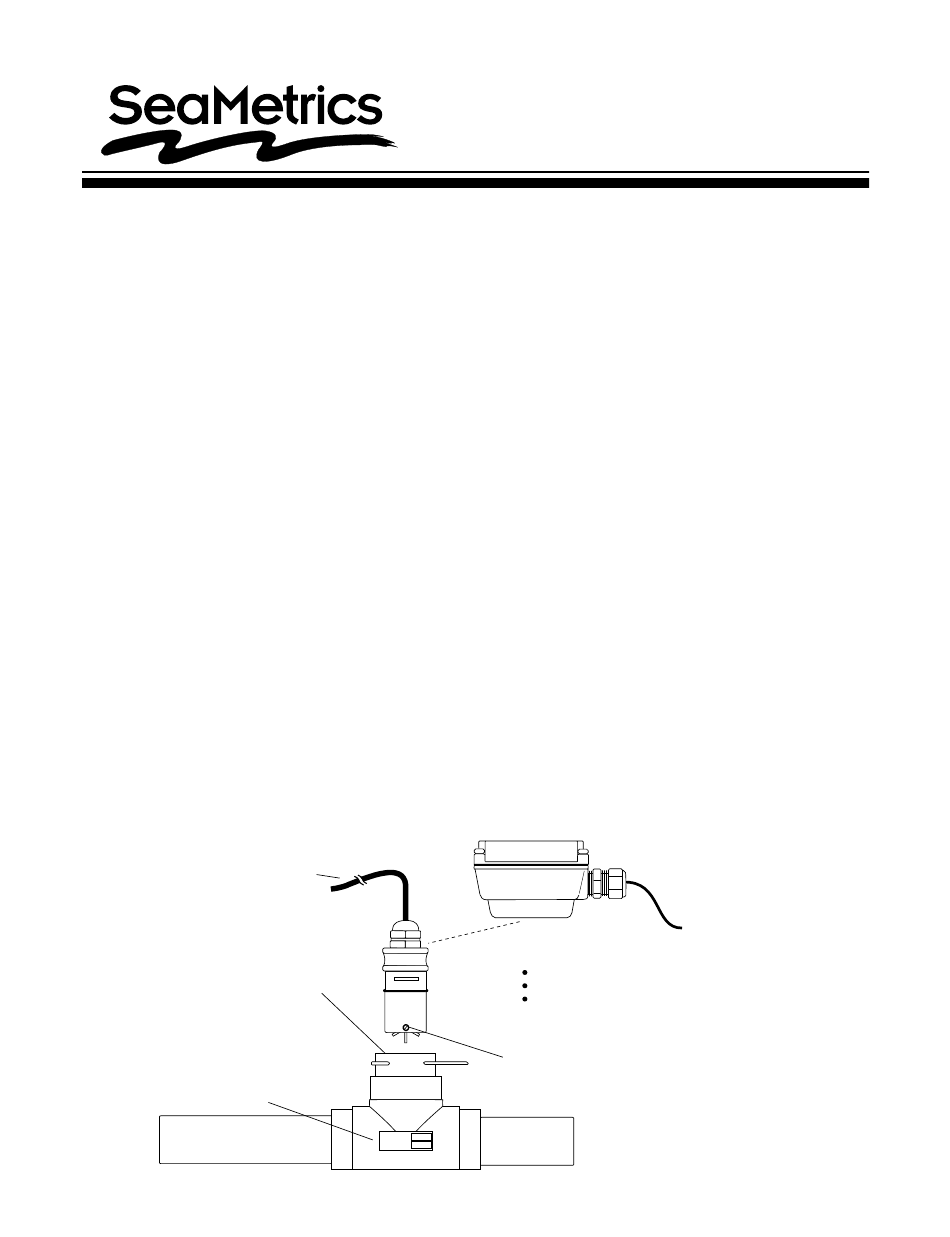

Features
High level (12 VDC)
signal can be sent
up to 2000+ feet
without transmitter
Fitting automatically
sets probe at correct
depth and orientation
Each fitting individually
calibrated and marked
with K-factor
(Pulses per Gallon)
Spec Tech Industrial 203 Vest Ave. Valley Park, MO 63088 Phone: 888 SPECTECH
Email: sales@spectechind.com
IP80 Series Flow Sensor
Instructions
Specifications
Sensor
Materials
Maximum Pressure
Maximum Temperature
Accuracy
Flow Range (GPM)
Min
Max
Cable
MODEL
SERIAL
www.spectechind.com
Hall Effect Sensor
Sensor Body
Rotor
Shaft
Bearings
PVC
Polypro
Brass
316 SS
PVC,Polypro
Brass, SS
1/2" 3/4" 1" 1-1/2"
0.28 0.5 0.8 1.9 3.1
28 50 80 190 314
* (see Pressure vs. Temperature chart)
Meter mount option
for electronics:
FT415/420 (Rate/Total)
AO55 (4-20 mA)
PD10 (Divider)
Jewel bearings for
superior low-flow
performance.
Threaded housings
allow for field repair
12 VDC current sink-
ing pulse
PVC, Polypro, Brass,
or 316 SS
Kynar
Nickel-bound
tungsten carbide,
ceramic optional
Ruby jewel
175 PSI (12 bar) at 75° *
175 PSI (12 bar) at 75° *
200 PSI (14 bar)
250 PSI (17 bar)
130° F (55° C)*
200° F (93° C)
1-1/2% FS
2" 3" 4" 6" 8"
6.9 12 27 47
691 1200 2700 4700
#22 AWG 3-con, 18'
LT-10610A
Page 1 of 4
