Installing A Chamber Type Modulevel - Magnetrol ES Modulevel Installation And Operating Manual

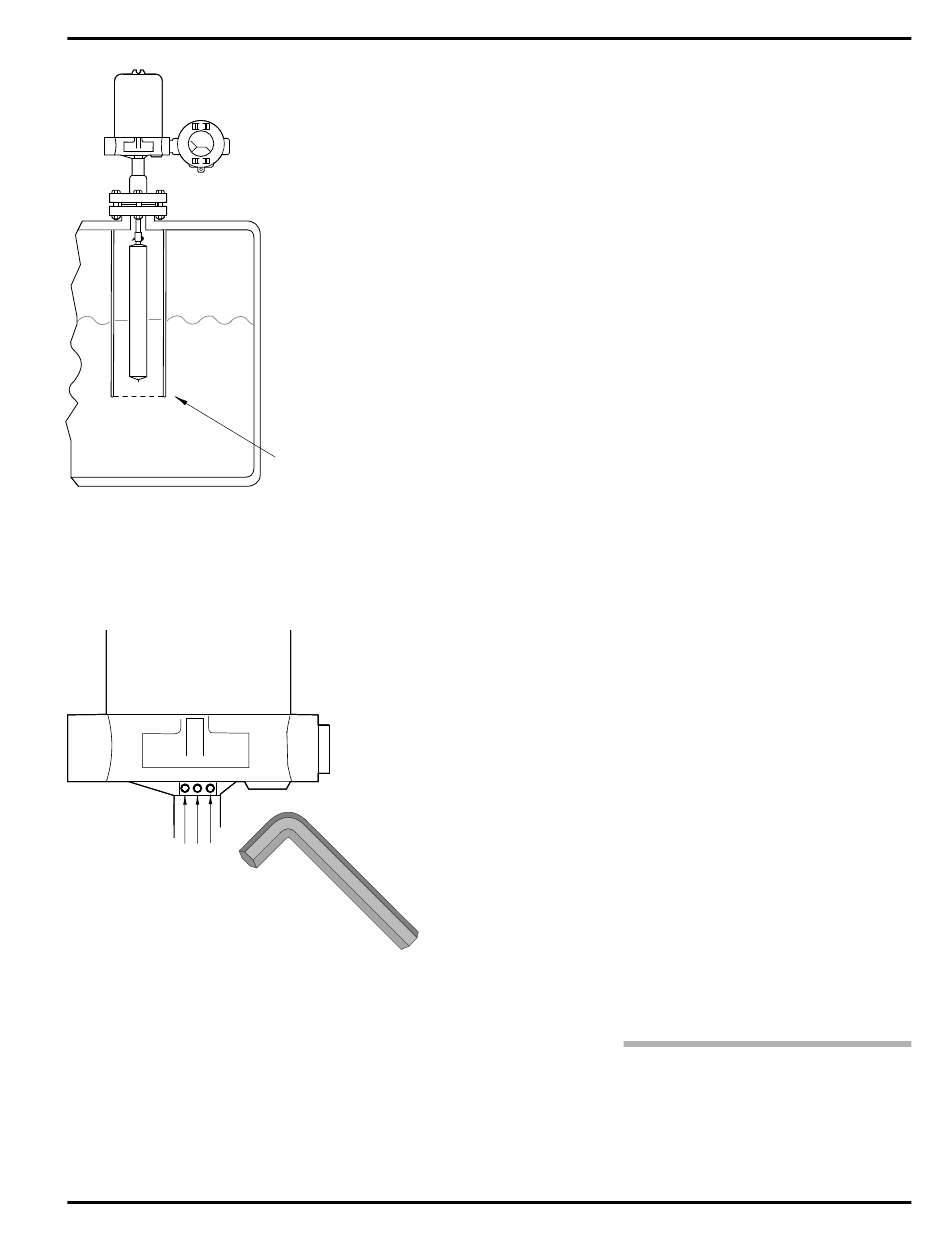

Figure 2
Tank Top Mounted
with Stilling Well
Always unlock for repositioning or removal
of head assembly and always relock,
after final positioning
Figure 3
Transmitter Head
Lock Screws
48-618 ES/EZ Modulevel Displacer Level Transmitter (Top Hat Assembly Design)
Note: The adjustable hanger assembly is used when the top
• A stilling well is installed for applications where continuous
agitation is present. The stilling well must be vertically level
so as not to restrict displacer movement.
See Figure 2 for a typical stilling well installation.
• The process temperature, pressure and specific gravity are
within the unit's specifications for installation.
See Specifications, Section 4.8.
To install:
1. Carefully place the displacer in the vessel. Align the gasket
Use stilling well in
on the flange.
case of turbluent
medium
2. Align the Modulevel flange with the flanged connection on
the vessel.
3. Make sure the flange gasket is seated properly. Install flange
bolts and nuts.
4. Tighten alternating flange bolts in a star pattern.
Caution: All Modulevels are shipped from the factory with the
5. Loosen the transmitter head lock screws (socket type) and
position conduit outlet in the desired direction.
Size 1/8"
See Figure 3.
6. Retighten lock screws.
Note:
1.4.2 Installing a Chamber Type Modulevel (E63, E64, E65,
E66, E53, and E55)
The chamber type Modulevel is mounted on the side of
the vessel with either a side/side or side/bottom connec-
tion, as furnished. Figure 4 on page 5 illustrates a typical
chamber type installation.
of the displacer and, therefore, the top of the measure-
ment range must be positioned in the vessel more
than 5" (127 mm) below the mounting flange in the
case of models 600# or less, or more than 9.31" below
the mounting flange on models 900# or greater. The
maximum hanger cable length is 8 feet.
enclosing tube tightened and the transmitter head
set screws locked to the enclosing tube. Failure to
loosen the set screws prior to repositioning the
supply and output connections may cause the
enclosing tube to loosen, resulting in the possible
leakage of the process liquid or vapor.
Since the transmitter head is rotatable through 360º,
it is important to make certain that the controller
locking screws are tight before making electrical
connections.
