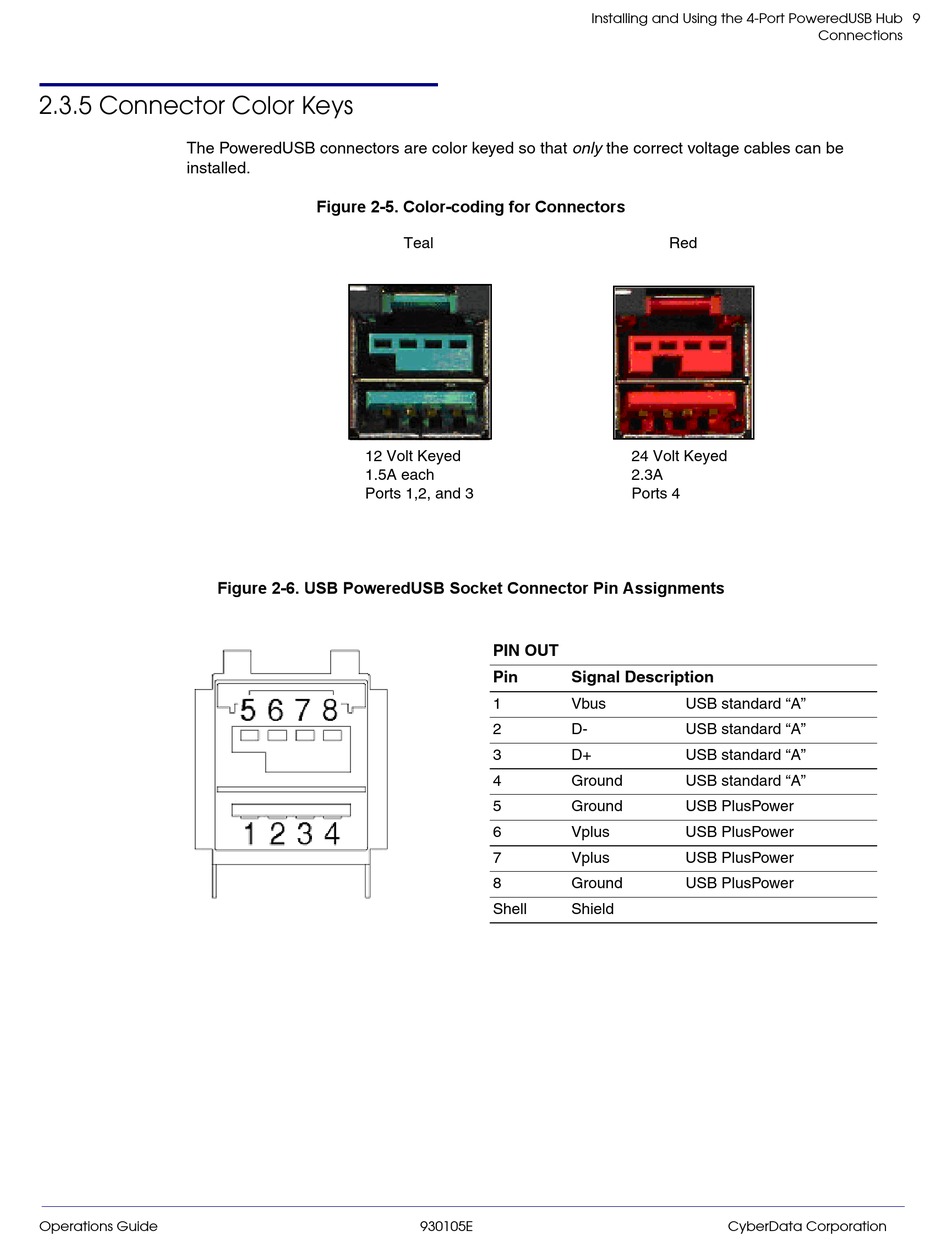

2.3.5 Connector Color Keys

The PoweredUSB connectors are color keyed so that only the correct voltage cables can be
installed.
Operations Guide
Figure 2-5. Color-coding for Connectors
12 Volt Keyed
1.5A each
Ports 1,2, and 3
Figure 2-6. USB PoweredUSB Socket Connector Pin Assignments
Teal
PIN OUT
Pin Signal Description
1 Vbus
2 D-
3 D+
4 Ground
5 Ground
6 Vplus
7 Vplus
8 Ground
Shell Shield
930105E
Installing and Using the 4-Port PoweredUSB Hub
Red
24 Volt Keyed
2.3A
Ports 4
USB standard "A"
USB standard "A"
USB standard "A"
USB standard "A"
USB PlusPower
USB PlusPower
USB PlusPower
USB PlusPower
